QUICK INSTALLATION GUIDE
QUICK INSTALLATION GUIDE
Follow next steps for the correct installation of this receiver.
STEP 1: OUTPUT VIDEO CONFIGURATION
In order to correctly visualise the reception signal on TV, you must confi gure the mode of the video
output. By pressing the [V-FORMAT] key you can confi gure the output format.
Options:
(480i / 480p
/ 576i / 576p / 720p_50 / 720p_60 / 1080i_25 / 1080i_30 / 1080p_24 / 1080p_25 / 1080p_30
/ 1080p_50 / 1080p_60).

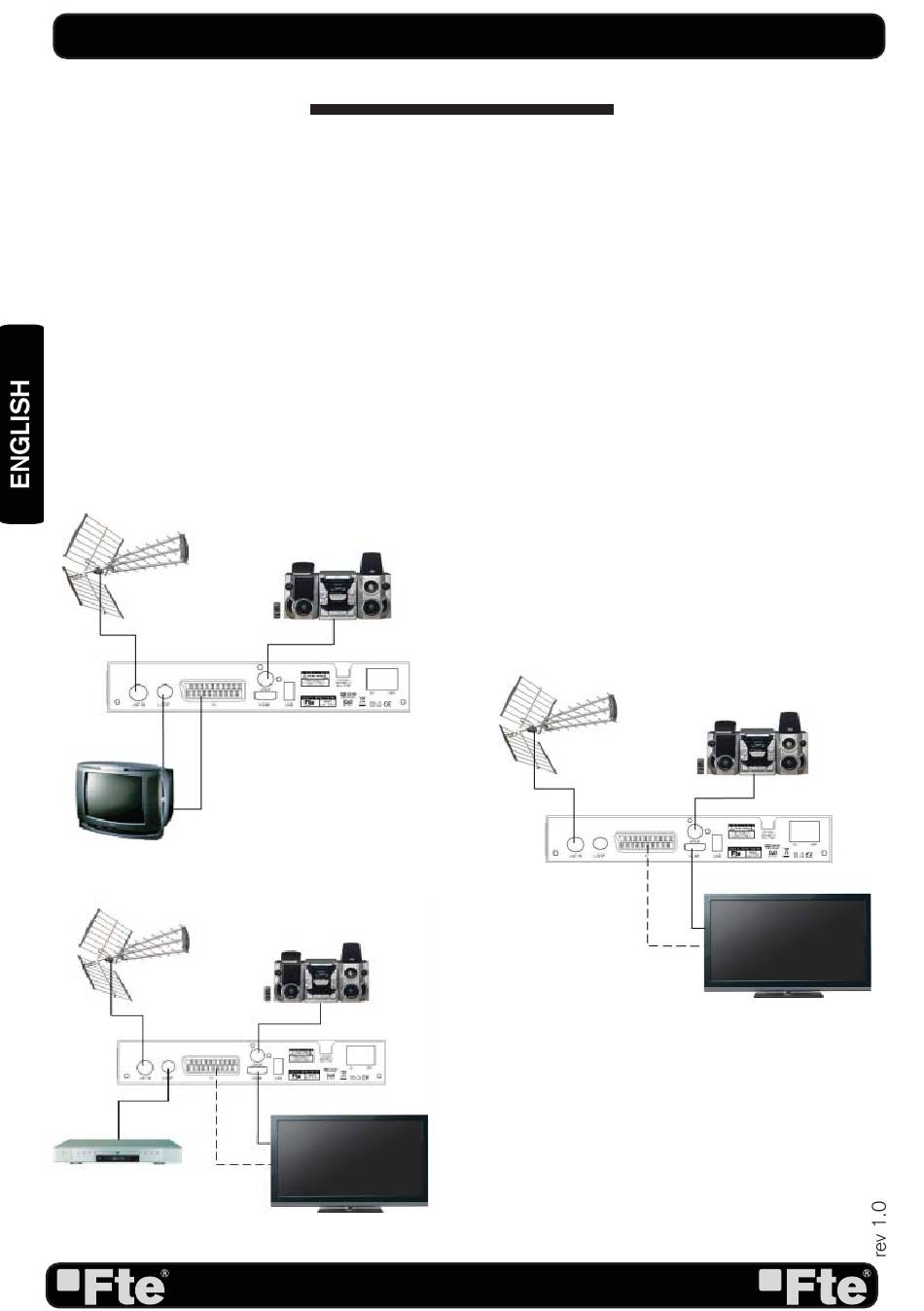

STEP 2: CONNECTIONS
Connect a coaxial cable from the output socket to the "Ant In" connector. Connect a coaxial cable from
the "Loop" connector at the receiver to your TV input connector as it is shown in Scheme1.
This receiver has not built in modulator so it has to be connected to the TV through a HDMI or SCART
cable.
EXAMPLE 1
EXAMPLE 2
EXAMPLE 3
PAG. 4
