Summary of Contents for FTE Maximal MAX T100 HD

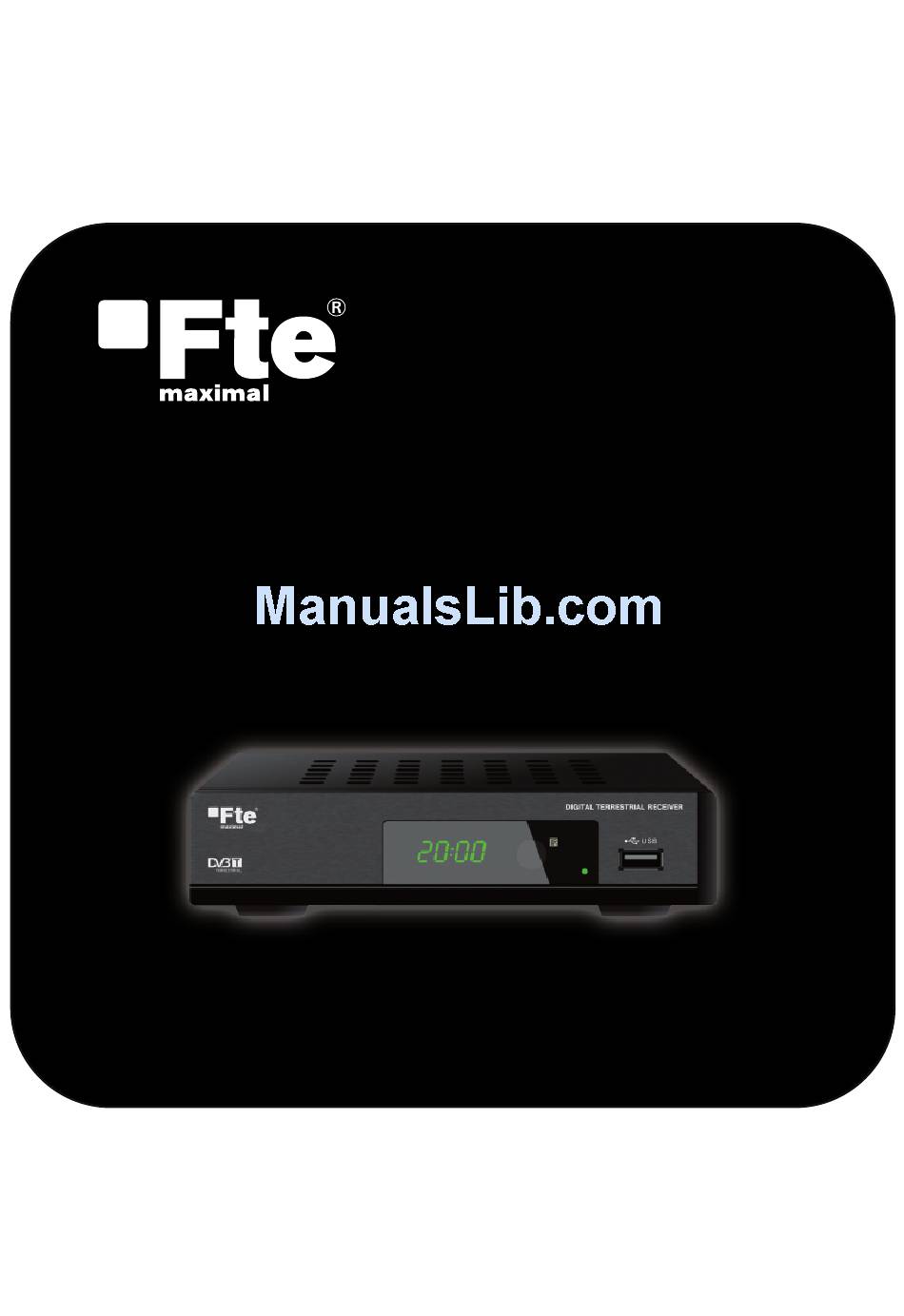

  • Page 1 MAX T100 HD...
  • Page 2 CONTENT RECEIVER BATTERIES X 2 REMOTE CONTROL QUICK INSTALLATION GUIDE PAG. 2...
  • Page 3 QUICK INSTALLATION GUIDE The lightning fl ash with The exclamation point Warning: To reduce the risk of electric shock, arrowhead symbol, within an within an equilateral triangle don’t open the cabinet. Refer servicing to equilateral triangle, is intended is intended to alert the user qualifi...
  • Page 4 QUICK INSTALLATION GUIDE In order to download the complete user’s guide and get more information about receivers, please visit the website http://receivers.ftemaximal.com QUICK INSTALLATION GUIDE Follow next steps for the correct installation of this receiver. STEP 1: CONNECTIONS Connect a coaxial cable from the output socket to the “RF IN” connector. Connect a coaxial cable from the “RF OUT”...
  • Page 5 QUICK INSTALLATION GUIDE STEP 2: OUTPUT VIDEO CONFIGURATION The HDMI output of receiver will start in 720p mode by default, This mode should be supported by your TV HDMI input. Please verify in your TV manual that the HDMI input supports this video mode.

  • Page 6: Edit Channel

    QUICK INSTALLATION GUIDE EDIT CHANNEL TV Channel List: This option shows the list of TV stored channels. Radio Channel List: This option shows the list of Radio stored channels. Delete All: This option deletes all TV and Radio stored channels. INSTALLATION DVBT Channel Scan: This option make a compete scan of only one Multiplex.
  • Page 7 QUICK INSTALLATION GUIDE TOOLS Information: This option shows the software information of the receiver Load Factory Default: If this option is selected, a reset of the receiver will be done and it will load the factory default values. S/W Upgrade by OTA: To update the receiver by OTA. S/W Upgrade by USB: To update the receiver by USB Remove USB device safely: Allows remove USB device of safety way.

  • Page 8: Table Of Contents

    INDEX 1. Remote control & panel description 1.1.Front panel description.................10 1.2.Rear panel description.................10 1.3.Remote control description................11 2. Hotkey 2.1.Standby......................12 2.2.PR+/PR-......................12 2.3.Vol+/Vol-......................12 2.4.Number......................12 2.5.TV/RADIO....................12 2.6.Channel list..................12 2.7.Audio......................12 2.8.EPG.......................12 2.9.Subtitles.......................13 2.10.EXIT......................13 2.11.Menu......................13 2.12.Mute......................13 2.13.Back......................13 2.14.Information....................13 2.15.Teletext......................13 2.16. Favourites....................13 2.17. Fast recording....................13 2.18. Timeshift....................14 2.19.
  • Page 9 INDEX 5. System setup 5.1.OSD language..................19 5.2.TV system....................20 5.3.Local time settings................20 5.4.Timer setting..................21 5.5.Parental lock..................21 5.6.OSD setting..................22 5.7.Favorite......................22 5.8.Other......................22 5.8.1. Antenna power.................22 5.8.2. Channel play type..............22 5.8.3. Beeper..................23 5.8.4. Auto Standby................23 6. Tools 6.1.Information.....................24 6.2.Load factory default..................24 6.3.Software upgrade by OTA.................24 6.4.Software upgrade by USB.................24 6.5.Remove USB device................25 7.

  • Page 10: Front Panel Description

    REMOTE CONTROL & PANEL DESCRIPTION 1. PANEL & REMOTE CONTROL DESCRIPTION 1.1. FRONT PANEL DESCRIPTION 1. DISPLAY: 4 Digits to display the program numbers. 2. Remote Sensor: Detects the infrared signals from the remote control unit. 3. STAND BY LED: Shows the state of the receiver 4.

  • Page 11: Remote Control Description

    REMOTE CONTROL & PANEL DESCRIPTION 1.3 REMOTE CONTROL DESCRIPTION 1. STANDBY: Switches receiver ON or in stand-by-mode. 2. MUTE: Switches audio on and off. 3. Numeric keys: For direct typing values and names. 4. EPG: Shows the EPG information. 5. AUDIO: Opens audio menu. 6.

  • Page 12: Pr+/Pr

    BASIC OPERATIONS 2. HOTKEY 2.1 STANDBY 1.Press [Power] button to switch from TV mode to Standby mode 2.In Standby mode press [Power] button again to switch back to TV mode. The last active channel will be showed. 3.To switch off the STB complete press the main power button.

  • Page 13: Subtitles

    BASIC OPERATIONS to come back to channel list. 5.With the key [Red], you will get new options that will allow you to move through the EPG on the most comfortable way, moving event by event, by sites or by days. 6.To close the EPG menu press [Exit].

  • Page 14: Timeshift

    BASIC OPERATIONS of the recording. If you press the Key [Exit], the recording will continue. 3.Press the key [Stop] again to end the recording manually, if you want to end the recording before the programmed length. 2.18. TIMESHIFT In order to activate this Timeshif option, please access to DVR confi...

  • Page 15: Channel 3.1 Tv Channel List

    CHANNEL 3.CHANNEL Press [Menu] in the TV mode to enter the main menu (OSD 1. Press [ ] to select the Channel item. 2. Press [OK] to enter the selected item. In the Channel menu (OSD 10): OSD 9 3. Press [ ] to select the wanted menu item.

  • Page 16: Move

    CHANNEL the channel will be skip while user change channel in the full screen. (OSD 14). 3.1.4 MOVE 1. Press number key[Yellow], next press [OK] over the channel you wish to move and a movement symbol will appear in the right side of the selected channel like above (OSD 15) 2.

  • Page 17: Radio Channel List

    CHANNEL 3.2 RADIO CHANNEL LIST Basically, the operation of “Radio Channel List” is same as “TV Channel List”, but there is one point different: In “Radio Channel List” mode, there is no video information, so it will always display Radio’s logo in the right side preview window. (OSD 20) 3.3.DELETE ALL CHANNELS For removing all channel list, press the button [OK] (OSD...

  • Page 18: Channel Scan

    INSTALLATION 4.INSTALLATION Press [Menu] in the TV mode to enter the main menu (OSD 22). 1. Press [ ] to select the Installation item. 2. Press [OK] to enter the selected item. In the Installation menu (OSD 23): 3. Press [ ] to select the wanted menu item.

  • Page 19: Osd Language

    SYSTEM SETUP 5. SYSTEM SETUP Press [Menu] in the TV mode to enter the main menu . 1. Press [ ] to select the System Setup item. 2. Press [OK] to enter the selected item. In the System Setup menu (OSD 27): 3.

  • Page 20: Tv System

    SYSTEM SETUP 5.2 TV SYSTEM When you enter to “TV System” menu, you will see the screen like below (OSD 30): 1. Display Mode is used to switch the display mode. You can select from By Source / By Native TV / 480i / 480p / 576i/ 576p / 720p_50 / 720p_60 / 1080i_25 / 1080i_30 / 1080p_50 / 1080p_60...

  • Page 21: Timer Setting

    SYSTEM SETUP 5.4 TIMER SETTING When you enter “Timer Setting”, you will see the window like OSD 32. You can press [ ] keys to set Timer number, and there are 8 timers in total. When you press [OK] key you will see a screen like beside (OSD 33): 1.

  • Page 22: Osd Setting

    SYSTEM SETUP directly. After you fi lled in 4 digital numbers, the highlight will auto skip to Confi rm Password and ask you to input the new password again. If the password is correct, the screen will show up a message of “Change password successfully”. After fi...

  • Page 23: Beeper

    SYSTEM SETUP 5.8.3. BEEPER From this option you will be able to activate the buzz on the scan menu relative to the level of the signal received. 5.8.4. AUTO STANDBY Auto Standby: This option will allow you to activate or deactivate the automatic Standby option (OSD 37).

  • Page 24: Information

    TOOLS 6.TOOLS Press [Menu] in the TV mode to enter the main menu (OSD 38). 1. Press [ ] to select the Tools item. 2. Press [OK] to enter the selected item. In the Tools menu (OSD 39): 3. Press [ ] to select the wanted menu item.
  • Page 25 TOOLS 2. Update fi le: Select with [ ] the name of the fi le to be loaded. 3. Select “Start” and press [OK]. An alert message appears indicating not to take out the memory device during the loadiing process. 4.

  • Page 26: Media Player

    REC & MEDIA 7. REC Press the key [Menu] on the remote control to go to the main menu (OSD 45). 1. Press the arrows on the remote control [ ] to select the option REC. 2. Press [Ok] to enter the submenu REC. 3.

  • Page 27: Adding A New File To The List

    REC & MEDIA 1. Press [Red button] in any fi le from a list in order to move it to the position you wish. 2. Press [Green button] on any fi le from one list to delete the fi le. 3.

  • Page 28: Audio Player

    REC & MEDIA 7.1.3.3. DELETE FILES 1. In order to delete one or more fi les, press the key [Yellow] over the fi le you wish to delete (if you want to delete several fi les, select them one by one). 2.

  • Page 29: How To Reproduce A Recording

    REC & MEDIA 7.1.7. HOW TO REPRODUCE A RECORDING If you want to reproduce a recording, you only have to select it and press the key [OK] (OSD 58). -[INFO]: It changes among the different ways of replay: random, list or single. 7.1.7.1.

  • Page 30: Pvr Configuration

    REC & MEDIA 2. Press the key [Blue] to assign space in the disk according to the action you wish to do (OSD 64). Options: - REC & TMS: It assigns half of the free space in the disk to making timeshift and the other half for making recordings.

  • Page 31: Technical Specifications

    TECHNICAL SPECIFICATIONS Video Decoding MPEG4 AVC/H.264 HP@L4, MPEG-2 Output PAL / NTSC Aspect ratio 4:3 PS, 4:3 LB, 16:9, Auto By Source / 480i / 576i Active pixel (RGB Scart) By Source / By Native / Active pixel (HDMI, CVBS Scart) 480i / 480p / 576i / 576p / 720p_50 / 720p_60 / 1080i_25 / 1080i_30 / 1080p_50 / 1080p_60 Output connector...
  • Page 32 PART OF THE DECLARATION OF CONFORMITY CE “WE , FTE MAXIMAL, DECLARE THAT THE PRODUCT MAX T100 HD IS IN CONFORMITY WITH FOLLOWING DIRECTIVES LOW VOLTAGE DIRECTIVE 2006/95/EC EMC DIRECTIVE 2004/108/EC” PAG. 32...
  • Page 33 ESPAÑA FRANCE ITALIA Mogoda, 110 16 ZAE Les Mouilles Via Edison, 29 Pol. Industrial Can Salvatella 74570 Groisy 42040 Calerno di Tel.: + 33 04 50688017 08210 Barberà del Vallès Sant’Ilario d’Enza (RE) Fax: + 33 04 50688468 Tel.: + 39 0522 909701 (Barcelona) España fte@ftemaximal.fr Fax.: + 39 0522 909748...
