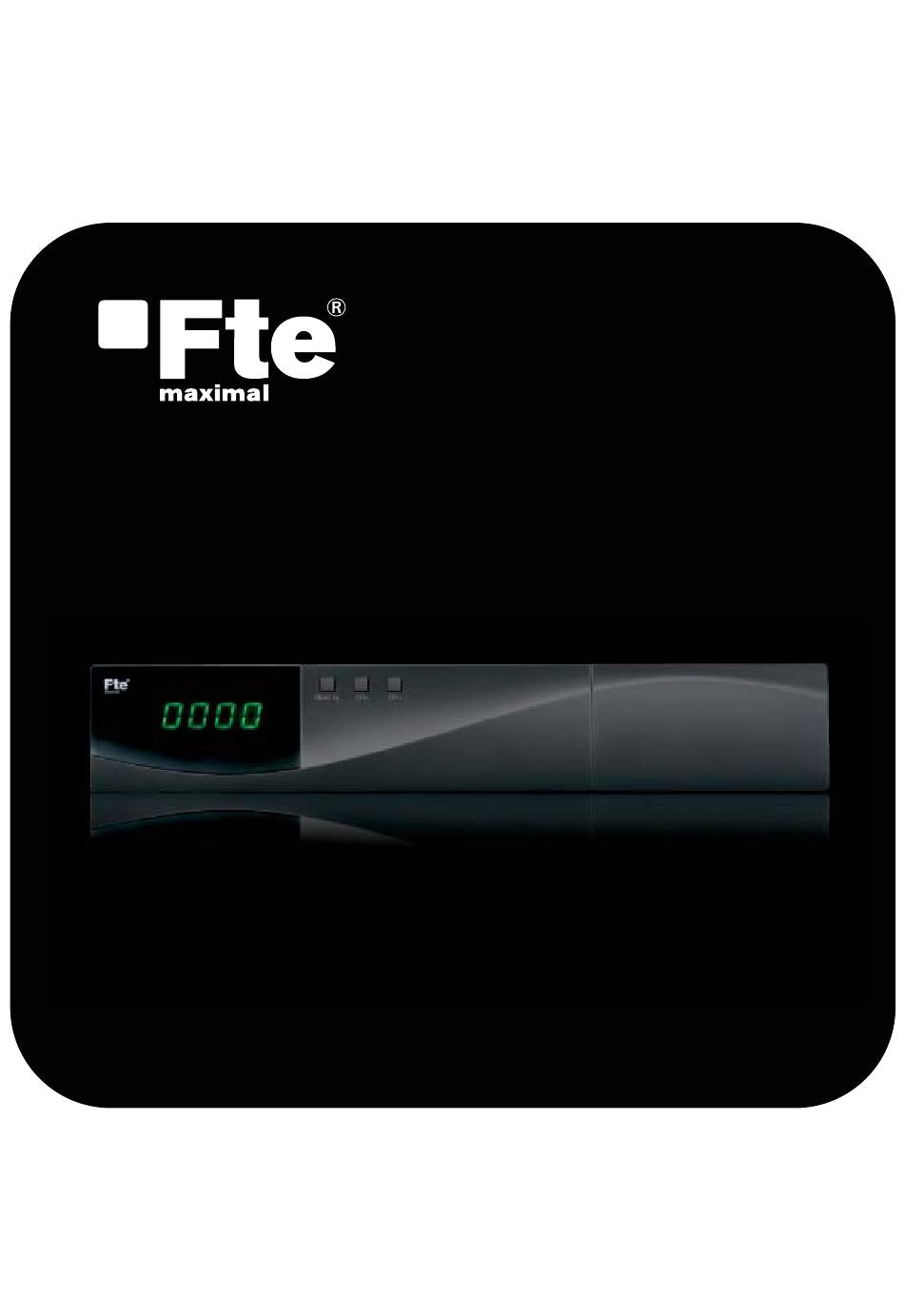

  • Page 1 MAX T115 HD+...

  • Page 2: Remote Control

    CONTENT RECEIVER BATTERIES X 2 REMOTE CONTROL USER’S MANUAL PAG. 2...
  • Page 3 QUICK INSTALLATION GUIDE Warning: To reduce the risk of electric The exclamation point within an The lightning fl ash with arrowhead shock, don’t open the cabinet. Refer equilateral triangle is intended to symbol, within an equilateral triangle, servicing to qualifi ed personnel only. alert the user to important operating is intended to alert the user to and maintenance (servicing).
  • Page 4 QUICK INSTALLATION GUIDE QUICK INSTALLATION GUIDE Follow next steps for the correct installation of this receiver. STEP 1: OUTPUT VIDEO CONFIGURATION In order to correctly visualise the reception signal on TV, you must confi gure the mode of the video output.
  • Page 5 QUICK INSTALLATION GUIDE STEP 3: BASIC CONFIGURATION OF THE RECEIVER The receiver includes an installation assistant that will help you to setup the different parameters. When the receiver is turned on at fi rst time (using the button at the rear panel of the receiver), the next menu is shown on the TV: In order to move through the different options of this menu, please use the keysof the remote control.

  • Page 6: Installation

    QUICK INSTALLATION GUIDE CHANNEL TV Channel List: This option shows the list of TV stored channels. Radio Channel List: This option shows the list of Radio stored channels. Delete All Channels: This option deletes all TV and Radio stored channels. INSTALLATION Auto Scan: This option make a full scan of all TV and Radio channels received.
  • Page 7 QUICK INSTALLATION GUIDE TOOLS Information: This option shows all the technical information for the receiver Load Factory Default: If this option is selected, a reset of the receiver will be done and it will load the factory default values. Software Upgrade: To update the receiver by OTA or USB Multimedia player: Allows reproduce music, image and video Remove USB device: Allows remove USB device of safety way.
  • Page 8 INDEX 1. Remote control & panel description 1.1.Front panel description.................10 1.2.Rear panel description.................10 1.3.Remote control description................11 2. Hotkey 2.1.Standby......................12 2.2.PR+/PR-......................12 2.3.Vol+/Vol-......................12 2.4.Number......................12 2.5.TV/RADIO....................12 2.6.Channel list..................12 2.7.Audio......................12 2.8.EPG.......................12 2.9.Subtitles.......................13 2.10.EXIT......................13 2.11.Menu......................13 2.12.Mute......................13 2.13.Back......................13 2.14.Information....................13 2.15.Teletext......................13 2.16. Favourites....................13 2.17. Fast recording....................13 2.18. Timeshift....................14 2.19.
  • Page 9 INDEX 5. System setup 5.1.OSD language..................20 5.2.TV system....................20 5.3.Local time settings................21 5.4.Timer setting..................21 5.5.Parental lock..................22 5.6.OSD setting..................23 5.7.Favorite......................23 5.8.Auto Standby....................23 6. Tools 6.1.Information.....................24 6.2.Load factory default..................24 6.3.Software upgrade by OTA.................24 6.4.Software upgrade by USB.................24 6.5.Media Player..................25 6.5.1.Adding a new file to the list..............26 6.5.2.

  • Page 10: Panel & Remote Control Description

    REMOTE CONTROL & PANEL DESCRIPTION 1. PANEL & REMOTE CONTROL DESCRIPTION 1.1. FRONT PANEL DESCRIPTION 1. IR-SENSOR: Reception sensor for the IR remote control signals. 2. DISPLAY: 4 Digits to display the program numbers. 3. STAND BY LED: Shows the state of the receiver. 4.
  • Page 11 REMOTE CONTROL & PANEL DESCRIPTION 1.3 REMOTE CONTROL DESCRIPTION 1. Standby: Switches receiver ON or in stand-by-mode. 2. V-Format: It changes the video output mode in Tv mode. (Mute): Switches audio on and off. 4. TV/AV: It activates/deactivates the visualization of the receiver in the Scart output.

  • Page 12: Basic Operations

    BASIC OPERATIONS 2. HOTKEY 2.1 STANDBY 1.Press [Power] button to switch from TV mode to Standby mode 2.In Standby mode press [Power] button again to switch back to TV mode. The last active channel will be showed. 3.To switch off the STB complete press the main power button.
  • Page 13 BASIC OPERATIONS to come back to channel list. 5.With the key [Red], you will get new options that will allow you to move through the EPG on the most comfortable way, moving event by event, by sites or by days. 6.To close the EPG menu press [Exit].

  • Page 14: Video Format

    BASIC OPERATIONS of the recording. If you press the Key [Exit], the recording will continue. 3.Press the key [Stop] again to end the recording manually, if you want to end the recording before the programmed length. 2.18. TIMESHIFT In order to activate this Timeshif option, please access to DVR confi...

  • Page 15: Tv Channel List

    CHANNEL 3.CHANNEL Press [Menu] in the TV mode to enter the main menu (OSD 10). 1. Press [ ] to select the Channel item. 2. Press [OK] to enter the selected item. In the Channel menu (OSD 11): OSD 10 3.
  • Page 16 CHANNEL the channel will be skip while user change channel in the full screen. (OSD 15). 3.1.4 MOVE 1. Press number key[Yellow], next press [OK] over the channel you wish to move and a movement symbol will appear in the right side of the selected channel like above (OSD 16) 2.

  • Page 17: Radio Channel List

    CHANNEL 3.2 RADIO CHANNEL LIST Basically, the operation of “Radio Channel List” is same as “TV Channel List”, but there is one point different: In “Radio Channel List” mode, there is no video information, so it will always display Radio’s logo in the right side preview window. (OSD 21) 3.3.DELETE ALL CHANNELS OSD 19...

  • Page 18: Channel Scan

    INSTALLATION 4.INSTALLATION Press [Menu] in the TV mode to enter the main menu (OSD 23). 1. Press [ ] to select the Installation item. 2. Press [OK] to enter the selected item. In the Installation menu (OSD 24): 3. Press [ ] to select the wanted menu item.
  • Page 19 INSTALLATION 4.4 LCN This option makes an automatic ordering of the channels after a search. Before activating this option please verify that the function LCN (Logical channel number) is available in your region (OSD 28). OSD 27 OSD 28 PAG. 19...

  • Page 20: System Setup

    SYSTEM SETUP 5. SYSTEM SETUP Press [Menu] in the TV mode to enter the main menu . 1. Press [ ] to select the System Setup item. 2. Press [OK] to enter the selected item. In the System Setup menu (OSD 29): 3.

  • Page 21: Local Time Settings

    SYSTEM SETUP 60 / 1080i_25 / 1080i_30 / 1080p_24 / 1080p_25 / 1080p_30 / 1080p_50 / 1080p_60 in YUV mode and 480i / 576i in RGB mode. Press to select the desired mode. 2. Aspect Mode is used for switching the screen aspect ratio mode.

  • Page 22: Parental Lock

    SYSTEM SETUP 3. Timer Type: You can choose between “DVR Recorder”/ “Radio Recorder” (so you can program a recording of a TV or a Radio channel), “Reproduce Channel” / “Reproduce Radio” (that way, you will assign the alarm function to a concrete TV or Radio channel) 4.

  • Page 23: Osd Setting

    SYSTEM SETUP 5.6. OSD SETTING When you input to “OSD Setting” menu, you will see a screen like below (OSD 37): 1. OSD Timeout: If you confi gure this option you will be able to change OSD time of information of the channel that is tuned in every moment.
  • Page 24 TOOLS 6.TOOLS Press [Menu] in the TV mode to enter the main menu (OSD 39). 1. Press [ ] to select the Tools item. 2. Press [OK] to enter the selected item. In the Tools menu (OSD 40): 3. Press [ ] to select the wanted menu item.

  • Page 25: Media Player

    TOOLS root path of your USB device. 1. Upgrade mode: Select with [ ] , the mode of upgrading. 2. Update fi le: Select with [ ] the name of the fi le to be loaded. 3. Select “Start” and press [OK]. An alert message appears indicating not to take out the memory device during the loadiing process.

  • Page 26: Configure The Slide Show

    TOOLS Press [Menu] button to Exit. - PLAYLIST These lists are created adding the fi les you want to the previous lists. You can create 2 lists: - Picture List - Music List In order to open the play list, please press [yellow button] and OSD 45 select which of the two list you wish to open (OSD 45).

  • Page 27: Safely Remove Storage Device

    TOOLS reproduction of the images will start in slide show way. 3. You can rotate the picture with the buttons [ ]. (OSD 6.5.5. SORT FILE 1. Press the [FIND] key to open the Sort window (OSD 49). Press [ ] to select and [OK] to confi...
  • Page 28 GAMES 7.GAMES When you enter “Game” menu (OSD 51), you will see two games including Othello and Sudoku. 7.1 OTHELLO 1. Moving highlight to “Setup” and press [Left/Right] keys to select the game level (degree of diffi culty) (OSD 53). 2.

  • Page 29: Record Management

    8. REC Press the key [Menu] on the remote control to go to the main menu (OSD 55). 1. Press the arrows on the remote control [ ] to select the option REC. 2. Press [Ok] to enter the submenu REC. 3.

  • Page 30: How To Delete A Recording

    8.1.4. HOW TO DELETE A RECORDING 1. To delete one or more recordings, press the [Blue] key on the recording you want to delete (if you want to delete several recordings, select them one by one). 2. A mark will appear on the name of the channel (OSD 61). 3.

  • Page 31: Jump Step Value

    recordings. 5. The “Standby after recording” option allows the receiver to switch to Standby mode once the Programmed Recording is fi nished. 8.5. JUMP STEP VALUE With this option you can settle the jump marks forward and reward (OSD 66). OSD 65 On a current reproduction, press the keys [|<<] or [ >>|] to make a jump of a certain period of time on the reproduction.

  • Page 32: Technical Specifications

    TECHNICAL SPECIFICATIONS Video Decoding MPEG4 AVC/H.264 HP@L4, MPEG-2 Output Aspect ratio 4:3 PS, 4:3 LB, 16:9, Auto Active pixel (Scart) 480i / 576i Active pixel (HDMI) 480i / 480p / 576i / 576p / 720p_50 / 720p_60 / 1080i_25 / 1080i_30 / 1080p_24 / 1080p_25 / 1080p_30 / 1080p_50 / 1080p_60 Output connector...
  • Page 33 PART OF THE DECLARATION OF CONFORMITY CE “WE , FTE MAXIMAL, DECLARE THAT THE PRODUCT MAX T115 HD+ IS IN CONFORMITY WITH FOLLOWING DIRECTIVES LOW VOLTAGE DIRECTIVE 2006/95/EC EMC DIRECTIVE 2004/108/EC” PAG. 33...
