Summary of Contents for Martec MLXR3542MS

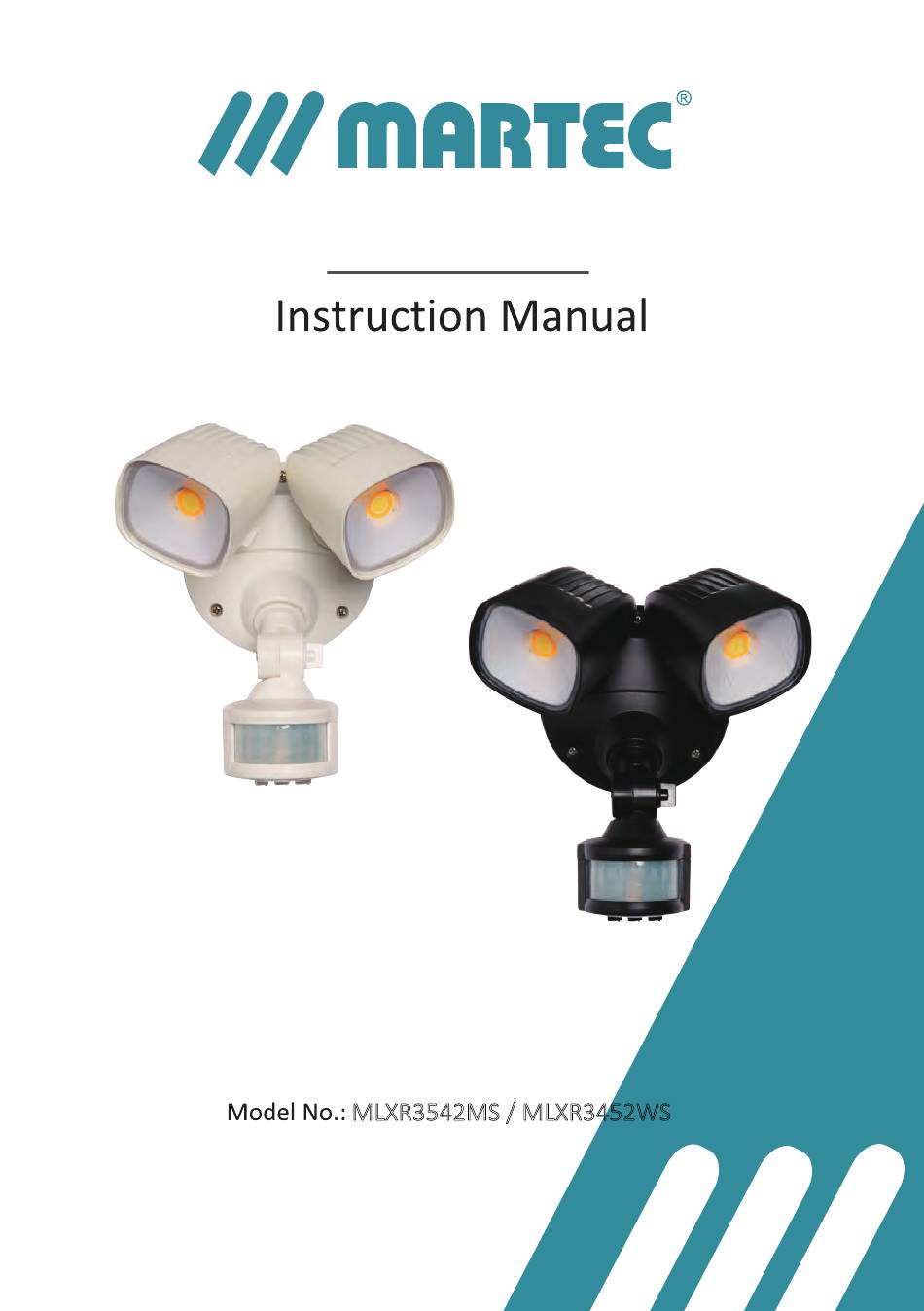

- Page 1 RANGER 24W SECURITY LIGHT LED TRICOLOUR DOUBLE HEAD MLXR3542MS / MLXR3452WS...
-
Page 2: Table Of Contents
Contents Warranty Page General Information Warnings Installation Instructions Motion Sensor Control Settings Cleaning and Maintenance Troubleshooting Product Disposal www.martecaustralia.com.au | 02 8778 7500 | sales@martecltd.com.au Page 2... - Page 3 24W SECURITY LIGHT LED TRICOLOUR DOUBLE HEAD 2 Year Replacement Warranty IMPORTANT PRODUCT INFORMATION YEAR REPLACEMENT WARRANTY...
-
Page 4: General Information
General Information Congratulations on choosing to buy a Martec product. All products brought to you by Martec are manufactured to the highest standards of performance and safety, and, as part of our philosophy of customer service and satisfaction, are backed by our warranty. -
Page 5: Warnings
Warnings • Do not direct the heads upwards above horizontal. • Always operate the sensor with sensor knobs facing downwards. • • This is an outdoor domestic product and should not be used for commercial, trade or industrial purposes. • To avoid false activation, the sensor should be directed away from heat sources such as •... - Page 6 Main body Sensor lens Sensor time control Sensor sensitivity control Sensor Lux control Front screws Wall mount screws Model No.: MLXR3542MS / MLXR3452WS Material:Die cast + PC Color: Black or white Voltage:220-240VAC~50Hz LED : 2x26W bridgeLux chip, 3000K-5000K Output lumen : 5000K - 2200lm;...
-
Page 7: Installation Instructions
Installation Instructions Introduction • Do not direct the heads upwards above horizontal. • Always operate the sensor with sensor knobs facing downwards. The twin head security light with sensor continuously scans the detection area and switches the light ‘ON’ when it detects movement. - Page 8 Product Installation NOTE: This product must be installed by a licensed electrician. NOTE: For best performance install at a height between 2 and 2.5 metres. Ensure the Mains Supply is switched ‘OFF’ . wired to its own wall switch. Remove the mounting plate ‘A’ from light body ‘B’ by unscrewing the front screws ‘C’ . Drill two holes in the wall using the mounting holes ‘D’...
-
Page 9: Motion Sensor Control Settings
Motion Sensor Settings The PIR motion sensor has three adjusting knobs: SENSITIVITY, TIME and LUX. SENS (Sensitivity Adjustment) • The sensitivity can be increased by turning the knob towards (+) and decreased by turning the knob towards (–). • Note: temperature. - Page 10 MANUAL OVERRIDE and OFF automatically. SETTING THE FITTING INTO ‘MANUAL MODE’ • sensor is disabled. • Turn the wall switch OFF then turn it back ON twice within 3 seconds. 2 times Wall switch action: • IMPORTANT NOTE: If the wall switch action is done too fast (e.g within 1 second) or too slow ( e.g 3 second +) SETTING THE FITTING BACK INTO ‘AUTO MODE’...
-
Page 11: Cleaning And Maintenance
Cleaning and Maintenance with a soft cloth approximately every 3 months. Do not use chemicals. Troubleshooting PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION Light does not switch ON 1. NO mains power. Check connections, fuses and switches. when movement is present 2. Sensor positioned in wrong direction. Readjust/redirect the sensor. - Page 13 2 YEAR REPLACEMENT WARRANTY FORM...
