Martec Fortress PRO Series Installation Manual

F o r t r e s s P r o S e r i e s L E D S e c u r i t y l i g h t I n s t a l l a t i o n G u i d e
Thanks for choosing our Fortress Pro series LED Security light.
We strongly recommend that you read this manual carefully before installation.

Model Parameter:-

MLXFP3451M 18W Single head Security light
MLXFP3451MS 18W Single head Security light with sensor
MLXFP3452M 36W Twin head Security light
MLXFP3452MS 36W Twin head Security light with sensor

Part List:

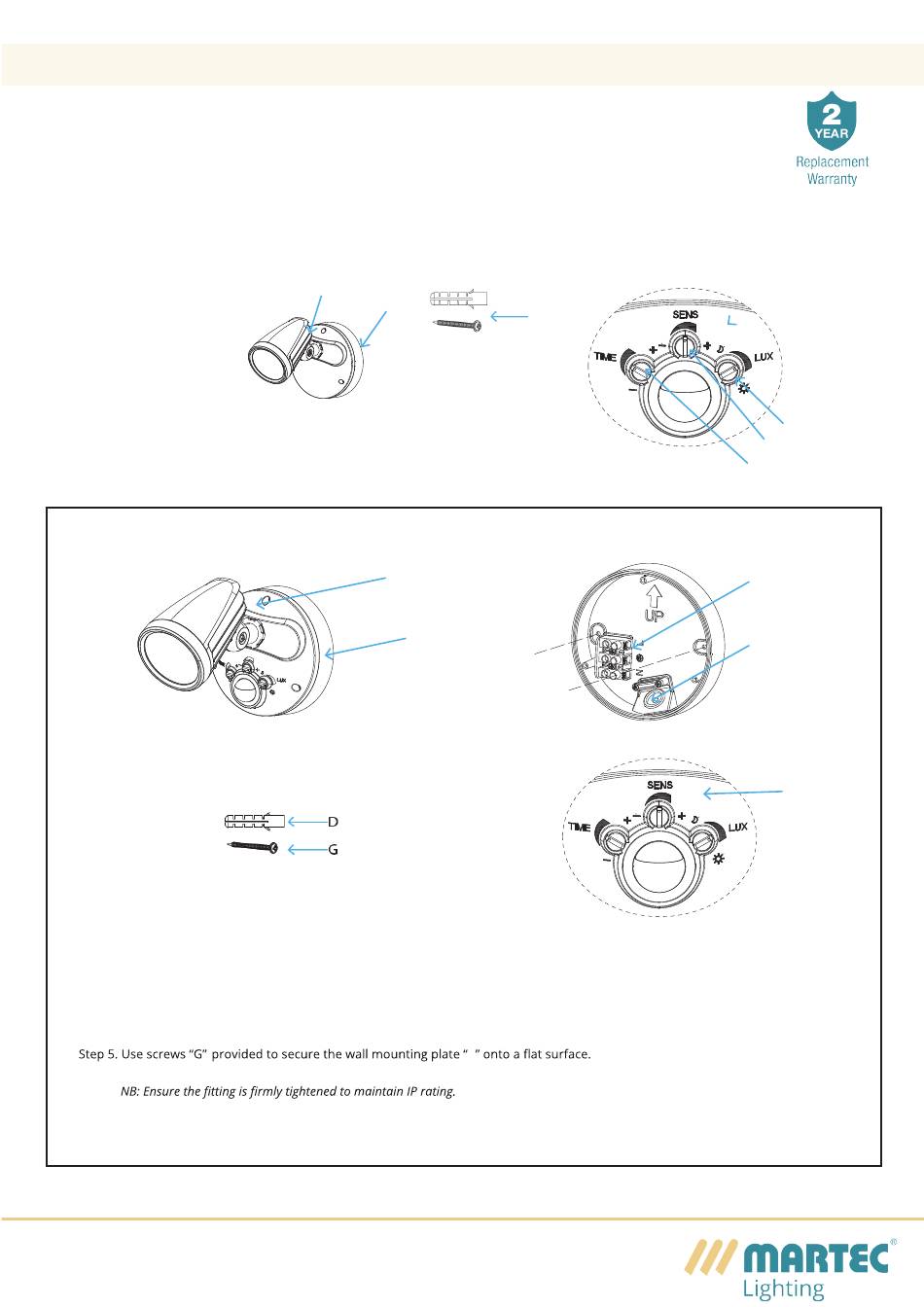

1. Light body
2. wall mount plate
3. wall mount kit
4. Sensor Lux setting
5. Sensor sensitivity setting
6. Sensor time setting

How to Assemble

Step 1. Switch OFF the mains supply
Step 2. take the wall mount plate "B" off the light body"A" by unscrewing the screw at front.
Step 3. Use the wall mounting plate "B" as a template to drill two holes in the wall , then place the dowel"D" into the holes.
Step 4. Feed mains supply through the sealing ring"C" and connect live "L" , neutral "N" and Earth "E" wires to the terminal block "E".
Step 6. Refit the light body back on and fix it by using the screw taken before.
Step 7. Switch ON the mains supply and turn the security light light on.
Step 8. For models with sensor, set the sensor to your desire state by using the setting knob "F".
