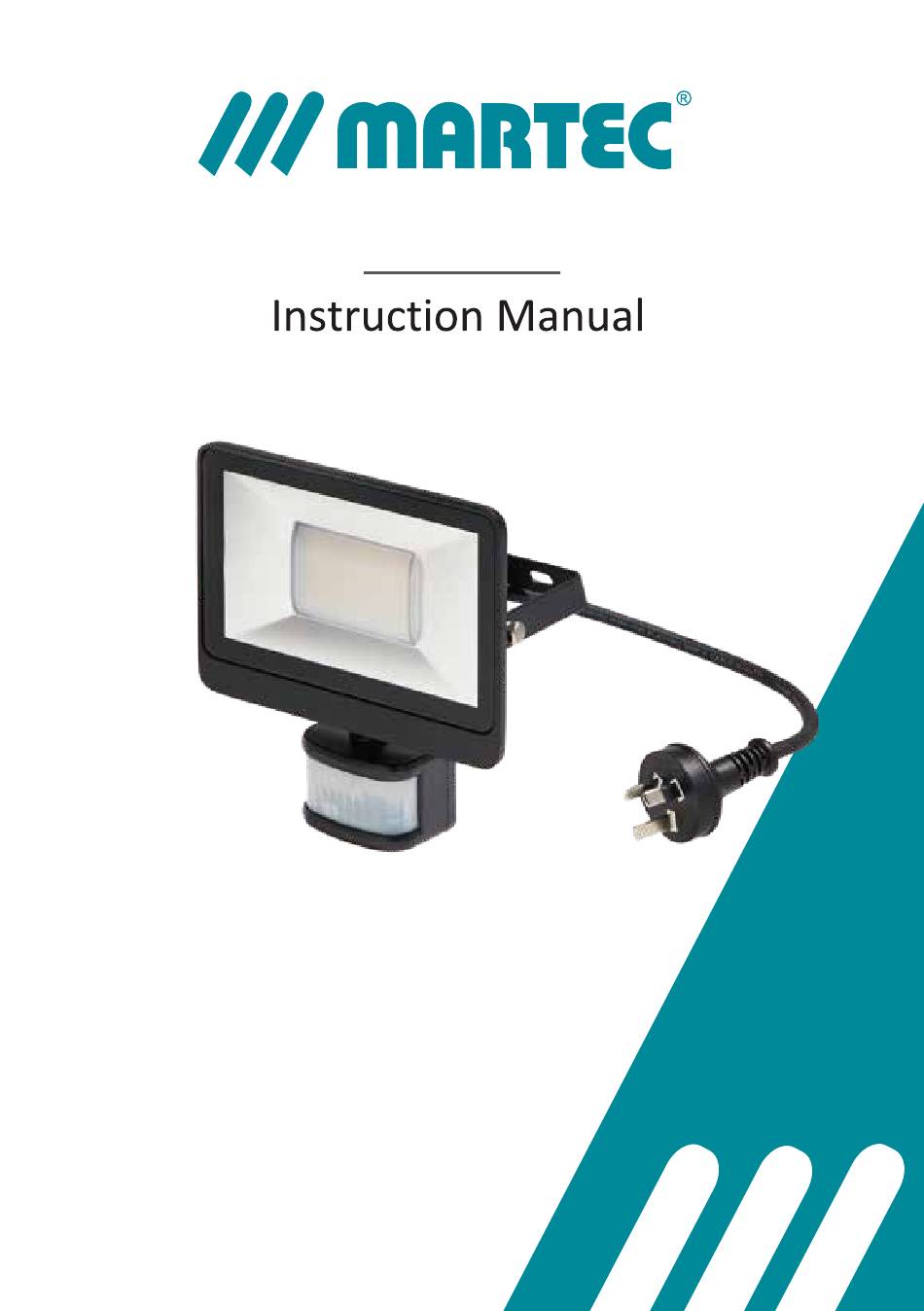

- Page 1 GUARD 20W WALL MOUNT TRICOLOUR FLOODLIGHT Model No.: MLXG34520MS...
- Page 2 20W WALL MOUNT TRICOLOUR FLOODLIGHT IMPORTANT PRODUCT INFORMATION YEAR REPLACEMENT WARRANTY...
- Page 3 Parts List Light body Wall mount bracket Tricolour switch Glass cover Cable Cable plug Sensor lens Sensor Time control Sensor sensitivity control 10. Sensor Lux control 10. Wall mount screws LED Floodlight 20 Watt with PIR sensor Tricolour aluminium body + glass lamp cover + stainless steel bracket Color: Black TIME SENS LUX Voltage: 220-240VAC~50/60Hz...
- Page 4 Product Installation NOTE: For best performance install at a height between 2 and 2.5 metres. Ensure the Mains Supply is switched ‘OFF’ . wired to its own wall switch. Adjust the wall mount bracket . Drill two holes in the wall using the mounting holes ‘B’ on the wall mount bracket as a template. Note: exercise caution to avoid drilling into existing electrical wiring.
- Page 5 Motion Sensor Settings The PIR motion sensor has three adjusting knobs: SENSITIVITY, TIME and LUX. SENS (Sensitivity Adjustment) • The sensitivity can be increased by turning the knob towards (+) and decreased by turning the knob towards (–). TIME SENS LUX •...
- Page 6 On the back of the LED light body, there is Tricolour switch which allows you to switch the colour temperature of the light among 30000K (WW), 4000K (NW), 5000K (CW).
- Page 7 (For Warranty Conditions please refer to the Martec Website for Warranty Terms and Conditions)
