Summary of Contents for Martec Patrol MLXP34520MS

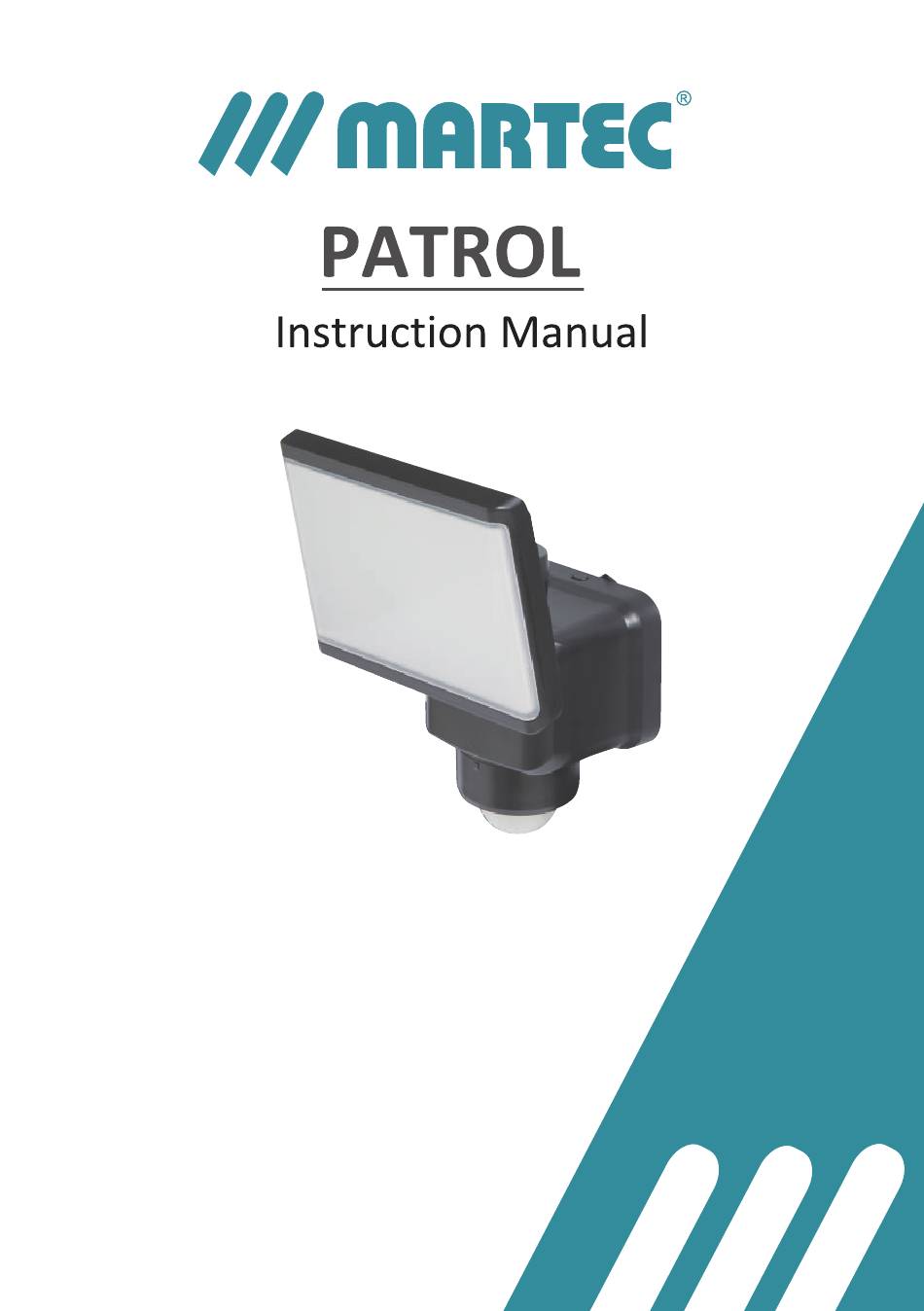

- Page 1 20W TRICOLOUR LED SECURITY LIGHT WITH PIR SENSOR Model No.: MLXP34520MS...
-
Page 2: Table Of Contents
Contents Warranty Page General Information Warnings Installation Instructions Motion Sensor Control Settings Cleaning and Maintenance Troubleshooting Product Disposal www.martecaustralia.com.au | 02 8778 7500 | sales@martecltd.com.au Page 2... - Page 3 20W TRICOLOUR LED SECUTIRY LIGHT WITH PIR SENSOR IMPORTANT PRODUCT INFORMATION YEAR REPLACEMENT WARRANTY...
-
Page 4: General Information
General Information Congratulations on choosing to buy a Martec product. All products brought to you by Martec are manufactured to the highest standards of performance and safety, and, as part of our philosophy of customer service and satisfaction, are backed by our warranty. -
Page 5: Warnings
Warnings • • This is an outdoor domestic product and should not be used for commercial, trade or industrial purposes. • To avoid false activation, the sensor should be directed away from heat sources such as • • Do not install on surfaces which can move or vibrate. •... - Page 6 Parts List Light head Light head turning joint Main Body Wall mount plate knob Wall mount plate Sensor Lens Sensor time control Sensor sensitivity control Sensor Lux control 10. Wall mount screw Model No.: MLXP34520MS Material: Aluminium + Plastic Voltage: 220-240V~ 50/60Hz Light Source:40x0.5W LED Color temperature: 3000 - 5000K Lumen: 3000K -- 1600lm...
-
Page 7: Installation Instructions
Installation Instructions Introduction The with sensor continuously scans the detection area and switches the light ‘ON’ when it detects movement. This means that whenever movement is detected within the range of the sensor the light will be switched ‘ON’ automatically to illuminate pathways, steps, patios, porches, backyards or areas around the home. While there is movement within the detection range the light will stay ‘ON’... - Page 8 Product Installation NOTE: This product must be installed by a licensed electrician. NOTE: For best performance install at a height between 2 and 2.5 metres. Ensure the Mains Supply is switched ‘OFF’ . wired to its own wall switch. Remove the mounting plate ‘A’ from light body ‘B’ by unscrewing the wall mount plate screw ‘C’and pressing the wall mount plate knob ‘D’.
-
Page 9: Motion Sensor Control Settings
Motion Sensor Settings The PIR motion sensor has three adjusting knobs: SENSITIVITY, TIME and LUX. SENS (Sensitivity Adjustment) • The sensitivity can be increased by turning the knob towards (+) and decreased by turning the knob towards (–). • Note: temperature. - Page 10 MANUAL OVERRIDE and OFF automatically. SETTING THE FITTING INTO ‘MANUAL MODE’ • sensor is disabled. • Turn the wall switch OFF then turn it back ON twice within 3 seconds. 2 times Wall switch action: • IMPORTANT NOTE: If the wall switch action is done too fast (e.g within 1 second) or too slow ( e.g 3 second +) SETTING THE FITTING BACK INTO ‘AUTO MODE’...
-
Page 11: Cleaning And Maintenance
Cleaning and Maintenance with a soft cloth approximately every 3 months. Do not use chemicals. Troubleshooting PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTION Light does not switch ON 1. NO mains power. Check connections, fuses and switches. when movement is present 2. Sensor positioned in wrong direction. Readjust/redirect the sensor.
