Martec OPAL Series Installation Manual

O P A L S e r i e s L E D F l o o d l i g h t I n s t a l l a t i o n G u i d e
Thanks for choosing our OPAL series LED Floodlight.
We strongly recommend that you read this manual carefully before installation.

Model Parameter:-

MLXO34520M 20W Floodlight Tricolour Black;
MLXO34530M 30W Floodlight Tricolour Black;
MLXO34550M 50W Floodlight Tricolour Black;
MLXO34550MS 50W Floodlight Tricolour with sensor Black;
MLXO345100M 100W Floodlight Tricolour Black;
MLXO345150M 150W Floodlight Tricolour Black;
MLXO345200M 200W Floodlight Tricolour Black;

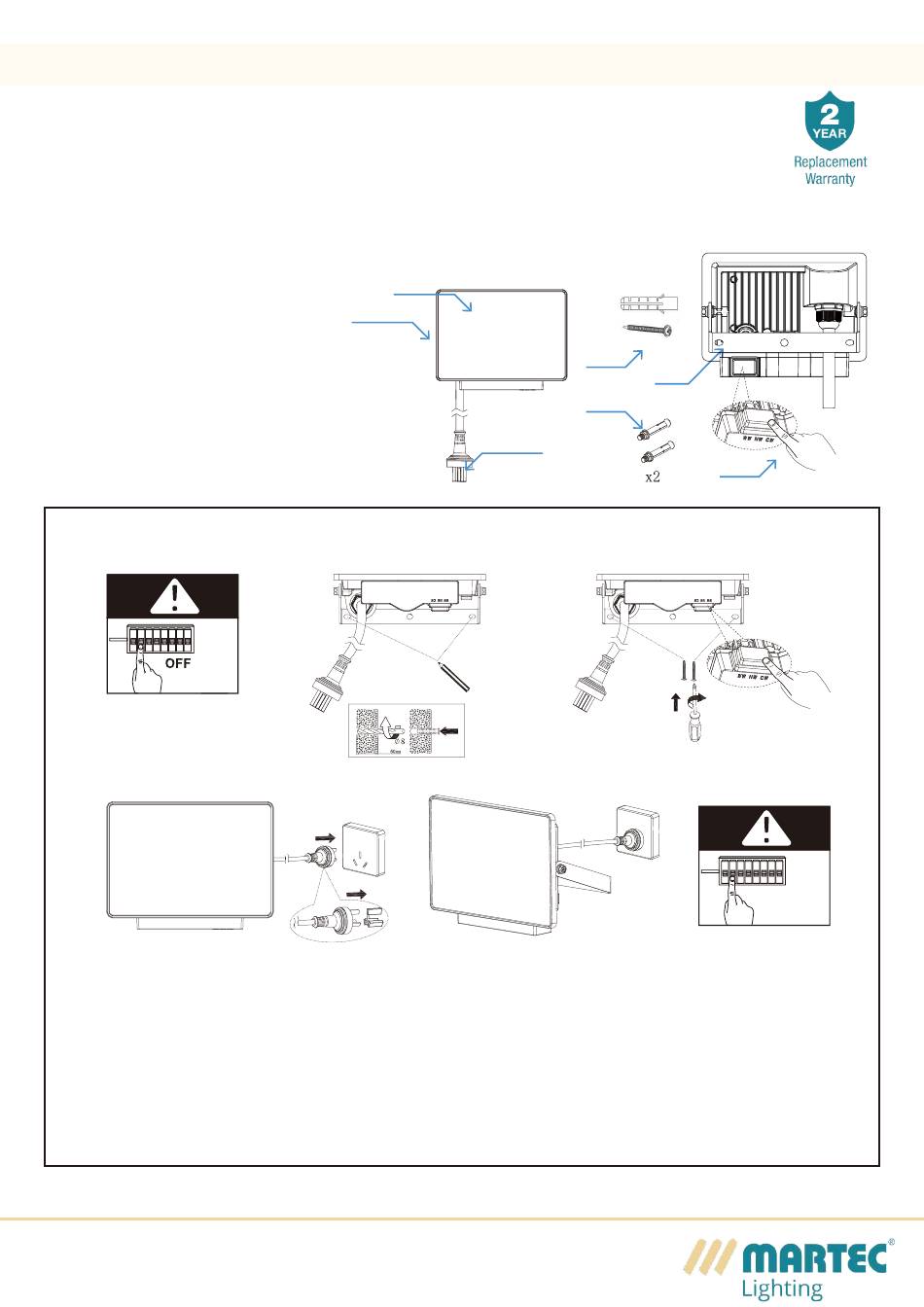

Part List:

1. Light body
2. Wall mount bracket
3. Cable and plug
4. Wall mount screws
5. Light cover
6. Colour temperature switch
7. Expansion screws (for MLXO345150M and MLXO345200M)

How to Assemble

①
Step 1. Switch OFF the mains.
Step 2. Adjust the angle of the wall mount bracket as the picture shown above then mark the position of the mounting holes.
Step 3. Drill the mounting holes on the wall according to the marking.
Step 4. Insert the dowels into the wall mount holes. (for MLXO345150M and MLXO345200M please skip this step)
Step 5. Set the colour temperature by pressing the colour temperature switch. Use the mounting screw to fix the the light onto the
wall by screwing the mounting holes. (for MLXO345150M and MLXO345200M please use the expansion screw instead.)
Step 6. Take off the cap of the Plug then plug in to finish the electrical connection.
Step 7. Plug in to finish the electrical connection.
Step 8. Turn on the mains.
E: sales@martecltd.com.au | P: 02 8778 7500
www.martecaustralia.com.au
5
1
③ ④
⑥
4
2
7
3
②
⑦
6
⑤
⑧
ON
