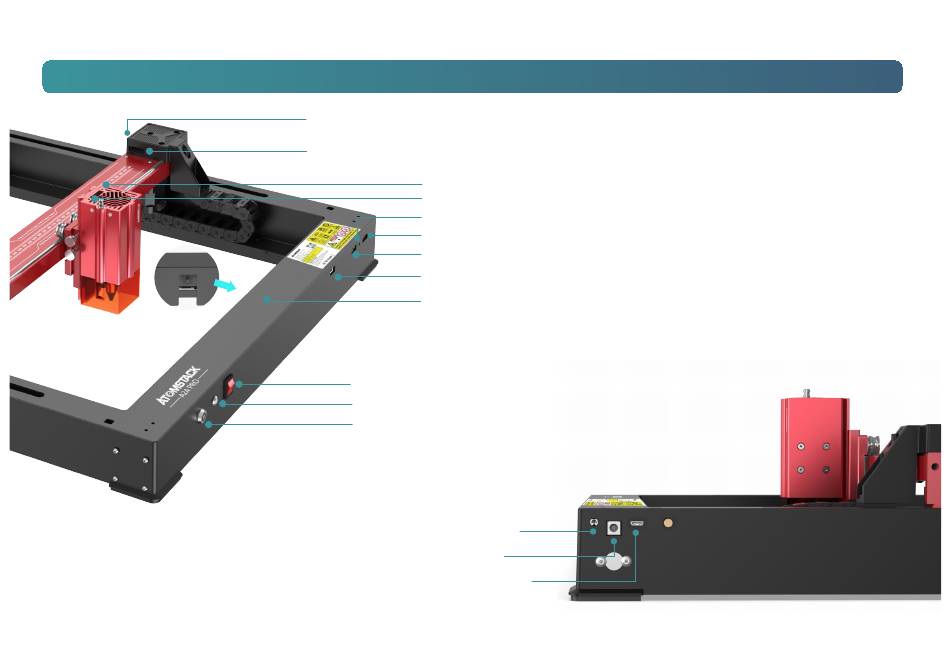

Machine introduction and component installation

LASER: Laser cable input port
EXPAND INTERFACE: Expansion interfaces, accessories(chucks, rollers, conveyors)output ports
LIGHT 1：When the red light is on, it means that it is working normally.
LIGHT 2：When the blue light is on, the laser is coming out.
RESET : Restart the machine
HDMI : Connect the display screen for offline control
USB : Insert a USB flash drive for firmware flashing and program testing
Y-INTERFACE: Used for switching chuck/roller/conveyor
Y-INTERFACE: For switching between Y-axis motor interface and machine Y-axis motor
Emergency : Machine power switch
ALARM: Tilt and flame triggered alarm
lock: Safety lock, requires a key to unlock and use the machine
OUTPUT : Power supply for the air pump
INPUT: Power supply for the machine
TYPE-C: Connect to the PC via Lightburn or
LaserGRBL control
