Assembly Instructions

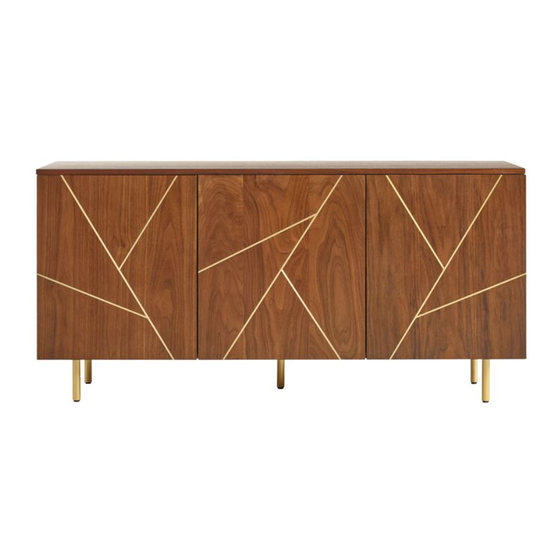

Dustin Wood & Metal Inlay Cabinet
SKU-550247
THANK YOU FOR YOUR PURCHASE. IF YOU HAVE ANY QUESTIONS
PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT
THE NEAREST WORLD MARKET STORE.
IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL
CENTER TOLL FREE AT 877- 967-5362 FOR ASSISTANCE.
All products sold at World Market are not for commercial use
and are intended for residential use only.
2022.07.07

Advertisement

loading
Need help?

Need help?

Do you have a question about the 550247 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for World Market 550247

Summary of Contents for World Market 550247

  • Page 1 IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877- 967-5362 FOR ASSISTANCE. All products sold at World Market are not for commercial use and are intended for residential use only. 2022.07.07...

  • Page 2: Component List

    Component List LABEL DESCRIPTION Left Door Panel Right Door Panel Middle Door Panel Top Panel Back Panel Bottom Panel Left Side Panel Right Side Panel Left Divider Panel Right Divider Panel Adjustable Shelves Metal Legs Middle Metal Leg...

  • Page 3: Tool List

    Hardware LABEL DESCRIPTION Bolts1/4”x5/8”xØ15mm Cam Lock Nuts Cam Lock Screws Wood Dowels Wood Screws Ø4 x 15mm Bolts 5/32 x 12mm Shelf Pins Plastic Caps TIPPING KIT CHECK LIST CODE COMPONENT 01 NYLON RESTRAINT STRAP 2 1 SET 02 LONGER SCREW 03 SHORTER SCREW 04 PLASTIC ANCHOR 05 MOUNTING BRACKETS...

  • Page 4: Assembly Preparation

    Do not assemble on flooring or carpet. Assemble on a clean non-marring surface (packing foam). Save all packaging until finished. In case of missing parts, please contact your nearest World Market store or call our customer service call center at call 1-877-967-5362.

  • Page 5: Assembly Steps

    Assembly Steps Step 1 (H-1) Bolts1/4”x5/8”xØ15 20 PCS Adjust levelers if needed for stability. (T-1) Allen Key 110mm x 30mm 1 PC Position Metal Legs (L) and Middle Metal Leg (M) to corners and the center of Bottom Panel (F); Secure by using Bolts (H-1) and fully tighten all bolts by Allen Key (T-1).
  • Page 6 Step 2 (T-2) Screw Driver (Not Provided) 1 PC (H-2) Cam Lock Nuts 4 PCS (H-3) Cam Lock Screws 4 PCS (H-4) Wood Dowels 6 PCS Install Cam Lock Screws (H-3) first then insert the Wood Dowels (H-4) on the Left and Right Side Panels (G&H).
  • Page 7 Step 3 (T-2) Screw Driver (Not Provided) 1 PC (H-2) Cam Lock Nuts 4 PCS (H-3) Cam Lock Screws 4 PCS (H-4) Wood Dowels 6 PCS Install Cam Lock Screws (H-3) first, then insert the Wood Dowels (H-4) on the Bottom Panel (F). Fit the holes in the edge of the Left and Right Divider Panels (I&J) over the Cam Lock Screws (H-3) and Wood Dowels (H-4).
  • Page 8 Step 4 (T-2) Screw Driver (Not Provided) 1 PC (H-2) Cam Lock Nuts 12 PCS (H-3) Cam Lock Screws 12 PCS (H-4) Wood Dowels 8 PCS Install Cam Lock Screws (H-3) first, then insert the Wood Dowels (H-4) on the Top Panel (D). Fit the Cam Lock Screws (H-3) and the Wood Dowels (H-4) on the Top Panel (D) to the holes in the edge of the Left &...
  • Page 9 Step 5 (T-2) Screw Driver (Not Provided) 1 PC (H-5) Wood Screws 15 x Ø4 28 PCS Attach Back Panel (E) into pre-assembled unit (Step 4). Secure using Wood Screws (H-5) and fully tighten by a Screw Driver (T-2).
  • Page 10 Step 6 (T-2) Screw Driver (Not Provided) 1 PC (H-6) Bolts 12 x Ø4 24 PCS Assemble Left Door Panel (A), Right Door Panel (B), and Middle Door Panel (C) to pre-assembled unit (Step 5). Secure using Bolts (H-6) and fully tighten by a Screw Driver (T-2).
  • Page 11 Step 7 (H-7) Shelf Pins 12 PCS Insert Shelf Pins (H-7) into Left and Right Side Panels (G&H) and Divider Panels (I&J). Then insert Adjustable Shelves (K) into assembled unit. Step 8 (H-8) Plastic Caps 20 PCS Attach Plastic Caps (H-8) into the holes of Cam Lock by hand. Product is now completely assembled.
  • Page 12 Dustin Wood & Metal Inlay Cabinet is now ready to use.
  • Page 13 Hinge Adjustment Guide Side to Side Adjustment loosen screw A, adjust gap with screw B and re-tighten Screw A. Depth Adjustment loosen screw A, push hinge arm forwards or backwards, re-tighten screw A and secure Height Adjustment Screw B with a 1/4 turn loosen screw C, adjust door clockwise.
  • Page 14 Push-Latch Adjustment Guide If any door failed to close properly, adjust the length of the magnetic latch's pin by turning it counterclockwise, as shown. The push pin's length will extend to allow the lock to engage. You will hear a soft click. Door will close.
  • Page 15 All products sold at World Market are not for commercial use and are intended for residential use only. Dust and pick-up spills using a clean, non-colored, lint-free, dry cloth.
  • Page 16 Anti-Tip Measures Warning - Children may be injured by tipping of furniture and the use of the Anti-Tip Kit is highly recommended. This Anti-Tip Kit is only a deterrent. It is not a substitute for proper adult supervision. Manufacturer and retailer assume no liability for improper installation or excess loads placed on screws, brackets, or straps.
  • Page 17 Customer Service Call Center, Toll Free at 877-967-5362. For valid warranty claims, World Market will repair or replace the product, or offer a full or par�al credit, in the sole discre�on of World Market. This LIMITED ONE-YEAR WARRANTY gives you specific legal rights and you may also have other rights which vary from state to state.
