DUSTIN WOOD & METAL INLAY CABINET
SKU-550247
Rev 3, 3/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DUSTIN 550247 and is the answer not in the manual?

Questions and answers

Related Manuals for World Market DUSTIN 550247

Summary of Contents for World Market DUSTIN 550247

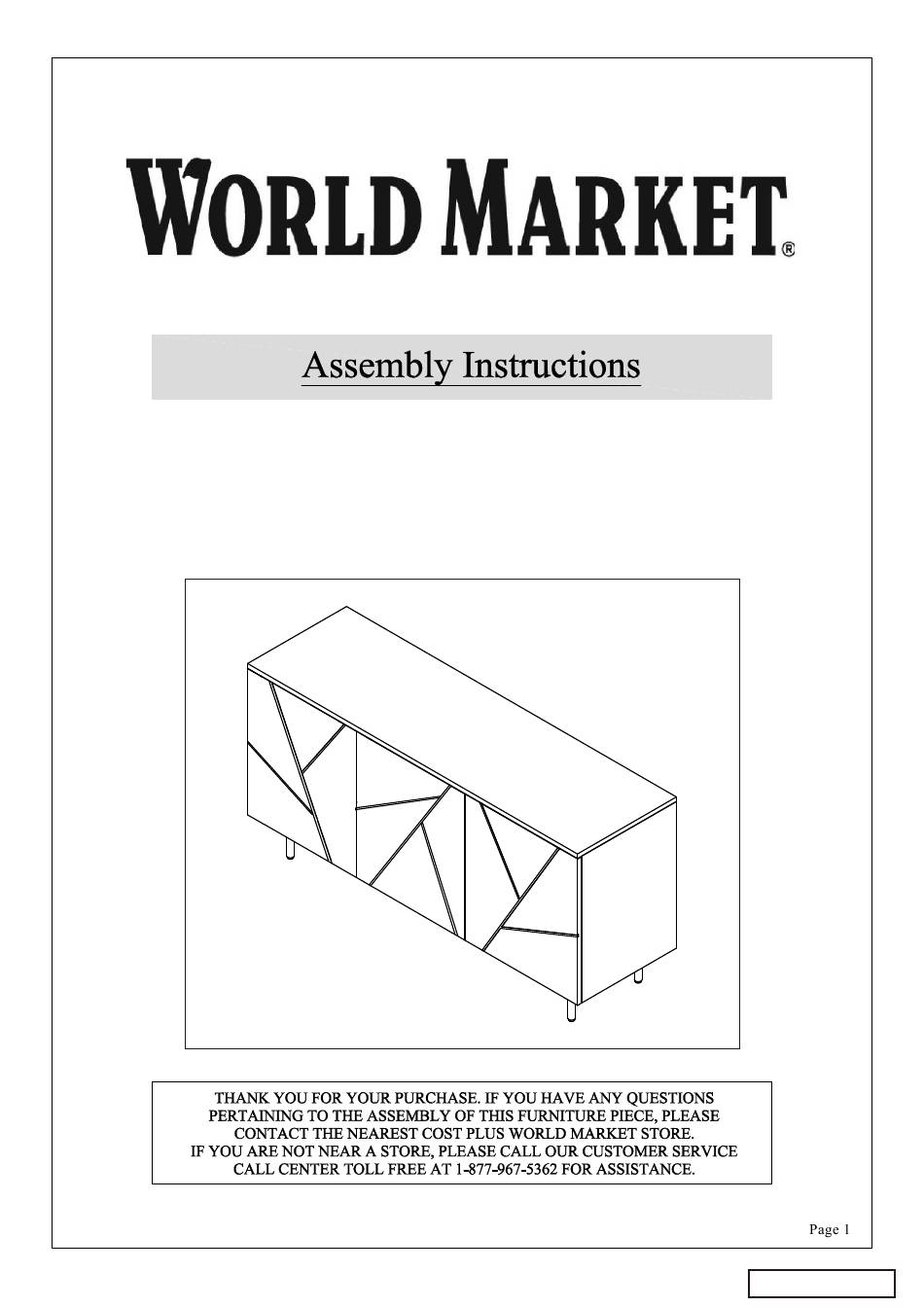

  • Page 1 DUSTIN WOOD & METAL INLAY CABINET SKU-550247 Rev 3, 3/2018...

  • Page 2: Component List

    Component List LABEL DESCRIPTION Left Door Panel 1 PC Right Door Panel 1 PC Middle Door Panel 1 PC Top Panel 1 PC Back Panel 1 PC Bottom Panel 1 PC Left Side Panel 1 PC Right Side Panel 1 PC Left Divider Panel 1 PC Right Divider Panel...

  • Page 3: Tool List

    Hardware LABEL DESCRIPTION Bolts1/4”x5/8”xØ15mm 20 PCS Cam Lock Nuts 20 PCS Cam Lock Screws 20 PCS Wood Dowels 20 PCS Wood Screws Ø4 x 15mm 28 PCS Bolts 5/32 x 12mm 24 PCS Shelf Pins 12 PCS Plastic Caps 20 PCS TIPPING KIT CHECK LIST CODE COMPONENT...

  • Page 4: Assembly Preparation

    Assembly Preparation M X1 L X4 Page 4...

  • Page 5: Assembly Steps

    Assembly Steps Step 1: (H-1) Bolts1/4”x5/8”xØ15 20 PCS Adjust levelers if needed for stability. (T-1) Allen Key 110mm x 30mm 1 PC * Position Metal Legs (L) and Middle Metal Leg (M) to corners and the center of Bottom Panel (F) ; Secure by using Bolts (H-1) and fully tighten all bolts by Allen Key (T-1).
  • Page 6 Assembly Steps Step 2: (T-2) Screw Driver (Not Provided) 1 PC (H-2) Cam Lock Nuts 4 PCS (H-3) Cam Lock Screws 4 PCS (H-4) Wood Dowels 6 PCS *Install Cam Lock Screws (H-3) first then insert the Wood Dowels (H-4) on the Left and Right Side Panels (G&H).
  • Page 7 Assembly Steps Step 3: (T-2) Screw Driver (Not Provided) 1 PC (H-2) Cam Lock Nuts 4 PCS (H-3) Cam Lock Screws 4 PCS (H-4) Wood Dowels 6 PCS *Install Cam Lock Screws (H-3) first, then insert the Wood Dowels (H-4) on the Bottom Panel (F). Fit the holes in the edge of the Left and Right Divider Panels (I&J) over the Cam Lock Screws (H-3) and Wood Dowels (H-4).
  • Page 8 Assembly Steps Step 4 (T-2) Screw Driver (Not Provided) 1 PC (H-2) Cam Lock Nuts 12 PCS (H-3) Cam Lock Screws 12 PCS (H-4) Wood Dowels 8 PCS *Install Cam Lock Screws (H-3) first, then insert the Wood Dowels (H-4) on the Top Panel (D). Fit the Cam Lock Screws (H-3) and the Wood Dowels (H-4) on the Top Panel (D) to the holes in the edge of the Left &...
  • Page 9 Assembly Steps Step 5: (T-2) Screw Driver (Not Provided) 1 PC (H-5) Wood Screws 15 x Ø4 28 PCS *Attach Back Panel (E) into pre-assembled unit (Step 4). Secure using Wood Screws (H-5) and fully tighten by a Screw Driver (T-2). Page 9...
  • Page 10 Assembly Steps Step 6: (T-2) Screw Driver (Not Provided) 1 PC (H-6) Bolts 12 x Ø4 24 PCS * Assemble Left Door Panel (A), Right Door Panel (B), and Middle Door Panel (C) to pre-assembled unit (Step 5). Secure using Bolts (H-6) and fully tighten by a Screw Driver (T-2). Page 10...
  • Page 11 Assembly Steps Step 7: (H-7) Shelf Pins 12 PCS * Insert Shelf Pins (H-7) into Left and Right Side Panels (G&H) and Divider Panels (I&J). Then insert Adjustable Shelves (K) into assembled unit. Step 8: (H-8) Plastic Caps 20 PCS * Attach Plastic Caps (H-8) into the holes of Cam Lock by hand.
  • Page 12 Assembly Steps: Dustin Wood & Metal Inlay Cabinet is now ready to use. Page 12...
  • Page 13 Hinge Adjustment Guide Side to Side Adjustment loosen screw A, adjust gap with screw B and re-tighten Screw A. Depth Adjustment loosen screw A, push hinge arm forwards or backwards, re-tighten screw A and secure Height Adjustment Screw B with a 1/4 turn loosen screw C, adjust door clockwise.
  • Page 14 Push-Latch Adjustment Guide * If any door failed to close properly, adjust the length of the magnetic latch's pin by turning it counterclockwise, as shown. The push pin's length will extend to allow the lock to engage. You will hear a soft click. Door will close. Page 13-2...
  • Page 15 Assembly Steps: Installation Instruction: 1. Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screws. 2. Determine where furniture is to be placed and mark location on the wall for the mounting bracket screw hole approximately 2”...

  • Page 16: Care And Maintenance

    Care & Maintenance Do not put hot items directly on furniture surface. Do not clean furniture with harsh cleansers or polish. Clean Do not place furniture in direct sunlight. Do not place furniture near heating or cooling vents. Do not write on furniture without a padded barrier to protect the surface. Do not place furniture outside.
