682-53B System

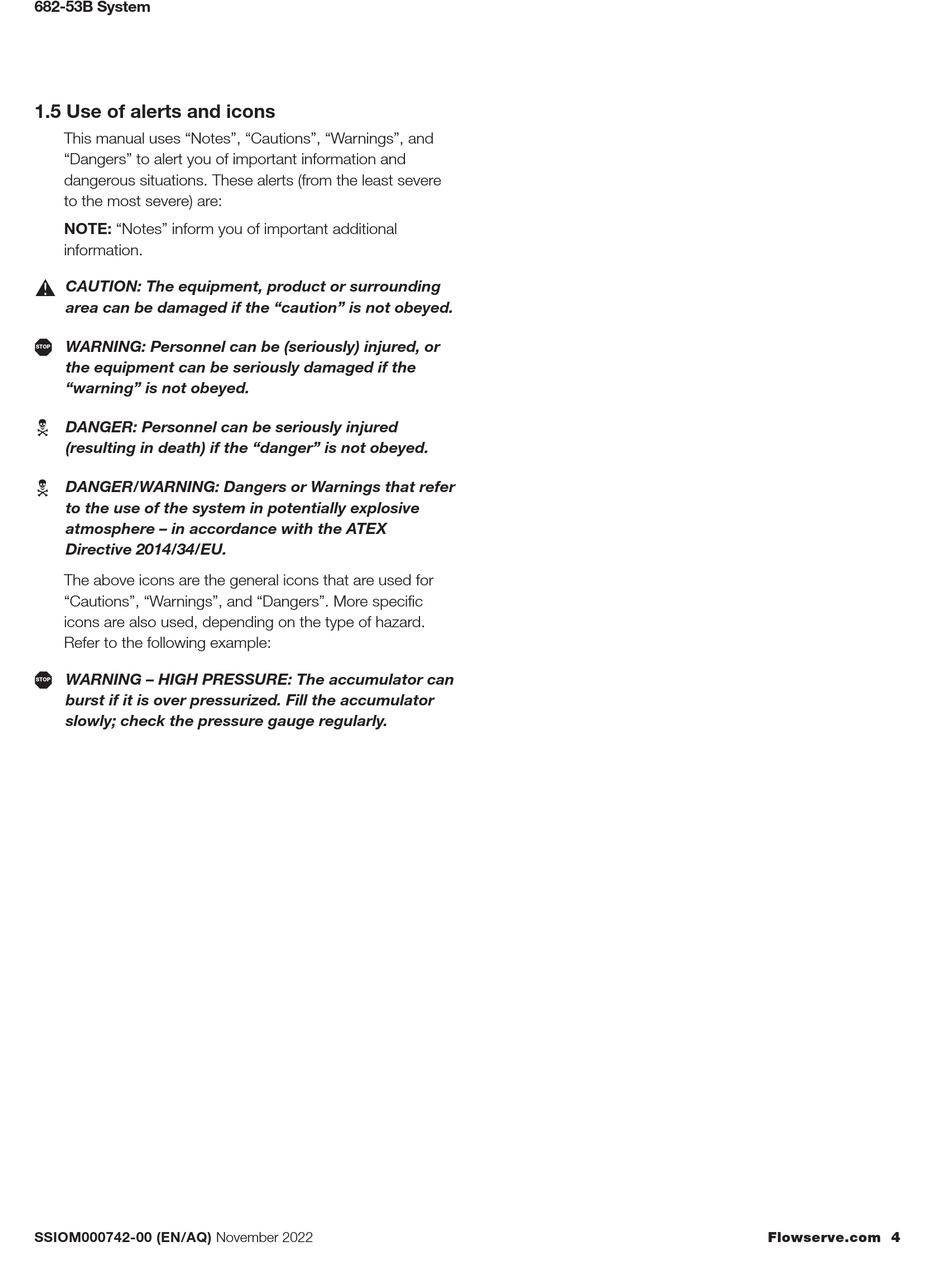

1.5 Use of alerts and icons

This manual uses "Notes", "Cautions", "Warnings", and
"Dangers" to alert you of important information and
dangerous situations. These alerts (from the least severe
to the most severe) are:
NOTE: "Notes" inform you of important additional
information.
a
CAUTION: The equipment, product or surrounding
area can be damaged if the "caution" is not obeyed.
ú
WARNING: Personnel can be (seriously) injured, or
STOP
the equipment can be seriously damaged if the
"warning" is not obeyed.
c
DANGER: Personnel can be seriously injured
(resulting in death) if the "danger" is not obeyed.
c
DANGER/WARNING: Dangers or Warnings that refer
to the use of the system in potentially explosive
atmosphere – in accordance with the ATEX
Directive 2014/34/EU.
The above icons are the general icons that are used for
"Cautions", "Warnings", and "Dangers". More specific
icons are also used, depending on the type of hazard.
Refer to the following example:
ú
WARNING – HIGH PRESSURE: The accumulator can
STOP
burst if it is over pressurized. Fill the accumulator
slowly; check the pressure gauge regularly.
SSIOM000742-00 (EN/AQ) November 2022 Flowserve.com 4
