Operating Instructions
and User's Information Manual
Vitotronic 100
Model KK10
Boiler control unit
for high temperature heating systems
Part No. 7133 374
VITOTRONIC 100
5167 482 v1.2 09/2007
IMPORTANT
Read and save these instructions
for future reference.
Certified as a component part
of Viessmann boilers only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VITOTRONIC 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viessmann VITOTRONIC 100

Summary of Contents for Viessmann VITOTRONIC 100

  • Page 1 Vitotronic 100 Model KK10 Boiler control unit for high temperature heating systems Part No. 7133 374 VITOTRONIC 100 IMPORTANT Read and save these instructions Certified as a component part for future reference. of Viessmann boilers only 5167 482 v1.2 09/2007...

  • Page 2: Safety, Installation And Warranty Requirements

    Safety, Installation and Warranty Requirements Safety, Installation and Warranty Requirements Please ensure that this manual is read and understood before commencing installation. Failure to comply with the issues listed below and details printed in this manual can cause product/property damage, severe personal injury, and/or loss of life. Ensure all requirements below are understood and fulfilled (including detailed information found in manual subsections).

  • Page 3: Location Of Controls

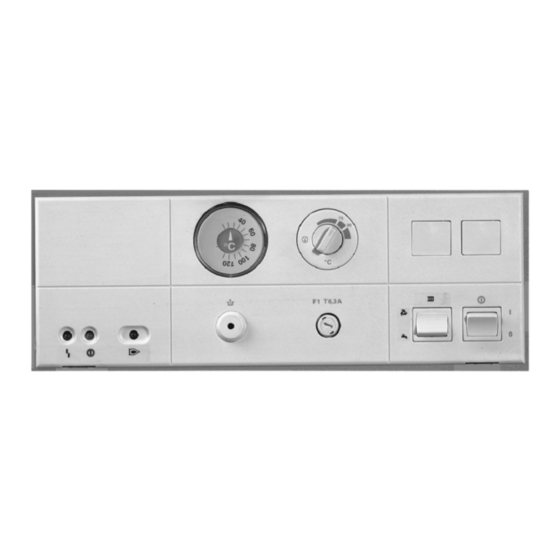

    Operation Overview of Display Elements Boiler temperature gage Adjustable high limit (Page 5) Power switch (Page 4) Space heating switch (Page 5) Fuse F1 T 6.3 A / 250 V Fixed high limit LED: Burner status indicator* LED: Power indicator LED: Burner fault indicator* *Not available on the following boiler models: Vitogas 100, GS1;...

  • Page 4: Shutting Down The Heating System

    Operation Starting Up the Heating System The initial start-up and setup of the control must be done by a licensed professional heating contractor. We strongly recommend a service visit if reactivating the heating system after an extended shut-down. 1. Check the pressure of the heating system on the pressure gage .
  • Page 5 Boiler water temperature limit (counter-clockwise) decreases. Space Heating Circuit Switch The space heating circuit switch is only operational if a Viessmann DHW Pump Module (Accessory) is installed and connected to the control. For heating systems with domestic hot water production:...
  • Page 6 Operation Diagnostics Failure, Cause, Correction Failure Cause Correction Heating system does not activate Thermostat is not set to a Adjust thermostat. sufficiently high temperature (only GREEN power LED is illuminated) Heating system does not activate Power switch “ “ is in “ “ Ensure power switch “...

  • Page 7: Safety Requirements

    Note: If your home will be unattended for an Viessmann does not test any detectors extended period of time during cold and makes no representation regarding weather, you should...

  • Page 8: Saving Energy

    Your new heating system provides the and domestic hot water tank towards saving energy. following alternatives to save energy: – clean combustion and high energy Viessmann boilers operate optimally to extraction ensure minimum fuel consumption for maximum heating value - efficient, ...with proper heating Additional energy can be saved by –...
