OWNER'S MANUAL

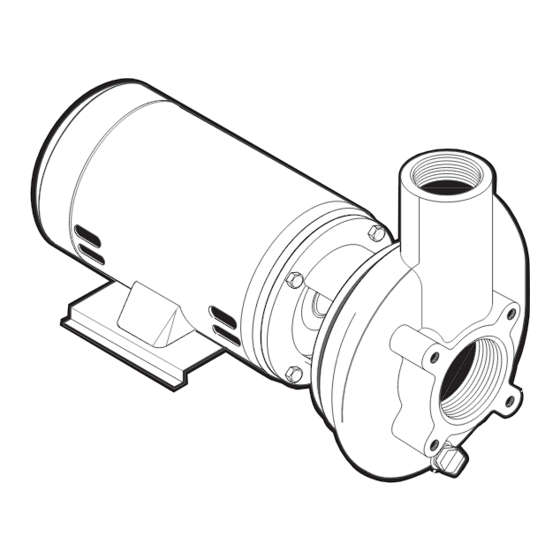

Centrifugal Pumps
sta-rite
®
2791 0397
"C" and "CC" Series
installation/Operation/Parts
For further operating, installation,
or maintenance assistance:
Call 1-888-782-7483
293 WRIGHT STREET, DELAVAN, WI 53115 WWW.STA-RITE.COM
PH: 888-782-7483
S150 (Rev. 02/04/13
© 2013 Pentair, Ltd. All Rights Reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pentair STA-RITE C Series
Summary of Contents for Pentair STA-RITE C Series

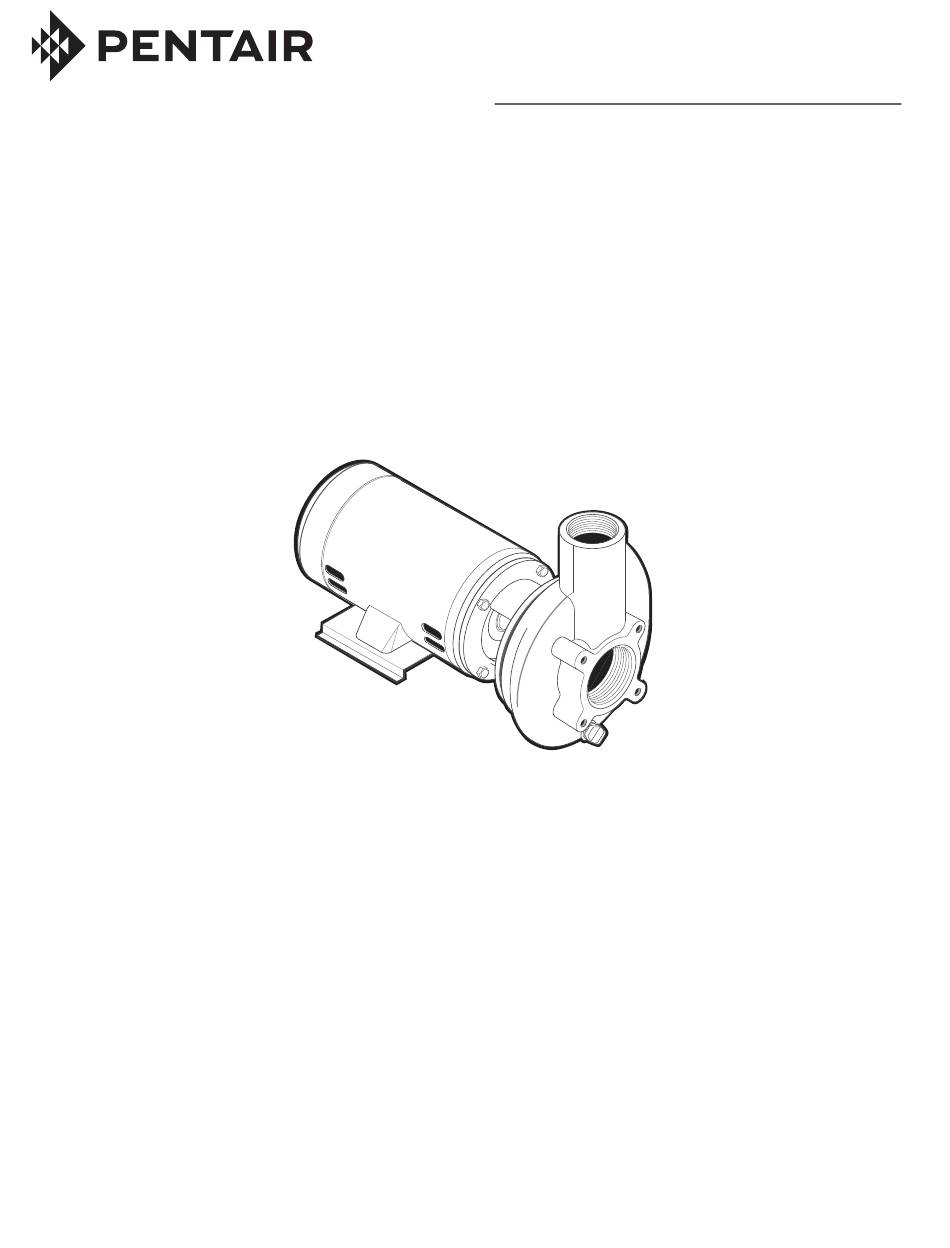

- Page 1 OWNER’S MANUAL Centrifugal Pumps sta-rite ® 2791 0397 “C” and “CC” Series installation/Operation/Parts For further operating, installation, or maintenance assistance: Call 1-888-782-7483 293 WRIGHT STREET, DELAVAN, WI 53115 WWW.STA-RITE.COM PH: 888-782-7483 S150 (Rev. 02/04/13 © 2013 Pentair, Ltd. All Rights Reserved.
- Page 2 Safety READ AND FOLLOW SAFETY INSTRUCTIONS! This is the safety alert symbol. When you see this symbol on your pump or in this manual, look for one of the following signal words and be alert to the potential for personal injury: warns about hazards that will cause serious personal injury, death or major property damage if ignored.
- Page 3 Table of Contents Page General Safety ....................2 Warranty ......................3 Installation ......................4-5 Maintenance ....................5-7 Troubleshooting ....................8 Repair Parts ....................9-11 Limited Warranty STA-RITE warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period shown below. Product Warranty Period whichever occurs first:...
- Page 4 Installation SERIES C/CC CENTRIFUgAL PUmPS The “C” and “CC” Series pumps are close coupled pumps with optional traps. “CC” Series have cast iron volutes and adapters. “C” Series have bronze volutes and adapters. Impellers on both series are bronze. INSTALLATION Location of Unit Install pump as close to liquid source as possible, using short, simple suction piping.
- Page 5 Installation / Maintenance Wiring NOTICE: For 575 volt installations, see motor nameplate. Consult a licensed electrician for wiring information. Installation must meet code. For 200, 230, and 460 volt installations, check fusing/wiring data chart (Table I, below) before connecting pump to power source. Check that voltage/frequency on motor nameplate are identical with voltage/frequency of incoming power supply.
- Page 6 Maintenance mAINTENANCE Little or no maintenance to pump is required other than possible replacement of shaft seal after a reasonable period of operation (see below). Lubricate motor according to motor manufacturer’s instructions. Periodic greasing is required for most motors. PUmP STORAgE Drain pump to prevent freezing.
- Page 7 Maintenance INSTALLINg NEW SEAL 1. NOTICE: Seal faces are highly polished and lapped. Handle with care. Any mar, nick or scratch on seal face will cause it to leak. BE SURE to install with polished faces toward each other. 2. Clean polished surface of ceramic seat with clean cloth. 3.
- Page 8 Troubleshooting Read symptom describing problem below at left. Causes Hazardous voltage. Can shock, burn for problems (bottom) are keyed to numbers at right. or kill. Take all normal precautions for the voltage Check pump for causes listed at right and correct those involved.
- Page 9 Repair Parts 8” and 11” Suction Trap 6” Suction Trap NOTICE: Traps are not included with pumps. 1128 0695 1839 0695 Part Description Cast Iron Bronze Lock Handle C154-18D C154-18D Cover - 6” C30-30 C3-78DZZ Cover - 8” C3-105 C3-105D Cover - 11”...
- Page 10 Repair Parts 1904 0795 CC P/S CCmH-136 CCHH-137S CCm2H-136 CmH-136 CCHH3-137S CCm2H-136S CmH3-136 CCHH36-137 CCmH3-136S CCmH36-136 CCH2H-137S CHH-137 CCm2H3-136 Cm2H-136 CCH2H3-137 CHH3-137 CCm2H3--136S Cm2H3-136 CCH2H3-137S CH2H3-137 Description Qty. 3 HP 3 HP 3 HP 3 HP Motor 230V/60H/1 Ph. C218-177 C218-177 C218-177 C218-177...
- Page 11 Repair Parts 1904 0795 CC P/S CCHJ-138 CCHJ-138S CCHJ3-138S CHJ-138 CCHJ36-138 CHJ3-138 CCH2J3-138S CH2J3-138 Description Qty. 5 HP 5 HP Motor 230V/60H/1 Ph. C218-180 C218-180 Motor 230/460V/60H/3 Ph. C218-182 C218-182 Motor 575V/60H/3 Ph. C218-292C – Motor 200V/60H/3 Ph. C218-181 C218-181 2 Water Slinger-3 Ph. (†) C69-16...
