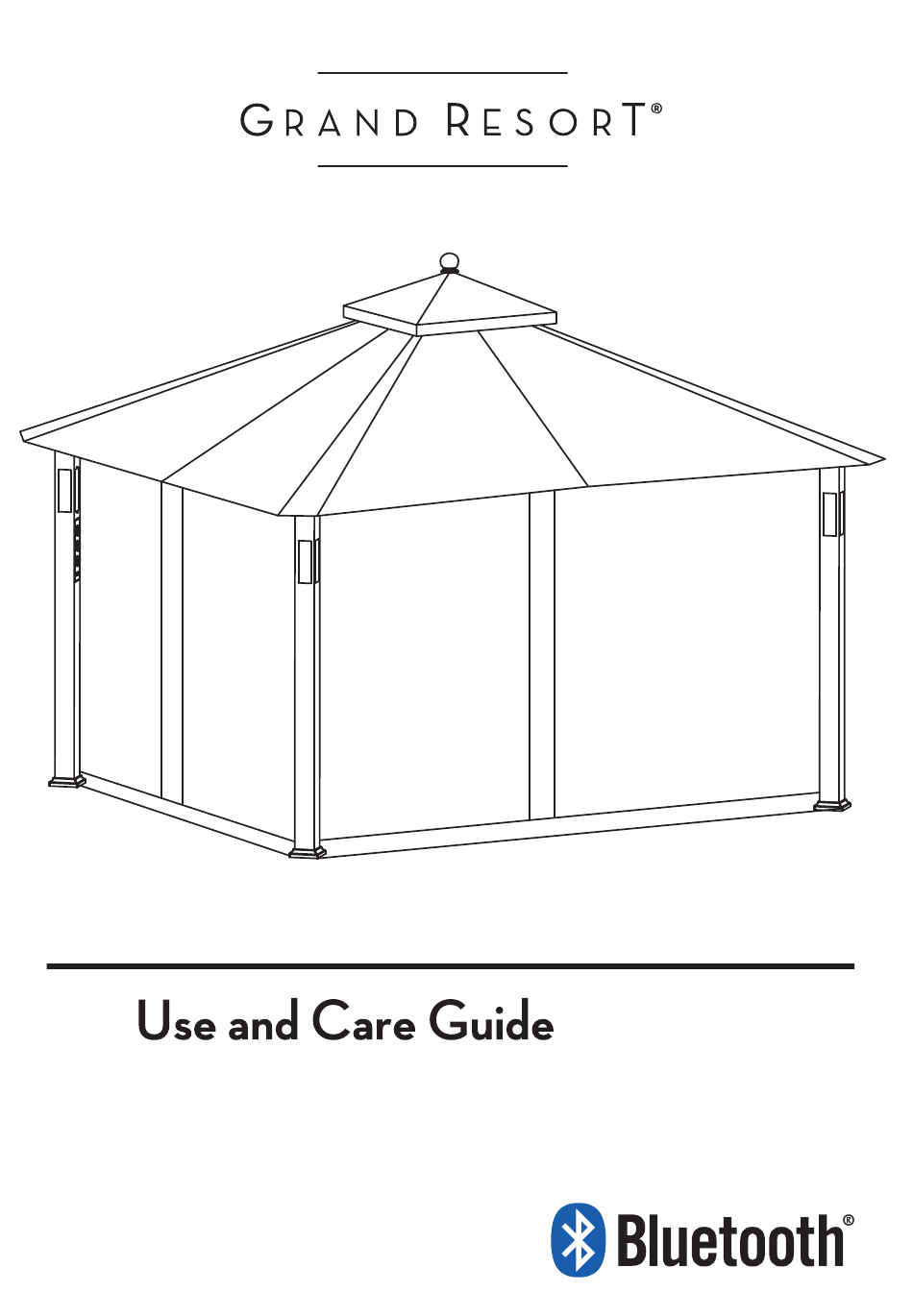

GRAND RESORT D71 M48607 Use And Care Manual

10 x 12 lighted gazebo with top quality music
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
10 x 12 Lighted Gazebo with Top Quality Music
Product Code: D71 M48607
KSN: 0-07449898-1
UPC Code: 749241316982
Date of purchase: _____/ _____/ _____
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D71 M48607 and is the answer not in the manual?

Questions and answers

Related Manuals for GRAND RESORT D71 M48607

Summary of Contents for GRAND RESORT D71 M48607

  • Page 1 10 x 12 Lighted Gazebo with Top Quality Music Product Code: D71 M48607 KSN: 0-07449898-1 UPC Code: 749241316982 Date of purchase: _____/ _____/ _____...

  • Page 2: Table Of Contents

    Thank you for your purchase Thank you for your purchase! We are pleased that you have chosen Sears for your outdoor furniture purchase. We hope that you enjoy the unmatched quality, comfort, and style of your new patio set. Every piece is meticulously considered all the way down to the smallest details, exclusively for you, by our world class design team.

  • Page 3: Safety Information

    Safety Information SET UP YOUR SHELTER PROPERLY Please read and understand this entire manual before attempt to assemble, operate, or install the product. If any part is missing or damaged. Do not attempt to assemble the product. Two to four people are needed for assembly. In order to avoid damage to the gazebo and its components please use appropriate tools.

  • Page 4: Care And Maintenance

    Care and Maintenance For cleaning, use a mild detergent solution and rinse with water. Do not use acetone abrasive or others special detergents to clean and air dry only. Due to the nature of steel, surface oxidation (rusting) will occur if this protective coating is scratched.

  • Page 5: Pre-Assembly

    Pre-Assembly PLANNING ASSEMBLY To prevent damage, place all parts on a soft surface during assembly. Tools required for assembly (not included): Allen wrench (included), a screwdriver, stepladder (min. 5ft.) and other safety items such as gloves, safety eyewear, and hardhat. To avoid injury from exposed sharp edges, it may be necessary to use the above safety equipment.

  • Page 6: Package Contents

    Pre-Assembly (continued) Package Contents...
  • Page 7 Pre-Assembly (continued) Package Contents ITEM DESCRIPTION QTY. ILLUSTRATION POST A (WITH SWITCH, LIGHTS AND SPEAKER PREASSEMBLED) POST B (LIGHTS AND SPEAKER PREASSEMBLED) POST C (LIGHTS AND SPEAKER PREASSEMBLED) BASE FLANGE BASE CAP LONG CROSSBAR (WITH WIRES) LONG CROSSBAR (WITH WIRES) LONG CROSSBAR LONG CROSSBAR white...
  • Page 8 Pre-Assembly (continued) Package Contents ITEM DESCRIPTION QTY. ILLUSTRATION LONG ROOF TUBE SHORT ROOF TUBE FINIAL NETTING CANOPY AIR VENT COVER STAKE AC ADAPTER CONNECTION WIRE...

  • Page 9: Assembly Instructions

    Assembly Instructions 1. Insert Post (B) through Base Cap (E) into base Flange (D), and use Bolt (AA) to secure. Repeat this step for Post (A, C). D x 4 E x 4 AA x 8 black white black white...
  • Page 10 Assembly Instructions 2. Insert Long Crossbar (F) into Center Connector (L) then connect wires in same color. Insert Long Crossbar (G) into Center Connector (L) then secure by Bolts (AA). Don’t tighten bolts before complete this step assembly. white L x 1 white black black...
  • Page 11 Assembly Instructions 3. Insert Short Crossbar (J) into Center Connector (L) then connect wires in same color. Insert Short Crossbar (K) into Center Connector (L) then secure by Bolts (AA). Don’t tighten bolts before complete this step assembly. L x 2 white white black...
  • Page 12 Assembly Instructions 4. Insert Long Crossbar (H) into Center Connector (L). Insert Long Crossbar (I) into Center Connector (L) then secure by Bolts (AA). Don’t tighten bolts before complete this step assembly. L x 1 H x 1 AA x 4 I x 1...
  • Page 13 Assembly Instructions 5. Insert wires on the two side of short crossbar into post A and C. Use Bolts (BB) secure Post (A, C) on the two side of Short Crossbar (J, K). Please check below fig. and make sure short crossbar in right direction.
  • Page 14 Assembly Instructions 6. Insert wires on the two side of short crossbar into post B and C. Use Bolts (BB) secure Post (B, C) on the two side of Short Crossbar (J, K). Please check below fig. and make sure short crossbar in right direction.
  • Page 15 Assembly Instructions 7. Insert wires on the two side of long crossbar into post A and B. Use Bolts (BB) secure Post (A, B, C) on the two side of Long Crossbar (F, G, I, J). Please check below fig. and make sure short crossbar in right direction. Don’t tighten bolts before complete this step assembly.
  • Page 16 Assembly Instructions 8. Use Bolts (AA) secure Fixed Plate (M) on the top of each post and crossbar. Then connect same color of wires together. M x 4 AA x 24...
  • Page 17 Assembly Instructions 9. Connect AC Adapter and turn on the switch. AB x 1 ON/OF SWITCH ON/OF SWITCH OUTLET...
  • Page 18 Assembly Instructions 10. Place Post Upper Cap (N) on the top of each Post (A, B, C). N x 4...
  • Page 19 Assembly Instructions 11. Insert 2-tier Roof Tube (P) into Roof Tube (Q). Repeat this step for remaining tubes. P x 8 Q x 8...
  • Page 20 Assembly Instructions 12. Insert 2-tier Roof Tube (P) into Roof Connector (O). Place Roof Tube (Q) on the top corner of post, the secure by Bolts (CC) with Bolt nuts (DD).Repeat this step for the remaining 2-tier Roof Tube and Roof Tube. Q&P x 8 CC x 8 DD x 8...
  • Page 21 Assembly Instructions 13. Insert Air Vent Tube (S) into 2-tier Center Connector (R), secure Air Vent Tube (S) onto 2-tier Roof Tube (P) using Bolts (AA). R x 1 AA x 8 S x 4...
  • Page 22 Assembly Instructions 14. Insert Long Roof Tube (T) into Roof Connector (O) then secure Long Roof Tube (T) by Bolts (CC) with Bolt nuts (DD). Insert Short Roof Tube (U) into Roof Connector (O) then secure Short Roof Tube (U) by Screws (CC) with Nut (DD). T x 2 DD x 4 U x 2...
  • Page 23 Assembly Instructions 15. Place Canopy (X) and Air Vent Cover (Y) on the top then secure Finial (V) on the top of Canopy. Place Canopy in right position of each corner and hang Netting (W). Insert Stake (Z) through Base Flange (E) into ground. V x 1 W x 1 X x 1...
  • Page 24 Assembly Instructions 16. Connect AC Adapter and turn on the switch. AB x 1 ON / OF SWITCH OUTLET...
  • Page 25 Assembly Instructions 17. Connect AC adapter and turn on the switch (located on the top of Post A). Turn on the audio controller switch (located on the bottom of post in black round bottom). There are 3 ways to play the music: 1.
  • Page 26 Assembly Instructions Instruction of Replace LED Lights 1. Take out Canopy (X) from corner. Disconnect all the wires. Warning: Please make sure the power is disconnect. DETAIL...
  • Page 27 Assembly Instructions Instruction of Replace LED Lights 2. Turn counterclockwise to release and take out the LED lights. Place new LED lights then tighten up in clockwise.
  • Page 28 Assembly Instructions Instruction of Replace LED Lights 3. Connect all same color wires together then place back the canopy. This LED lights is special design for this product only. Do not replace or modify this product. DETAIL...
  • Page 29 Assembly Instructions Instruction of Replace Speakers 1. Take off speaker cover then release screws. Take out speaker slowly then disconnect wires. Warning: Please make sure the power is disconnect. white...
  • Page 30 Assembly Instructions Instruction of Replace Speakers 2. Connect all wires with new speaker, secure speaker on the post. Place back speaker cover. Warning: This speaker is special design for this product only. Do not replace or modify this product. white...
  • Page 31 Assembly Instructions Instruction of Replace Audio Controller 1. Take off audio controller cover then release screws. Take out audio controller box slowly then disconnect wires. Warning: Please make sure the power is disconnect. white white black black white white...
  • Page 32 Assembly Instructions Instruction of Replace Audio Controller 2. Connect all wires with new audio controller, secure audio controller box on the post. Place back speaker cover. Warning: This audio controller is special design for this product only. Do not replace or modify this product.
  • Page 33 Solutions to Common Speaker Phenomenon Solutions Problems 1. Ensure the speakers is in standby mode and turn off connection with all Bluetooth Several unsuccessful devices. connection attempts 2. Or restart. Volume too low or 1. Or reboot change to Turn off the power for 10 seconds. sound distorted 2.
  • Page 34 MicroSD Remote Control Instruction ***This Remote Control only use for MicroSD*** Previous Next Play/Pause Volume - Button Volume + Button 0 - 9 Number: Select the number of song from your music list...
  • Page 35 FCC ID: 2AC7TGAZEBO60W This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 36: Customer Service

    CUSTOMER SERVICE BOND VAST INDUSTRIAL LIMITED BONDVAST No. 174 Ding Tan Pi Tan Vill Lutsao Hsiang, Chla Yi Hsien, Tai Wan, ROC FAX: 886-5-3651 522 CUSTOMER SERVICE HOT LINE: 1-800-961-9838 SERVICE HOURS: MONDAY - FRIDAY 9:00AM - 5:00PM (PACIFIC TIME) E-MAIL: CUSTOMERSERVICE@BONDVAST.COM...
  • Page 37 Please refer to part numbers when reordering For questions or comments about product: Email: customerservice@bondvast.com or Call toll-free: 1-800-961-9838 Made in / Hecho en CHINA Distributed by Sears, Roebuck and Co., Hoffman Estates, IL 60179 sears.com See our extensive assortment of outdoor living products on-line at www.sears.com and www.kmart.com...
