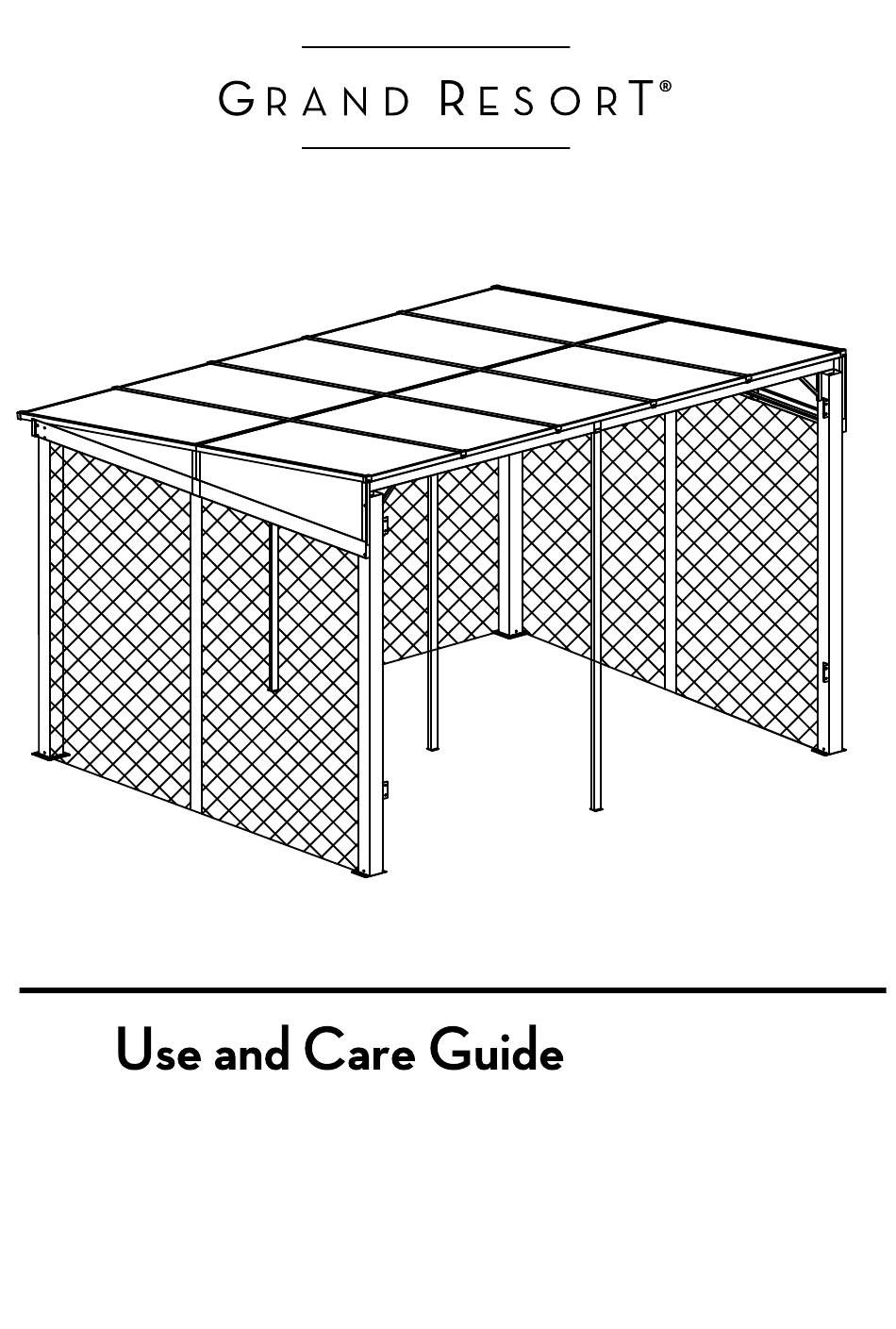

- Page 1 10x12 Add-A-Room Gazebo with Netting Product Code: D71 M45965 KSN: 0-08402015-5 UPC Code: 749241316913 Date of purchase: _____/ _____/ _____...
-
Page 2: Table Of Contents
Thank you for your purchase Thank you for your purchase! We are pleased that you have chosen Sears for your outdoor furniture purchase. We hope that you enjoy the unmatched quality, comfort, and style of your new patio set. Every piece is meticulously considered all the way down to the smallest details, exclusively for you, by our world class design team. -
Page 3: Safety Information
Safety Information SET UP YOUR SHELTER PROPERLY Please read and understand this entire manual before attempt to assemble, operate, or install the product. If any part is missing or damaged. Do not attempt to assemble the product. Two to four people are needed for assembly. In order to avoid damage to the gazebo and its components please use appropriate tools. -
Page 4: Care And Maintenance
Care and Maintenance For cleaning, use a mild detergent solution, rinse with water, and allow to air dry. Do not use acetone, abrasive, or other special detergents as they would be harmful to the product’s finish. Due to the nature of steel, surface oxidation (rusting) will occur if this protective coating is scratched. -
Page 5: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY To prevent damage, place all parts on a soft surface during assembly. Tools required for assembly (not included): Allen wrench (included), a screwdriver, stepladder (min. 5ft.) and other safety items such as gloves, safety eyewear, and hardhat. To avoid injury from exposed sharp edges, it may be necessary to use the above safety equipment. -
Page 6: Package Contents
Pre-Assembly (continued) Package Contents... - Page 7 Pre-Assembly (continued) Package Contents ITEM DESCRIPTION QTY. ILLUSTRATION POST POST POST BASE FLANGE BASE FLANGE CROSSBAR CROSSBAR CROSSBAR CROSSBAR CROSSBAR CROSSBAR WALL MOUNT CROSSBAR CROSSBAR SHORT ROOF TUBE LONG ROOF TUBE ROOF TUBE ROOF TUBE ROOF TUBE...
- Page 8 Pre-Assembly (continued) Package Contents ITEM DESCRIPTION QTY. ILLUSTRATION ROOF TUBE ROOF PANEL EAVE TUBE EAVE TUBE CENTER CONNECTOR CORNER CONNECTOR CORNER CONNECTOR STACK MOSQUITO NET ROOF SUPPORT TUBE ROOF SUPPORT TUBE ROOF SUPPORT TUBE...
-
Page 9: Assembly Instructions
Assembly Instructions 1. Insert the Base Flange (D) into the bottom of the Post (A). Align the holes and insert two Bolts (AA), tighten with the Allen Wrench. Repeat this step for Post (B). A x 1 B x 1 AA x 4 D x 2... - Page 10 Assembly Instructions 1. Insert the Base Flange (E) into the bottom of the Post (C). Align the holes and insert two Bolts (AA), tighten with the Allen Wrench. Repeat this step for remaining Post (C). C x 2 AA x 4 E x 2...
- Page 11 Assembly Instructions 1. Insert Crossbar (G) into Crossbar (F), then align the holes and insert two Bolts (CC) through Washer (JJ) and Crossbar (F) into Crossbar (G) and Washer (JJ), secure with Nuts (GG) using Allen Wrench and Spanner . Finally cover Nuts (GG) by Bolt Cap (HH).
- Page 12 Assembly Instructions 1. Insert Crossbar (J) into Crossbar (K), then align the holes and insert two Bolts (CC) through Washer (JJ) and Crossbar (K) into Crossbar (J) and Washer (JJ), secure with Nuts (GG) using Allen Wrench and Spanner. Finally cover Nuts (GG) by Bolt Cap (HH). CC x 2 HH x 2 J x 1...
- Page 13 Assembly Instructions 1. Insert Crossbar (I) into Crossbar (H). Secure the connection with Bolt (AA) using the Allen Wrench. I x 1 H x 1 AA x 4...
- Page 14 Assembly Instructions 1. Insert Crossbar (M) into Crossbar (N). Secure the connection with Bolt (AA) using Allen Wrench. M x 1 N x 1 AA x 4...
- Page 15 Assembly Instructions 1. Insert Roof Tube (R) into Roof Tube (Q), then secure with bolt (AA). Repeat this step for remaining Roof Tube (Q & R). Q x 2 AA x 4 R x 2...
- Page 16 Assembly Instructions 1. Insert Roof Tube (T) into Roof Tube (S), then secure with bolt (AA), tighten with Allen Wrench. Repeat this step for remaining Roof Tube (Q & R). S x 1 AA x 4 T x 1...
- Page 17 Assembly Instructions 1. Attach one side of crossbar set (G, F) to Post (A). Align the holes and insert two bolts (BB). Tighten with the Allen Wrench, but do not over tighten. Repeat the procedure for the other side of crossbar set (G, F) and Post (C) by using four bolts (BB).
- Page 18 Assembly Instructions 1. Attach one side of crossbar set (J, K) to Post (B). Align the holes and insert two bolts (BB). Tighten with the Allen Wrench, but do not over tighten. Repeat the procedure for the other side of crossbar set (J, K) and Post (C) by using four bolts (BB).
- Page 19 Assembly Instructions 1. Assign the hole of the Crossbar (M) to the Post (C) by inserting bolts (BB). Tighten with the Allen Wrench, but do not over tighten. Repeat the procedure for the other Crossbar (N) to the other Post (C). 2.
- Page 20 Assembly Instructions 1. Assign the hole of the Roof Tube (S) to the assembled crossbar set (F, G) by using two bolts (AA), tighten with Allen Wrench. Repeat the procedure for Roof Tube (T) and the other assembled crossbar set (J, K). 2.
- Page 21 Assembly Instructions 1. Insert Short Roof Tube (O) to Long Roof Rube (P), repeat the procedure on the rest tubes. 2. Attach Short Roof Tube (O) to assembled crossbar set (I, H) using Bolt (AA). Attached Long Roof Tube (P) to assembled crossbar set (M, N) using Bolt (AA). Secure the roof tube set (O, P) to roof tube set (Q, R) and roof tube set (T, S) using Bolt (DD) &...
- Page 22 Assembly Instructions 1. Insert Roof Panel (U) between crossbar set (G, F) and roof tube set (O, P), attach Eave Tube (V) on the Roof Panel (U). Then insert another Roof panel (U) underneath the first roof panel, and attach with Eave Tube (V), then attached Eave Tube (W) on the Roof Panel (U) as illustrated.
- Page 23 Assembly Instructions 1. Attach Wall Mount (L) onto the Post (A). Insert Bolt (AA), Washer (JJ), Wall Mount (L) into Post (A) and tighten with Allen Wrench. Repeat the procedure for the remaining Wall Mount (L). Note: Screws to anchor your gazebo into the wall are not included. AA x 4 L x 4 JJ x 4...
- Page 24 Assembly Instructions 1. Hang the Mosquito Net (AC) on the hanger on the assembled crossbar set (F, G), (M, N) and (L, K). 2. Insert Stake (AC) through Base Flange (D) and (E) into ground. AB x 12 AC x 1...
- Page 25 Assembly Instructions 1. Finally cover all bolt holes by Plastic Cap (II). II x 20...
- Page 26 Assembly Instructions 1. The gazebo roof may be overloaded while heavy raining or snowing. Locate Roof Support Tube (AD) under the crossbar set (H, I). Repeat the same procedure for Roof Support Tube (AE) and roof tube set (Q, R), as well as for Roof Support Tube (AF) and crossbar set (M, N).
-
Page 27: Customer Service
CUSTOMER SERVICE BOND VAST INDUSTRIAL LIMITED BONDVAST No. 174 Ding Tan Pi Tan Vill Lutsao Hsiang, Chla Yi Hsien, Tai Wan, ROC FAX: 886-5-3651 522 CUSTOMER SERVICE HOT LINE: 1-800-961-9838 SERVICE HOURS: MONDAY - FRIDAY 9:00AM - 5:00PM (PACIFIC TIME) E-MAIL: CUSTOMERSERVICE@BONDVAST.COM... - Page 28 Please refer to part numbers when reordering For questions or comments about product: Email: customerservice@bondvast.com or Call toll-free: 1-800-961-9838 Made in / Hecho en CHINA Distributed by Sears, Roebuck and Co., Hoffman Estates, IL 60179 sears.com See our extensive assortment of outdoor living products on-line at www.sears.com and www.kmart.com...
