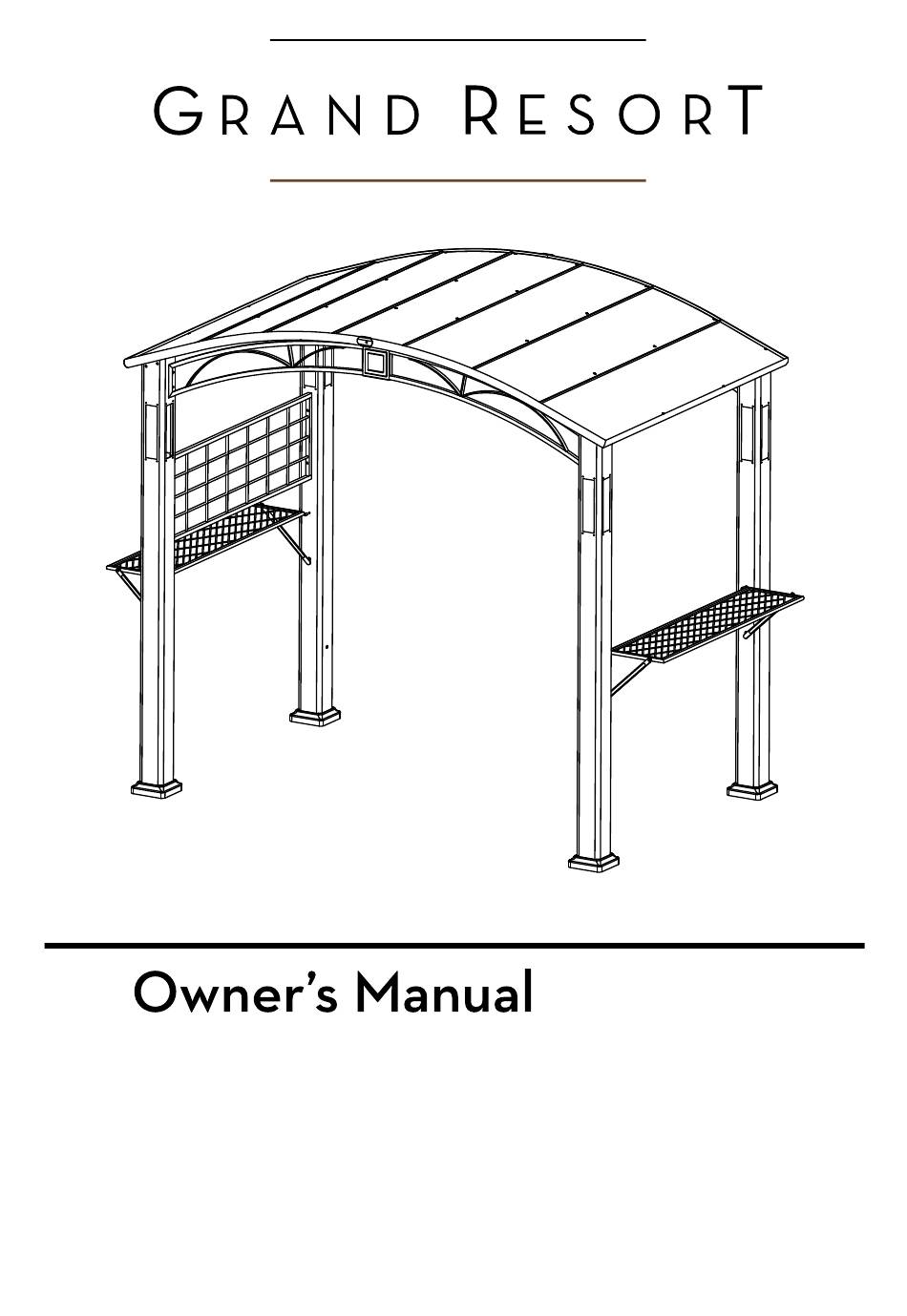

GRAND RESORT D71 M83832 Owner's Manual

5x8 grill gazebo with lights
Hide thumbs

Advertisement

Quick Links

Download this manual
5X8 Grill Gazebo With Lights
Product Code: D71 M83832
KSN Code: 01494393-0
UPC Code: 749241311079
Date of purchase: _____/ _____/ _____
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the D71 M83832 and is the answer not in the manual?

Questions and answers

Related Manuals for GRAND RESORT D71 M83832

Summary of Contents for GRAND RESORT D71 M83832

  • Page 1 5X8 Grill Gazebo With Lights Product Code: D71 M83832 KSN Code: 01494393-0 UPC Code: 749241311079 Date of purchase: _____/ _____/ _____...
  • Page 2 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If any parts is missing or damaged, do not attempt to assemble the product. Two to four people are needed for assembly. In order to avoid damage to the shelter and its components, use appropriate tools.
  • Page 4 Parts list Item Description Illustration Post A Post B Post C Post D Base cap Base flange Fence Support plate Table top Decorative plate Straight crossbar Bend crossbar Bend crossbar...
  • Page 5 Item Description Illustration Bend crossbar Bend crossbar Right long crossbar Left long crossbar Right roof tube Left roof tube Roof panel 1 Roof panel 2 Roof panel 3 Connect wire 1 Connect wire 2 Connect wire 3 AC adapter...

  • Page 6: Hardware Kit

    Item Description Illustration Stake Plastic cap Washer 1 Washer 2 Hardware Kit Item Description Illustration Screw M6 x 13mm Screw M6 x 24mm Screw M6 x 65mm Screw M6 x 35mm Screw M6 x 20mm Hex wrench...

  • Page 7: On/Off Switch

    ON/OFF SWITCH 1. Insert base cap (E) into post 1 (A), then using screw (AA) secure base flange (F) on the bottom of post (A), slide down base cap (E) as figure shown. Repeat for remaining post (B), post (C) and post (D).
  • Page 8 1. Insert decorative plate (J) into bend crossbar (M), then insert bend crossbar (M) into bend crossbar (L) and secure with screw (AA). 2. Align the boring hole at decorative plate (J) to screw hole at bend crossbar (M) and bend crossbar (L), then secure them with two screw (AA).
  • Page 9 Power plug Power plug 1. Insert decorative plate (J) into bend crossbar (O), then insert bend crossbar (O) into bend crossbar (N) and secure them with screw (AA). 2. Align the boring hole at decorative plate (J) to screw hole at ben crossbar (O) and bend crossbar (N), secure them with two screw (AA).
  • Page 10 1. Insert screw (BB) through washer (AD) and support plate (H) and washer (AD), then secure with table top (I). Repeat this step for other side of table top (I). Repeat for remaining table top (I) and support plate (H).
  • Page 11 1. Insert screw (CC) through washer (AD) and table top hole into plastic washer (AC), then secure with post (A) as figure 1 shown. Then repeat this step for secure other side of table top (I) with post (B). Then insert support plate (H) into the post (A) and post (B) as figure 4 shown. 2.
  • Page 12 1. Insert screw (CC) through washer (AD) and table top hole into plastic washer (AC), then secure with post (D) as figure 1 shown. Then repeat this step for secure other side of table top (I) with post (C). Then insert support plate (H) into the post (C) and post (D) as figure 4 shown. 2.
  • Page 13 1. Insert screw (DD) through bend crossbar set (O, N) into post (A), then secure them by using hex wrench (FF). Repeat this step for other side of bend crossbar (O, N) and post (D). Then repeat this step for bend crossbar set (L, M), post (B) and post (C).
  • Page 14 1. Insert 1 of connect wire (Y) into post (A), straight crossbar (K) and bend crossbar (O) as figure shown. 2. Insert 1 of connect wire (Y) into post (D), straight crossbar (K) and bend crossbar (N) as figure shown.
  • Page 15 1. Insert 1 of connect wire (W) into post (B), and straight crossbar (K) as figure shown. Repeat for another connect wire (W).
  • Page 16 1. Insert connect wire (X) into bend crossbar set (O, N) as figure shown.
  • Page 17 1. Insert left long crossbar (Q) into right long crossbar (P), then insert screw (EE) through straight crossbar (K) secure with right crossbar (P), repeat for other side left long crossbar (Q). Repeat for remaining left long crossbar (Q) and right long corssbar (P).
  • Page 18 1. Insert left roof tube (S) into right roof tube (R), then insert screw (EE) through left roof tube (S) secure with straight crossbar (K), and insert screw (EE) through right roof tube (R) secure with straight crossbar (K). Repeat for remaining left roof tube (S) and right roof tube (R).
  • Page 19 1. Connect the roof panel (T) to roof frame by using washer (AE) and screw (AA) as figure shown. Repeat for remaining roof panel (T).
  • Page 20 1. Fix place roof panel 2 (U) onto roof frame and secure by using screw (AA) and washer (AE) as figure shown. Repeat for remaing roof panel 2 (U).
  • Page 21 1. Fix place roof panel 3 (V) onto roof frame and secure by using screw (AA) and washer (AE) as figure shown.
  • Page 22 AB AB 1. Raise base cap (E) and secure stakes (AB) through base flange (F) into the ground. 2. Remove all gazebo assembly stickers.
  • Page 23 ON/OFF switch Power outlet 1. Please make sure to connect all cables securely. Plug power cable into power outlet.
  • Page 24 Please refer to part numbers when reordering For questions or comments about product: Email: customerservice@bondvast.com or Call toll-free: 1-800-961-9838 Made in / Hecho en CHINA Distributed by Sears, Roebuck and Co., Hoffman Estates, IL 60179 sears.com See our extensive assortment of outdoor living products on-line at www.sears.com and www.kmart.com...
