Polsen XP-2 Product Manual

Microphone signal booster

XP-2 / XP-4

MICROPHONE

SIGNAL BOOSTER

PRODUCT

MANUAL

Table of Contents

Need help?

Do you have a question about the XP-2 and is the answer not in the manual?

Page 1 XP-2 / XP-4 MICROPHONE SIGNAL BOOSTER PRODUCT MANUAL...
Page 2 T H A N K Y O U F O R C H O O S I N G P O L S E N . The Polsen XP-2 and XP-4 two-channel and four-channel mic signal boosters add 25 dB of clean and transparent gain to any low-output dynamic or ribbon microphone.
Page 3 ﬂammable gases or liquids. • Do not attempt to disassemble or repair the equipment—doing so will void the warranty, and Polsen will not be responsible for any damage. • Condenser microphones that require 48 V phantom power should use an external phantom power supply.
Page 4 S E T T I N G U P T H E M I C B O O S T E R Mute the mixer channel, turn off the speaker system, or turn the interface gain all the way down before making these connections.

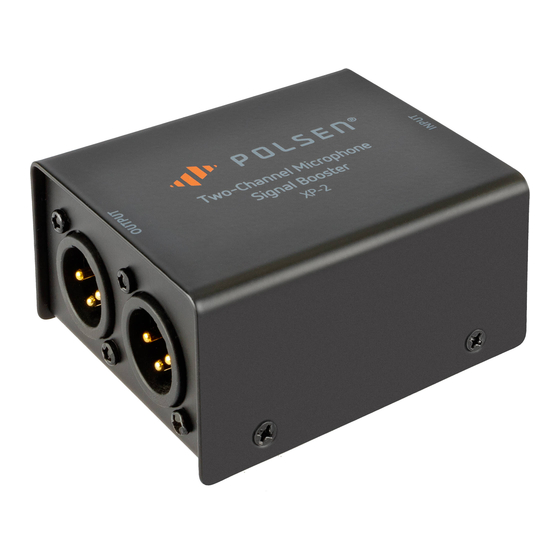

Page 5 Two-Channel Microphone Signal Booster XP-2...
Page 6 INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT...
Page 7 S P E C I F I C A T I O N S XP-2 Gain +25 dB I/O 3-pin XLR female input (×2) 3-pin XLR male output (×2) Frequency Response 10 Hz to 20 kHz ±1 dB Impedance 2 kΩ...
Page 8 O N E - Y E A R L I M I T E D W A R R A N T Y This Polsen product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later.

Xp-4
