CaryMart CM-999 Manual

Package Include:


24 x Receiver: Z-06 (Vibration & Beep mode)

1 x Transmitter: CM-999

1 x User manual

Feature:


Wireless control.

You can control the receiver with transmitter (remote control) from any place within a reliable distance, the wireless signal can pass
through walls, floors and doors.

Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.

One/several transmitters can control one/several receivers simultaneously.

If you use two or more receivers in the same place, you can set them with different codes.

Transmitting Frequency: 433MHz

Receiver:


Model No.: Z-06

3 Modes: Vibration, Beep, Vibration and Beep

Decode: Learning code

Power Supply: 2 x AAA 1.5V Battery (included)

Size: 77mm x 38mm x 17mm

Transmitter:


Model: CM-999

Channel: 999 CH

Button: 12 buttons

Remote Control Distance: 1000m / 3000ft (theoretically)

Encode: Learning code

Unit size: 117mm x 46mm x 15mm

Power Supply: 3 x 1.5V batteries (included, can be used for 12 months)

Frequency: 433MHz

Usage of transmitter:


Transmit a wireless signal: Press digits button to select a number from 1 to 999 by combination of the digits 0~9, then press the "Send"
button to transmit this wireless signal.

Delete wrong digit: If you press wrong digit before pressing the "Send" button, you can press "Delete" button to delete all numbers you
pressed previously.

Usage of receiver:


Vibration mode: Press digits button to select a number from 1 to 999 by combination of the digits 0~9, then press the "Send" button to
transmit this wireless signal, the

Beep mode: Press digits button to select a number from 1 to 999 by combination of the digits 0~9, then press the "Send" button to
transmit this wireless signal, the

Vibration & Beep mode: Press digits button to select a number from 1 to 999 by combination of the digits 0~9, then press the "Send"
button to transmit this wireless signal, the

Each channel of transmitter can control one receiver.

Changing modes: As long as press the button of receiver, you can switch those three working modes optionally. Such as press the
button of receiver, switch to beep mode from vibration mode; press the button of transmitter again, switch to vibration & beep mode;
press the button of transmitter again, switch to vibration mode.

We have learned remote control to the receiver. If you don't want the receiver to work with the remote control, you can delete all stored
codes:
Delete all stored codes: Press and hold the button of the receiver for about 5 seconds until LED light turns on and go on holding till LED
light turns off, then release the button, all stored codes have been deleted successfully. At this time, the transmitter cannot control the
receiver.


Learning remote controls:

1) Press and hold the learning button of the receiver for about 5 seconds, then release the button when LED light is on, the receiver is
in the status of Learning.
2) Press button of remote control within 10 seconds, if LED light flashes twice then off, it means Learning is successful.
If LED light is off after 10 seconds, it means Learning is failed and the receiver quits the status of Learning.
3) The receiver can learn several remote controls of different codes.

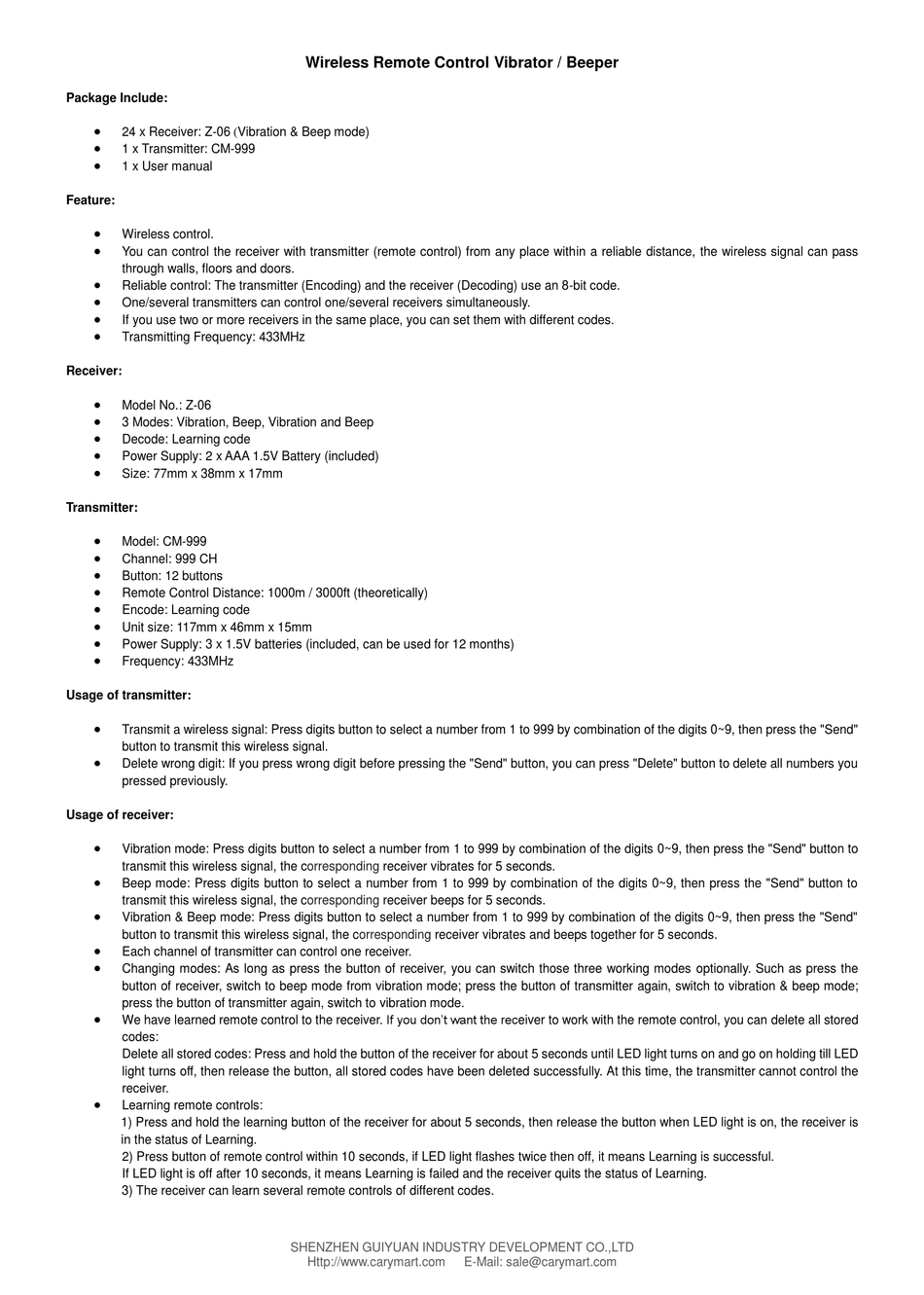

Wireless Remote Control Vibrator / Beeper
corresponding receiver vibrates for 5 seconds.
corresponding receiver beeps for 5 seconds.
corresponding receiver vibrates and beeps together for 5 seconds.
SHENZHEN GUIYUAN INDUSTRY DEVELOPMENT CO.,LTD
Http://www.carymart.com E-Mail: sale@carymart.com
