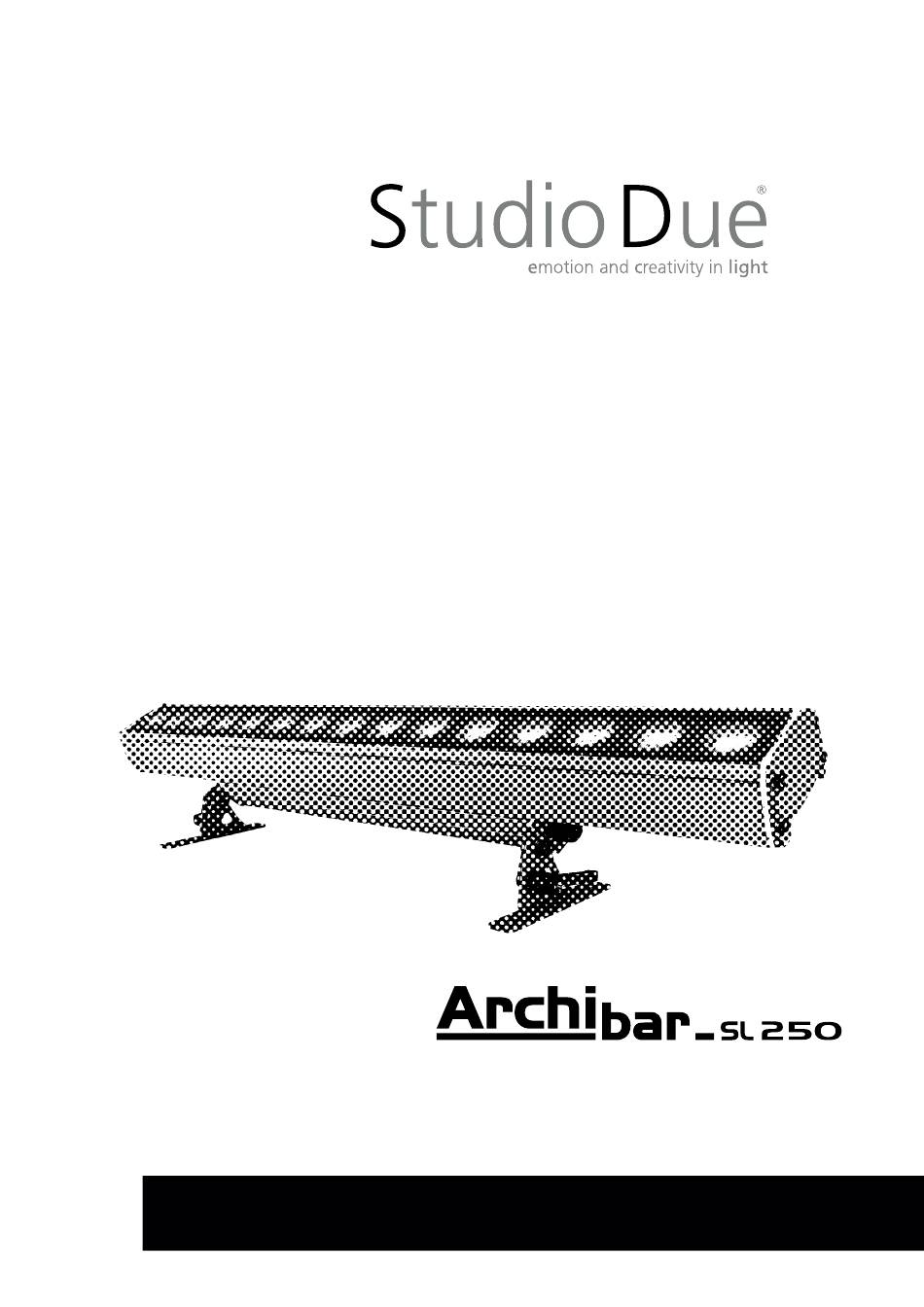

  • Page 1 RGBW User manual Manuale d’uso...
  • Page 2 4 PIN connector - Connettore 4 PIN 4 PIN connectors 4 or 4 or FEMALE MALE WARNING SIGNAL IMPORTANTE GROUND/RETURN/OV N.C. DATA COMPLEMENT ( -, INVERTED) DATA TRUE ( +, NON INVERTED) In questo connettore potete trovare il NUMBER 4 or the GROUND sign. NUMERO 4 o il simbolo della TERRA.
  • Page 3 INDEX Page 4 - Safety informations / Informazioni di sicurezza Page 5 - Introduction / Introduzione Page 6 - Technical features / Caratteristiche tecniche Page 7 - Example of connection DMX controller-fixtures / Esempio di collegamento centralina DMX-fari Page 8 - Main supply connection / Collegamento fonte di alimentazione Page 9 - DMX signal connection / Collegamento segnale DMX Page 9 - Rear view fixture connections / Vista posteriore connessioni apparecchio Page 10 - Control panel functions -Menu / Funzioni del pannello di controllo - Menu...
  • Page 4 WARNING SAFETY INFORMATION (service personnel) READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. •PROTECTION AGAINST DANGEROUS MATTERS At the end of its life, must be collected separately. It shouldn’t be thrown as urban waste and neither released in the environment.
  • Page 5 INTRODUCTION Thanks for using Archibar SL250 RGBW. Top product within Archibar series, is the Archibar SL250 RGBW equipped with high powerful LEDs. Robust and reliable case, this luminarie, IP67 rated is suitable for architectural and entertaimnent applications. It has a modern and appealing style which reflect the italian design.

  • Page 6: Technical Features

    TECHNICAL FEATURES / CARATTERISTICHE TECNICHE 60cm - 10 LEDs * 90cm - 15 LEDs 120cm - 20 LEDs 150cm - 25 LEDs TECHNICAL FEATURES www.studiodue.com ITEM FIXTURE 90cm standard 60cm 120cm 150cm LEDs RGBW 15 (5050-20W-RTBH) 10 (5050-20W-RTBH) 20 (5050-20W-RTBH) 25 (5050-20W-RTBH) Expected LEDs lifetime: 50.000 hours...
  • Page 7 EXAMPLE OF CONNECTION DMX CONTROLLER - FIXTURES / ESEMPIO DI COLLEGAMENTO CENTRALINA - FARI Example 1/ Esempio 1 Example 2 / Esempio 2 Example 3 / Esempio 3 NORMAL AND MASTER/SLAVE FUNCTIONS / FUNZIONI NORMAL E MASTER/SLAVE NORMAL MASTER/SLAVE rel.1 - 12/22 - Studio Due...

  • Page 8: High Voltage

    CONNECTION TO THE MAIN POWER / CONNESSIONE ALLA RETE ELETTRICA This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. IMPORTANT: to ensure the IP67 protection rating, in case of replacement of the conductor cable, refer to the CONDUCTOR SIZE TABLE Questo apparecchio necessita di messa a terra.
  • Page 9 CONNECTION TO THE DMX SIGNAL / CONNESSIONE AL SEGNALE DMX DMX TERMINAL LINE The wrong connection of the terminal line or its non-connection are probably the most frequent reasons for the defective functioning of the DMX line. The terminator is a terminal resistor fitted at the end of the cable furthest from the transmitter. The terminal resistor should have the same value as the impedance of the connection cable.
  • Page 10 BUTTON FUNCTIONS - FUNZIONI DEI PULSANTI IMPORTANT If you want to enter into setup mode, you must follow the start procedure: Se desiderate entrare nella modalità setup, dovete seguire la procedura di accesso: Press keys in sequence / Premere i tasti in sequenza: ENTER >>...
  • Page 11 MENU LIST and BUTTON FUNCTIONS - ELENCO MENU’ e FUNZIONI DEI PULSANTI DMX led Switching on the fixture you can see the model and the software version. For example: All’accensione, viene visualizzato il modello di apparecchio e la versione software. Per esempio: -->...
  • Page 12 menu Auto (AUto) > Auto mode functions / Funzioni auto mode press ENTER for submenu / premere ENTER per i sottomenu (Mode) Set the DMX/SLAVE/MASTER mode / Imposta la modalità DMX/SLAVE/MASTER > Select the value no .. sl .. pr01 .. pr02 .. with the UP/DOWN buttons. Press ENTER. >...
  • Page 13 menu Wireless (WLSS) > Wireless functions / Funzioni wireless press ENTER for submenu / premere ENTER per i sottomenu (EnAb) Enable wireless Enable or disable the wireless reception / Consente o non consente la ricezione wireless The cable reception is disabled / La ricezione via cavo viene disabilitata >...
  • Page 14 menu Service (Srvc) > Service functions / Funzioni di servizio press ENTER for submenu / premere ENTER per i sottomenu (FrMt) Restore the factory setting (Require confirmation) FM-? Ripristina le impostazioni di fabbrica (Viene chiesta conferma) FM-? > Select the value off .. on with the UP/DOWN buttons. Press ENTER. >...
  • Page 15 DMX CHANNELS / CANALI DMX • 9 Channels mode • 9 Channels mode with CYM emulation • Modalità 9 Canali • Modalità 9 Canali con emulazione CYM CH1: CH1: Cyan CH2: Green CH2: Yellow CH3: Blue CH3: Magenta CH4: White CH4: White CH5:...
  • Page 16 DMX Channels list 5Ch / Lista dei canali DMX 5Ch GREEN BLUE WHITE Dimmer DMX Channels list 4Ch / Lista dei canali DMX 4Ch GREEN BLUE WHITE rel.1 - 12/22 - Studio Due...
  • Page 17 BUILT IN PROGRAMS / LISTA DEI GIOCHI Here below the list of 24 preset of the fixture. Qui di seguito la lista dei 24 giochi presenti nell’apparecchio. Preset 1 Fixed RED Preset 2 Fixed GREEN Preset 3 Fixed BLUE Preset 4 Fixed WHITE (w) Preset 5 Fixed MAGENTA...
  • Page 18 PHYSICAL / DIMENSIONI rel.1 - 12/22 - Studio Due...
  • Page 19 Studio Due Trade s.r.l. Doc. 220514 REV 1 - 11/22 StudioDue ARCHIBAR SL250 RGBW IP67 Dichiarazione di conformità Declaration of conformity La ditta: Studio Due Trade s.r.l. The firm: dichiara sotto la propria responsabilità che il prodotto: declare under our sole responsability that the product:...
  • Page 20 this page is intentionally left blank / questa pagina è stata lasciata intenzionalmente bianca rel.1 - 12/22 - Studio Due...
  • Page 21 this page is intentionally left blank / questa pagina è stata lasciata intenzionalmente bianca rel.1 - 12/22 - Studio Due...
  • Page 22 this page is intentionally left blank / questa pagina è stata lasciata intenzionalmente bianca rel.1 - 12/22 - Studio Due...
  • Page 23 WARRANTY / GARANZIA Warranty CARD Company name: ..........................Mr./Mrs./Miss: ..........................Address: ............................Tel. or E-mail : ..........................Dealer: ..................... SALE CONDITIONS 1) Price quoted are not inclusive of lamp and package. Package charge is 2% on the net price for all the items. These prices should be subject to possible variations for eventual rises of production costs or duties.
  • Page 24 Head Office: STUDIO DUE s.r.l. (I) Str. Poggino, 100 - 01100 Viterbo (Italy) tel. +39.0761.352520 fax +39.0761.352653 info@studiodue.com STUDIO DUE (UK) 3 Encon Court Owl Close Moulton Park Industrial Estate Northampton England UK - NN3 6 HZ tel. +44.1933.650.820 info@studiodue.co.uk www.studiodue.com...
