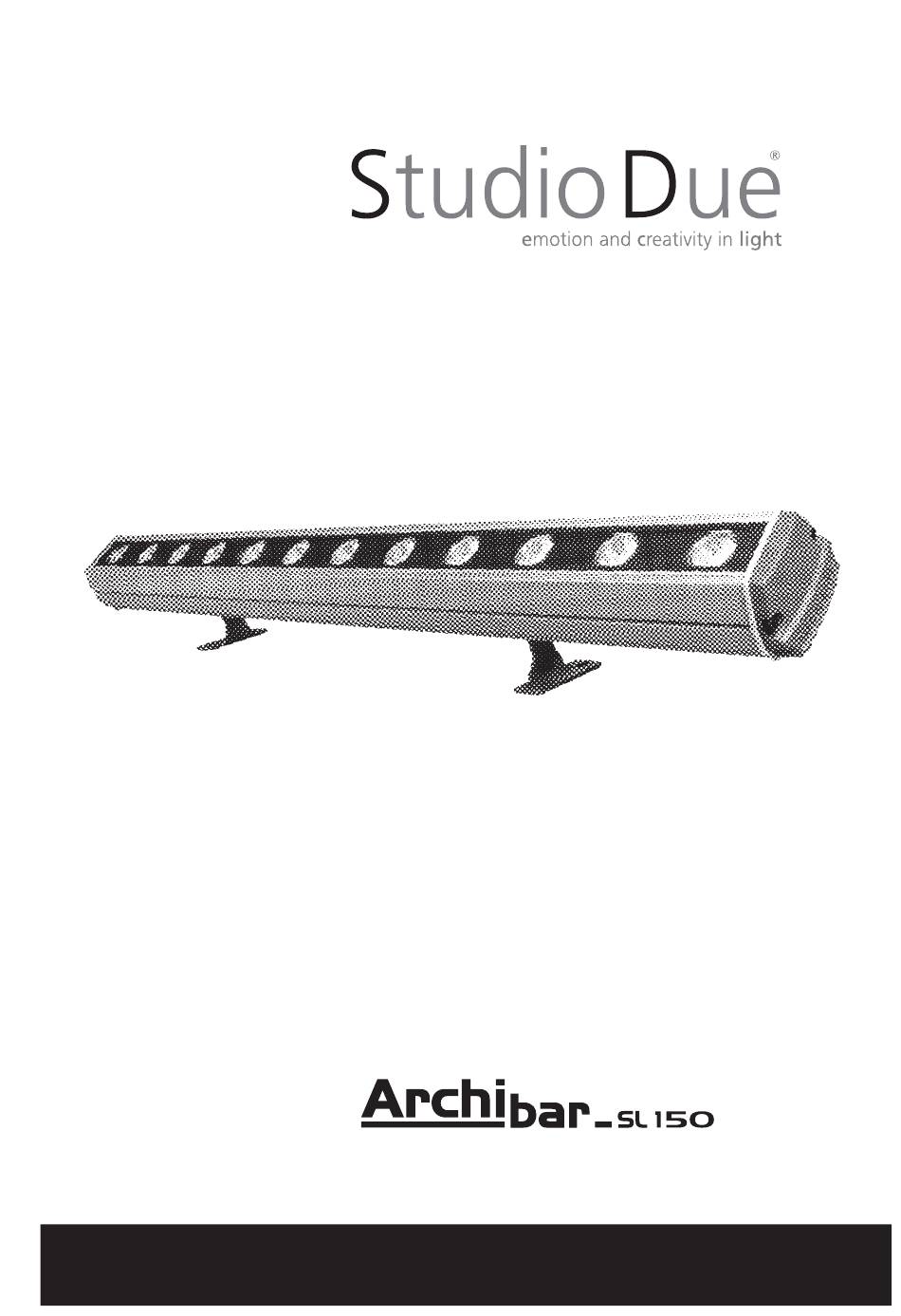

  • Page 1 rgbw/fc User manual for art. 1840 Manuale d’uso per art. 1840...
  • Page 2 this page is intentionally left blank / questa pagina è stata lasciata intenzionalmente bianca rel.3 - 04/20 - Studio Due...
  • Page 3 INDEX Page 4 - Safety informations / Informazioni di sicurezza Page 5 - Introduction / Introduzione Page 6 - Technical features / Caratteristiche tecniche Page 7 - Example of connection DMX controller-fixtures / Esempio di collegamento centralina DMX-fari Page 8 - Main supply connection / Collegamento fonte di alimentazione Page 9 - DMX signal connection / Collegamento segnale DMX Page 9 - Rear view fixture connections / Vista posteriore connessioni apparecchio Page 10 - Setup and configuration of DRS Setup - Configurazione del DRS Setup...
  • Page 4 WARNING SAFETY INFORMATION (service personnel) READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. •PROTECTION AGAINST DANGEROUS MATTERS At the end of its life, must be collected separately. It shouldn’t be thrown as urban waste and neither released in the environment.
  • Page 5 INTRODUCTION Thanks for using Archibar SL150 RDM RGBW/FC. The ARCHIBAR SL150 RDM (900mm version) is equipped with 12 RGBW/FC High Power LEDs. Available in RGBW/FC and MONOCHROMATIC light source as well as in WHITE BALANCE. Available in 4 different measures: •...
  • Page 6 TECHNICAL FEATURES / CARATTERISTICHE TECNICHE 60cm - 8 LEDs * 90cm - 12 LEDs standard 90cm 120cm - 16 LEDs 150cm - 20 LEDs • SOURCE n. 12 (5050-20W-RTBH) LEDs Total out lumen: R 750, G 1800, B 300, W 1700 Total light power: 40W •...
  • Page 7 EXAMPLE OF CONNECTION DMX CONTROLLER - FIXTURES / ESEMPIO DI COLLEGAMENTO CENTRALINA - FARI Example 1/ Esempio 1 Example 2 / Esempio 2 Example 3 / Esempio 3 NORMAL AND MASTER/SLAVE FUNCTIONS / FUNZIONI NORMAL E MASTER/SLAVE NORMAL MASTER/SLAVE =C007 rel.3 - 04/20 - Studio Due...
  • Page 8 CONNECTION TO THE MAIN POWER / CONNESSIONE ALLA RETE ELETTRICA This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. IMPORTANT: to ensure the IP67 protection rating, in case of replacement of the conductor cable, refer to the CONDUCTOR SIZE TABLE Questo apparecchio necessita di messa a terra.
  • Page 9 CONNECTION TO THE DMX SIGNAL / CONNESSIONE AL SEGNALE DMX DMX TERMINAL LINE The wrong connection of the terminal line or its non-connection are probably the most frequent reasons for the defective functioning of the DMX line. The terminator is a terminal resistor fitted at the end of the cable furthest from the transmitter. The terminal resistor should have the same value as the impedance of the connection cable.

  • Page 10: Main Power

    SETUP and CONFIGURATION by DRS - DMX REMOTE SETUP SETTAGGIO e CONFIGURAZIONE tramite DRS - DMX REMOTE SETUP The DRS it’s a new concept of professional LED Lighting fixtures suitable for outdoor permanent installations. The LED Lighting fixtures can be driven via DMX through a specific electronic device, the DRS DMX Remote Setup, that grant the possibility to set up the scenarios and the games remotely.
  • Page 11 DRS (DMX Remote Setup) FUNCTIONING To make the set-up of the various fixture parameter, proceed as follow: •Disconnect the fixture to set-up from the other DMX/RDM devices • Connect the DMX cable of the fixture to the DRS commander • Switch on the DRS commander and wait for the 8888 sign (press any key) •...
  • Page 12 ARCHILBAR 150 DRS RGBW MENU’ LIST ELENCO MENU’ ARCHIBAR 150 DRS RGBW Switching on the fixture you can see the model and the software version. For example: All’accensione, viene visualizzato il modello di apparecchio e la versione software. Per esempio: -->...
  • Page 13 DMX CHANNELS / CANALI DMX 9 Channels mode 9 Channels mode with CYM emulation Modalità 9 Canali Modalità 9 Canali con emulazione CYM CH1: CH1: Cyan CH2: Green CH2: Yellow CH3: Blue CH3: Magenta CH4: White CH4: White CH5: Strobe CH5: Strobe CH6:...
  • Page 14 DMX Channels list 6Ch / Lista dei canali DMX 6Ch 8 BIT FUNCTION GREEN BLUE WHITE DIMMER RAINBOW DMX Channels list 5Ch / Lista dei canali DMX 5Ch 8 BIT FUNCTION GREEN BLUE WHITE DIMMER DMX Channels list 4Ch / Lista dei canali DMX 4Ch 8 BIT FUNCTION GREEN...
