- Page 1 RGBW - MONOCHROMATIC User manual for art. 2020 - 2021 - 2022 Manuale d’uso per art. 2020 - 2021 - 2022...
- Page 2 4 PIN connector - Connettore 4 PIN 4 PIN connectors 4 or 4 or FEMALE MALE WARNING SIGNAL IMPORTANTE GROUND/RETURN/OV N.C. DATA COMPLEMENT ( -, INVERTED) DATA TRUE ( +, NON INVERTED) In questo connettore potete trovare il NUMBER 4 or the GROUND sign. NUMERO 4 o il simbolo della TERRA.
- Page 3 INDEX Page 4 Safety informations / Informazioni di sicurezza Page 5 Introduction / Introduzione Page 6 Technical features / Caratteristiche tecniche Page 8 Main supply connection / Collegamento fonte di alimentazione Page 9 DMX connections / Connessioni DMX Page 10 Example of connections DMX-Controller / Esempi di collegamento DMX-Controller Page 11 Setup and configuration (touch control panel) / Configurazione e settaggio (pannello di controllo touch)
- Page 4 ........................ENG SAFETY INFORMATION (service personnel) IMPORTANT ! READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. • PROTECTION AGAINST DANGEROUS MATTERS At the end of its life, must be collected separately. It shouldn’t be thrown as urban waste and neither released in the environment. It must be collected from the nearest special waste collection point or consigned to your dealer that provides the service.

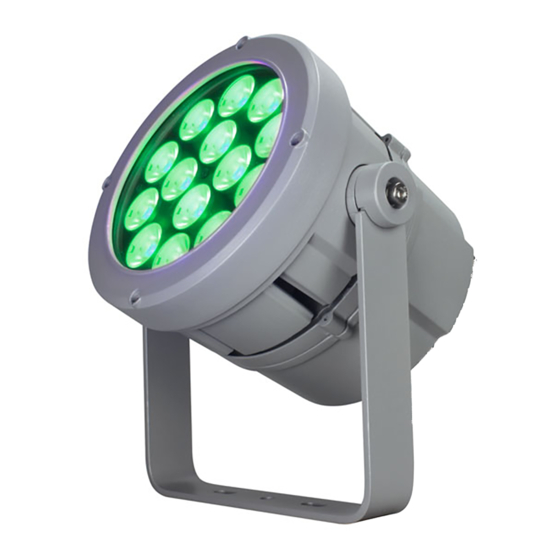

- Page 5 ONLY THE CONSIGNEE (PERSON OR COMPANY) CAN CLAIM FOR THESE DAMAGES. Thank you for choosing one of the PARLED300 series appliances, our compact IP67 SPOT projector. Suitable for permanent architectural installations, is flexible for mounting on poles, walls or on the ground.
- Page 6 ........................ENG / ITA TECHNICAL FEATURES / CARATTERISTICHE TECNICHE ITEM FIXTURE [ KEY features ] LEDs RGBW 14 (5050-20W) RGB-NW (white 4000K) Total light power 110W Lumen R1700, G3400, B650, W3500 Optics 15° (38mm lenses) PMMA 8N and ultra clear white tempered glass on request: 8°, 25, 40°, 60°, 10°x30°...
- Page 7 ........................ENG / ITA TECHNICAL FEATURES / CARATTERISTICHE TECNICHE warm neutral cool ITEM FIXTURE [ KEY features ] LEDs Monochromatic 14 NICHIA NV4L144 - CCT4000K (available 2700K, 5000K) Total light power Lumen 13000 Optics 15° (38mm lenses) PMMA 8N and ultra clear white tempered glass on request: 8°, 25, 40°, 60°, 10°x30°...
- Page 8 ........................ENG / ITA CONNECTION TO THE MAIN POWER / CONNESSIONE ALLA RETE ELETTRICA This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. IMPORTANT: to ensure the protection rating of the fixture, in case of replacement of the conductor cable, refer to the CONDUCTOR SIZE TABLE Questo apparecchio necessita di messa a terra.
- Page 9 ........................ENG / ITA CONNECTION TO THE DMX SIGNAL / CONNESSIONE AL SEGNALE DMX DMX TERMINAL LINE The wrong connection of the terminal line or its non-connection are probably the most frequent reasons of the lower DMX signal. The terminator is a terminal resistor fitted at the end of the cable. (see pict. 1) Termination resistor The terminal resistor should have the same value as the impedance of the connection cable (120 Ohm).
- Page 10 ........................ENG / ITA EXAMPLE OF CONNECTION DMX CONTROLLER - FIXTURES / ESEMPIO DI COLLEGAMENTO CENTRALINA - FARI Example 1/ Esempio 1 DMX out Last fixture/ Ultimo apparecchio fixture / fixture / apparecchio DMX-RDM console fixture / fixture / apparecchio apparecchio apparecchio Termination resistor/...
-
Page 11: Main Power
........................ENG SETUP AND CONFIGURATION BY DRS - DMX REMOTE SETUP The DRS it’s a new concept of professional LED Lighting fixtures suitable for outdoor permanent installations. The LED Lighting fixtures can be driven via DMX through a specific electronic device, the DRS DMX Remote Setup, that grant the possibility to set up the scenarios and the games remotely. - Page 12 ........................ENG SETUP AND CONFIGURATION BY DRS - DMX REMOTE SETUP dimmable version only / solo versione dimmerabile To make the set-up of the various fixture parameter, proceed as follow: •Disconnect the fixture to set-up from the other DMX/RDM devices •...
- Page 13 ........................ENG / ITA DRS MENU’ LIST / ELENCO MENU DRS Switching on the fixture you can see the model and the software version. For example: All’accensione, viene visualizzato il modello di apparecchio e la versione software. Per esempio: --> PL300 --> 1_00 - than it’s shown the fist menu / poi viene visualizzato il primo menu Address (Addr) Set the DMX channel address / Imposta il canale DMX...
- Page 14 Halogen Simulation (HALS) Set the alogen simulation function mode Imposta il funzionamento della modalità simulazione lampada alogena. (OFF, Mod1, Mod2) > Select the value oFF .. MId1 .. MId2 with the UP/DOWN buttons. Press ENTER. > Selezionate il valore desiderato oFF .. MId1 .. MId2 con i tasti UP/DOWN. Premere ENTER. CYM Emulation (CYMS) Set the fixture to work in CYM or RGB emulation system Imposta l’apparecchio per funzionare come emulatore di sistema CYM o RGB.
- Page 15 DMX Channels list 9Ch / Lista dei canali DMX 9Ch 8 BIT FUNCTION GREEN BLUE WHITE FLASH 0,4Hz / 25Hz RAINBOW - FLASH 0,4Hz / 25Hz OPEN STROBE 2 -127 128 -255 0 - 1 DIMMER LED FADE FAST - 0,1 sec. SLOW 0 = CUT TIME...
- Page 16 DMX Channels list 5Ch / Lista dei canali DMX 5Ch 8 BIT FUNCTION GREEN BLUE WHITE DIMMER DMX Channels list 4Ch / Lista dei canali DMX 4Ch 8 BIT FUNCTION GREEN BLUE WHITE rel. 1_05/20 - Studio Due...
- Page 17 ........................ENG / ITA DMX CHANNELS / CANALI DMX - (*) DMX line for Dimmable version. (setting 3ch or 1ch) -------------------------------------------------------------------------------------------------------------- - (*) linea DMX versione Dimmerabile. (settaggio 3ch o 1ch) 8 BIT FUNCTION DIMMER FLASH 0,4Hz / 25Hz RAINBOW - FLASH 0,4Hz / 25Hz OPEN STROBE 128 -255...
- Page 18 PHYSICAL / DIMENSIONI 360° 20x10 Ø10 rel. 1_05/20 - Studio Due...
-
Page 19: Warranty Card
WARRANTY / GARANZIA Warranty CARD Company name: ..........................Mr./Mrs./Miss: ..........................Address: ............................Tel. or E-mail : ..........................Dealer: ..................... SALE CONDITIONS 1) Price quoted are not inclusive of lamp and package. Package charge is 2% on the net price for all the items. These prices should be subject to possible variations for eventual rises of production costs or duties. - Page 20 StudioDue Doc. 2020 REV 1 - 06/20 PARLED 300PRO DRS/RDM IP67 - IP20 06/2020 Dichiarazione di conformità Declaration of conformity La ditta: STUDIO DUE The firm: Strada Poggino, 100 01100 VITERBO ITALY dichiara sotto la propria responsabilità che il prodotto:...
- Page 21 this page is intentionally left blank / questa pagina è stata lasciata intenzionalmente bianca rel.1_05/20 - Studio Due...
- Page 22 this page is intentionally left blank / questa pagina è stata lasciata intenzionalmente bianca rel. 1_05/20 - Studio Due...
- Page 23 this page is intentionally left blank / questa pagina è stata lasciata intenzionalmente bianca rel.1_05/20 - Studio Due...
- Page 24 Head Office: STUDIO DUE s.r.l. (I) Str. Poggino, 100 - 01100 Viterbo (Italy) tel. +39.0761.352520 fax +39.0761.352653 info@studiodue.com STUDIO DUE (UK) 3 Encon Court Owl Close Moulton Park Industrial Estate Northampton England UK - NN3 6 HZ tel. +44.1933.650.820 info@studiodue.co.uk www.studiodue.com...
