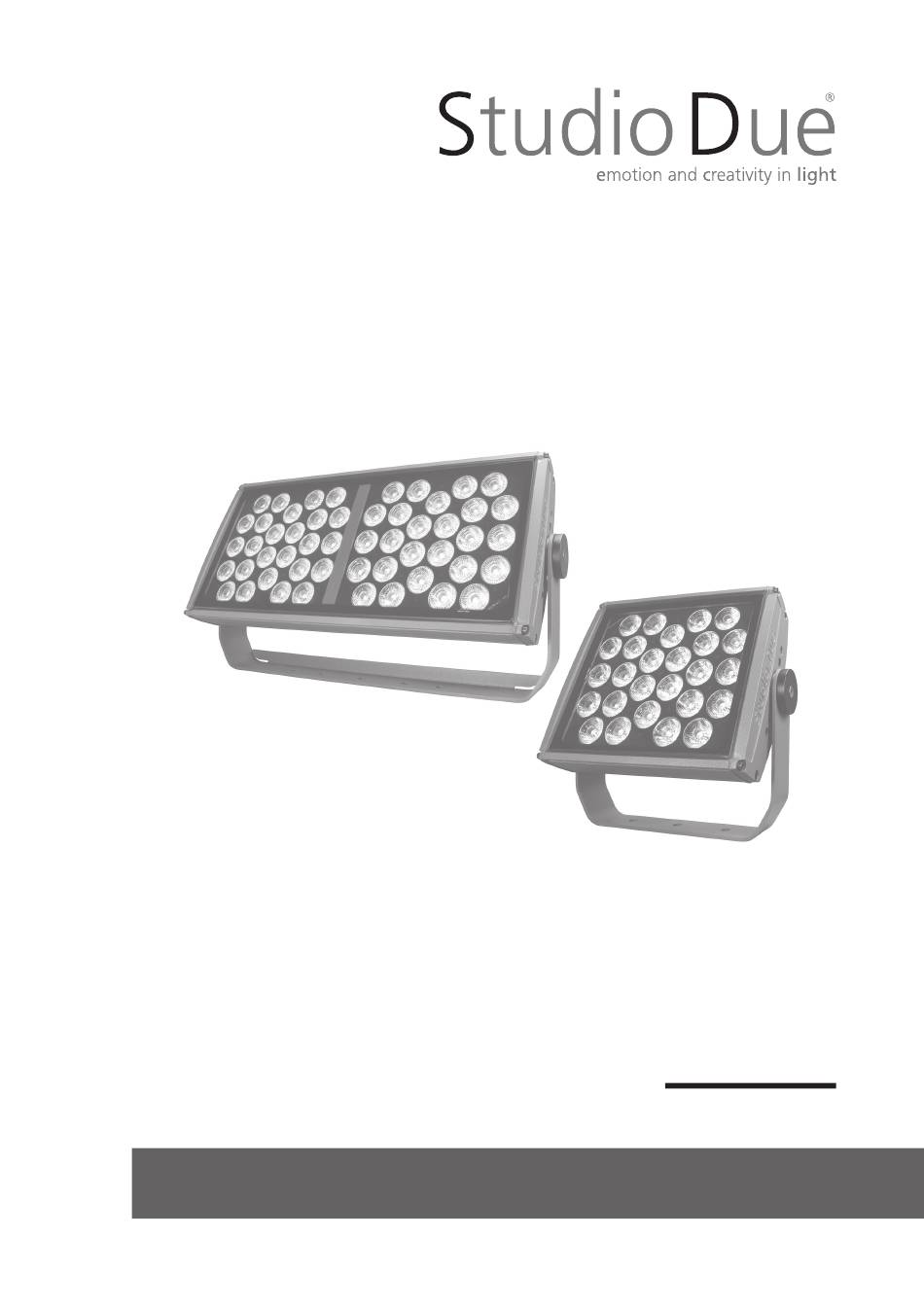

- Page 1 COMPACT 52 COMPACT 52 COMPACT 26 COMPACT 26 Compact Compact series series RGBWA User manual Manuale d’uso...
- Page 2 4 PIN connector - Connettore 4 PIN 4 PIN connectors 4 or 4 or FEMALE MALE WARNING DMX output DMX output DMX input DMX inpu SIGNAL IMPORTANTE GROUND/RETURN/OV N.C. SHIELD GROUND/RETURN/OV DATA COMPLEMENT ( -, INVERTED) DATA TRUE ( +, NON INVERTED) INNER CONDUCTOR DATA TRUE ( +, NON INVER In this connector you can find the...
- Page 3 INDEX Page 4 Safety informations / Informazioni di sicurezza Page 5 Introduction / Introduzione Page 6 Technical features / Caratteristiche tecniche Page 8 Main supply connection / Collegamento fonte di alimentazione Page 9 DMX connections / Connessioni DMX Page 10 Example of connections DMX-Controller / Esempi di collegamento DMX-Controller Page 11 Setup and configuration (touch control panel) / Configurazione e settaggio (pannello di controllo touch)
- Page 4 ........................ENG SAFETY INFORMATION (service personnel) IMPORTANT ! READ ALL CAUTIONS AND WARNINGS PRIOR TO OPERATE THIS EQUIPMENT. INSTRUCTION TO PREVENT INJURY OR DAMAGE DUE TO ELECTRIC SHOCK, FIRE, MECHANICAL HAZARDS, DANGEROUS MATTERS. • PROTECTION AGAINST DANGEROUS MATTERS At the end of its life, must be collected separately. It shouldn’t be thrown as urban waste and neither released in the environment. It must be collected from the nearest special waste collection point or consigned to your dealer that provides the service.
- Page 5 ........................ENG INTRODUCTION CHECK THAT THE FIXTURE HAS NOT BEEN DAMAGED DURING TRANSPORT. IF IT HAS BEEN DAMAGED OR IT DOES NOT WORK, ADDRESS THE SELLER. WHETHER THE FIXTURE HAS BEEN SHIPPED TO YOU DIRECTLY, PLEASE CONTACT THE SHIPPING COMPANY. ONLY THE CONSIGNEE (PERSON OR COMPANY) CAN CLAIM FOR THESE DAMAGES.
- Page 6 ........................ENG / ITA COMPACT 52 TECHNICAL FEATURES / CARATTERISTICHE TECNICHE ITEM FIXTURE [ KEY features ] LEDs RGBWA 52 (8W) Total LED out lumen R 4000lm , G 7000lm, B 2000lm, W 8000lm, A 3000lm Optics 42 mm PMMA lenses 15°, 20°, 25°, 35°...
- Page 7 ........................ENG / ITA COMPACT 26 TECHNICAL FEATURES / CARATTERISTICHE TECNICHE ITEM FIXTURE [ KEY features ] LEDs RGBWA 26 (8W) Total LED out lumen R 2000lm , G 3500lm, B 1000lm, W 4000lm, A 1500lm Optics 42 mm PMMA lenses 15°, 20°, 25°, 35°...
- Page 8 ........................ENG / ITA CONNECTION TO THE MAIN POWER / CONNESSIONE ALLA RETE ELETTRICA This equipment must be earthed. Class I equipment. The power supply cord includes a protective earthing conductor as part of the cord. IMPORTANT: to ensure the protection rating of the fixture, in case of replacement of the conductor cable, refer to the CONDUCTOR SIZE TABLE Questo apparecchio necessita di messa a terra.
- Page 9 ........................ENG / ITA 120 Ohm CONNECTION TO THE DMX SIGNAL / CONNESSIONE AL SEGNALE DMX DMX output DMX output DMX input DMX input Termination resistor Terminale di linea DMX TERMINAL LINE The wrong connection of the terminal line or its non-connection are probably the most frequent reasons of the lower DMX SHIELD GROUND/RETURN/OV signal.
- Page 10 ........................ENG / ITA EXAMPLE OF CONNECTION DMX CONTROLLER - FIXTURES / ESEMPIO DI COLLEGAMENTO CENTRALINA - FARI Example 1/ Esempio 1 DMX out Last fixture/ Ultimo apparecchio fixture / fixture / apparecchio fixture / fixture / apparecchio apparecchio apparecchio Termination resistor/ Terminale di linea Example 2 / Esempio 2...
-
Page 11: Main Power
........................ENG SETUP AND CONFIGURATION BY DRS - DMX REMOTE SETUP The DRS it’s a new concept of professional LED Lighting fixtures suitable for outdoor permanent installations. The LED Lighting fixtures can be driven via DMX through a specific electronic device, the DRS DMX Remote Setup, that grant the possibility to set up the scenarios and the games remotely. - Page 12 ........................ENG SETUP AND CONFIGURATION BY DRS - DMX REMOTE SETUP dimmable version only / solo versione dimmerabile To make the set-up of the various fixture parameter, proceed as follow: •Disconnect the fixture to set-up from the other DMX/RDM devices •...
- Page 13 ........................ENG / ITA DRS MENU’ LIST / ELENCO MENU DRS Switching on the fixture you can see the model and the software version. For example: All’accensione, viene visualizzato il modello di apparecchio e la versione software. Per esempio: --> COMPACT --> 1_00 - than it’s shown the fist menu / poi viene visualizzato il primo menu Address (Addr) Set the DMX channel address / Imposta il canale DMX...
- Page 14 Reset (rSEt) Execute a reset of the electronic section / Esegue un reset della parte elettronica. (rS?) Format (FrMt) Restore the factory setting (Require confirmation). Ripristina le impostazioni di fabbrica (Viene chiesta conferma). (Fm?) DMX Channels list 10Ch / Lista dei canali DMX 10Ch 8 BIT FUNCTION GREEN...
- Page 15 DMX Channels list 6Ch / Lista dei canali DMX 6Ch 8 BIT FUNCTION GREEN BLUE WHITE AMBER DIMMER DMX Channels list 5Ch / Lista dei canali DMX 5Ch 8 BIT FUNCTION GREEN BLUE WHITE AMBER rel.1_11/21 - Studio Due...
- Page 16 COMPACT 52 PHYSICAL / DIMENSIONI bracket 120,00 640,00 356,00 20,00 160,00 bracket 640,00 0,00 COMPACT 26 PHYSICAL / DIMENSIONI 356,00 120,00 356,00 120,00 160,00 bracket 640,00 120,00 160,00 bracket 640,00 120,00 rel. 1_11/21 - Studio Due...
- Page 17 rel.1_11/21 - Studio Due...
- Page 18 rel. 1_11/21 - Studio Due...
-
Page 19: Warranty Card
WARRANTY / GARANZIA Warranty CARD Company name: ..........................Mr./Mrs./Miss: ..........................Address: ............................Tel. or E-mail : ..........................Dealer: ..................... SALE CONDITIONS 1) Price quoted are not inclusive of lamp and package. Package charge is 2% on the net price for all the items. These prices should be subject to possible variations for eventual rises of production costs or duties. - Page 20 Head Office: STUDIO DUE s.r.l. (I) Str. Poggino, 100 - 01100 Viterbo (Italy) tel. +39.0761.352520 fax +39.0761.352653 info@studiodue.com STUDIO DUE (UK) 3 Encon Court Owl Close Moulton Park Industrial Estate Northampton England UK - NN3 6 HZ tel. +44.1933.650.820 info@studiodue.co.uk www.studiodue.com...
