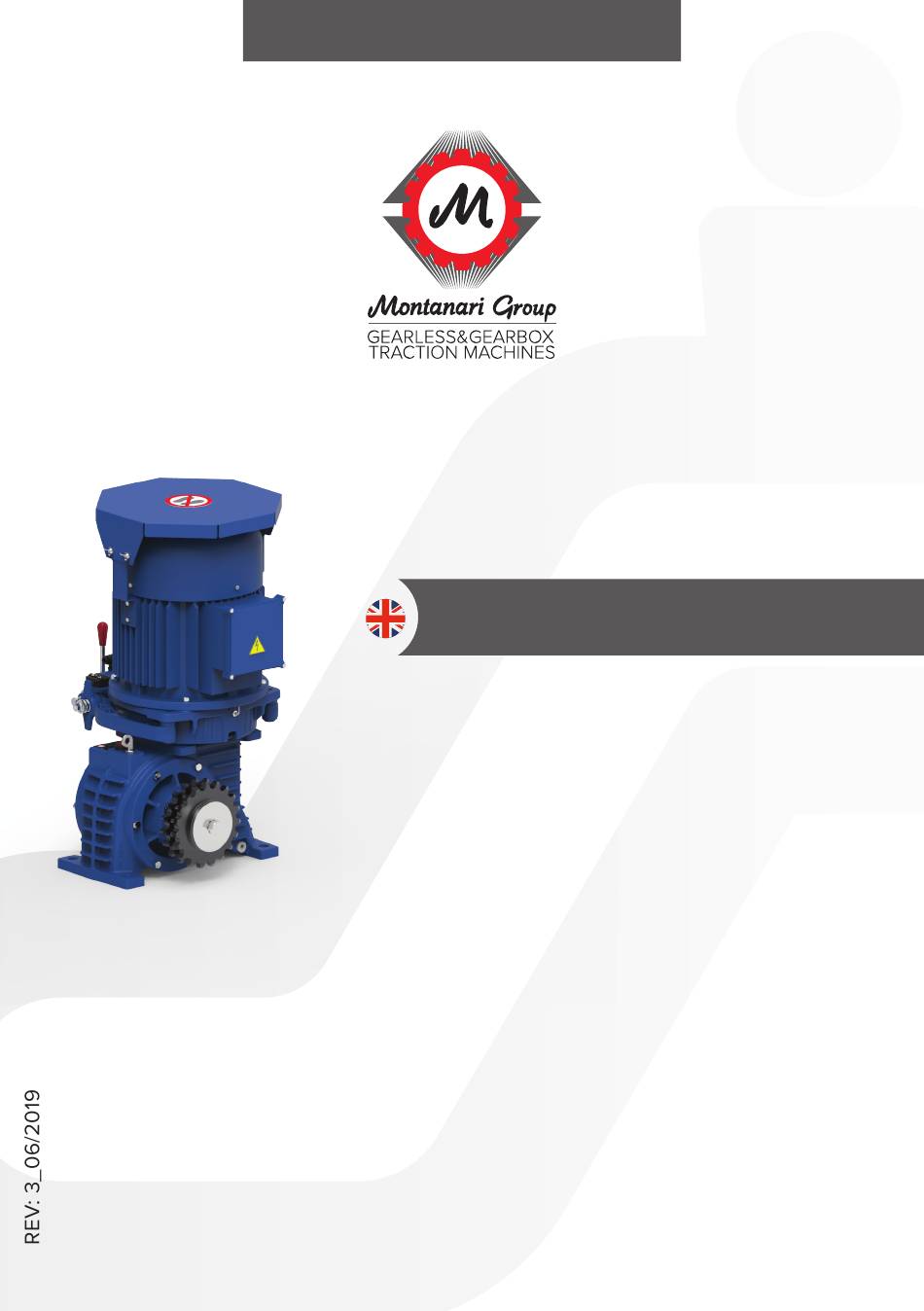

- Page 1 MANUALS INSTALLATION, USE AND MAINTENANCE GEARBOXES FOR ESCALATORS AND MOVING WALKWAYS M73ES www.montanarigiulio.com...
- Page 3 Thank you for choosing a Montanari gearbox. For over 45 years, Montanari Group has been focused on providing its customers with the best traction machines and components for lifts and escalators. We are proud to have you as a customer and user of the Montanari traction machines, and we are confident that we can work together for a long time.
-
Page 5: Table Of Contents
M73ES ENGLISH CONTENTS GENERAL INFORMATION ................7 Introduction ..........................7 Copyright ............................7 Symbols used ........................... 8 SAFETY ......................9 Intended use ..........................9 User's obligations ........................9 Environmental protection .....................10 Specific hazards ........................10 IDENTIFICATION AND DATA ..............11 Identification plate ........................11 Technical data .........................12... - Page 6 TROUBLESHOOTING .................24 General information ......................24 Problems, causes and solutions ..................24 MAINTENANCE AND REPAIR ..............25 General information ......................25 Maintenance table ........................25 Description of maintenance activities ................26 Lubricants ..........................27 10. SPARE PARTS ....................29 10.1 General information ......................29 10.2 How to order spare parts ....................29 10.3 How to identify spare parts ....................29 10.4 Table 1 - Motor ........................30 10.5 Table 2 - Brake ........................31...
-
Page 7: General Information
1.2 Copyright All rights to these operating instructions belong to Montanari Giulio & C. S.r.l. The information in this manual may not be reproduced or used in an unauthorized manner or made available to third parties without prior permission. -
Page 8: Symbols Used
1.3 Symbols used Warning symbols used in this manual: This symbol indicates that safety measures must be taken to prevent personal injury. This symbol indicates that safety measures must be taken to prevent damage to components. This symbol indicates useful information before and during the installation step. -
Page 9: Safety
The Montanari M73ES gearbox must be used and operated in strict compliance with the conditions set out in the supply contract. It is forbidden to use the Montanari M73ES gearbox for activities other than the one for which it was produced. -
Page 10: Environmental Protection
The information on the warning or identification plates must be complied with. These plates must be kept clean and legible at all times. Missing plates must be replaced. All spare parts can be obtained from Montanari Group. 2.3 Environmental protection •... -
Page 11: Identification And Data
M73ES ENGLISH IDENTIFICATION AND DATA Identification plate The following plate is affixed to the unit. Manufacturer Model Serial number Reduction ratio Year of production Lubricant used Manufacturer's address Fig. 3.1 The data on the plate are: • Manufacturer's data and logo •... -
Page 12: Technical Data
Versione Rapporto Vel. uscita Momento torc. max. Potenza Rendimento Peso Output Version Ratio Max torque Power Efficiency Weight speed Full load M73ES-5.5-6P 24.5 39.18 1099 0.85 M73ES-7.5-6P 24.5 39.18 1499 0.85 Solo argano / Gearbox only 3.3 Other data Below is a table with other data. -
Page 13: Dimensions
M73ES ENGLISH 3.4 Dimensions The following drawing shows the overall dimensions. Fig. 3.2 www.montanarigiulio.com... -
Page 14: Oil Quantity
3.5 Oil quantity The amount of oil to fill the gearbox is shown in the following table. Gearbox M73ES Oil quantity (litres) -
Page 15: Transport And Storage
M73ES ENGLISH TRANSPORT AND STORAGE Handling Only use lifting systems and equipment with adequate lifting capacity to handle this product. Different types of packaging can be used, depending on the size and means of transport. Unless otherwise specified, the packaging complies with the HPE guidelines. -
Page 16: Storage
Use only the specified eyebolts to handle the unit. Do not use the threaded holes on the shaft ends to screw in eyebolts or other fastening systems. Ropes or chains must not come into contact with the handwheel during handling operations. - Page 17 M73ES ENGLISH Make sure that the paint is not damaged! Any mechanical (scratches), chemical (acids, alkalis) and thermal (sparks, welding residues) damage causes corrosion, which can affect the protec- tive coating. For longer storage periods (more than 24 months) a periodic inspection is recom- mended and, if necessary, the restoration of the external and internal preservative treatment.
-
Page 18: Description
DESCRIPTION General description The M73ES Montanari is a gearbox with worm gear-crown unit equipped with a chain sprocket located on the output shaft, driven by a three-phase motor through a flexible coupling. A dual action brake is installed on the unit to brake and stop the load. -
Page 19: Oil Plugs And Indicators
M73ES ENGLISH 5.3 Oil plugs and indicators Below are the symbols used to identify the breather, the oil refill, the level indica- tor and the drain. Refill Dipstick Breather Drain Fig. 5.2 The vent hole can be closed during transport. In this case, the closing plug must be replaced with the breather plug supplied with the unit. -
Page 20: Installation
INSTALLATION General installation information Assembly and installation must be carried out with great care by qualified and trained personnel. The manufacturer cannot be held responsible for damage caused by incorrect assembly or incorrect installation. Provide sufficient space around the unit for installation to facilitate subsequent maintenance and repair work. - Page 21 M73ES ENGLISH Ø Ø Ø Fig. 6.1 • If the pinion has not been fitted by the manufacturer, place it on the output shaft and secure it with the end plate (fig. 6.1). • Mount the safety devices. www.montanarigiulio.com...
-
Page 22: Operation
Check the oil level before starting. This must be between the notches of the dipstick. Unit supplied filled with oil In this case, the M73ES gearbox already contains the synthetic lubricating oil (polyglycol), which was put in place by the manufacturer before shipment. Unit supplied without oil If the gearbox was supplied without oil filling, the unit must be filled with lubricant to get between the notches on the shaft. -
Page 23: General Operation Information
M73ES ENGLISH 7.4 General operation information When operating the M73ES unit, be sure to check that the following situations do not occur: • Excessive operating temperature. • Excessive and unusual noise. • Oil leaks. If any irregularity occurs during operation, turn off the power immediately. Identify the cause of the malfunction by using the table in Chap. -
Page 24: Troubleshooting
Customer Service department. Montanari cannot guarantee or be held responsible for unauthorized operations on the unit, improper use, modifications made without its consent or the use of non-genuine spare parts. -
Page 25: Maintenance And Repair
M73ES ENGLISH MAINTENANCE AND REPAIR General information All maintenance and repair operations must be carried out with care and only by qualified and trained personnel. Compliance with the inspection and maintenance intervals is part of the condi- tions for the validity of the warranty. -
Page 26: Description Of Maintenance Activities
When changing oil, always use the same type of lubricant as that contained in the M73ES. Do not mix different types of oil, or oils from different manufacturers. Do not mix synthetic oils with mineral oils or other types of synthetic oil. -
Page 27: Lubricants
Thread Tightening torque (Nm) 9.4 Lubricants For its units, Montanari only approves CLP oils that contain ingredients according to DIN 51517-3, for increased corrosion protection, durability and reduced wear in mixed friction zones. We recommend that customers use one of the lubricants listed in the table, taking into account the viscosity grade specified on the plate. - Page 28 Synthetic oils have a wider temperature range and a higher viscosity index (i.e. a flatter viscosity-temperature gradient) compared with mineral oils. Approximate values for temperature range: • Mineral oils from about -10°C to +90°C (short term +100°C) • Polyglycol from about -20°C to +100°C (short term +110°C) Note: The maximum and minimum utilisation temperature (flash point, pour point) of certain gear lubricants may differ significantly from that of the figures shown.
-
Page 29: Spare Parts
M73ES ENGLISH 10. SPARE PARTS 10.1 General information By keeping the main spare parts and wear parts in stock, the unit can always be used. 10.2 How to order spare parts Refer to the following tables to order spare parts. - Page 30 10.4 Table 1 - Motor...
- Page 31 M73ES ENGLISH 10.5 Table 2 - Brake www.montanarigiulio.com...
- Page 32 10.6 Table 3 - Magnet...
- Page 33 M73ES ENGLISH 10.7 Table 4 - Slow Shaft www.montanarigiulio.com...
- Page 34 10.8 Table 5 - Worm Shaft...
- Page 35 M73ES ENGLISH www.montanarigiulio.com...
-
Page 36: Declaration Of Incorporation
Montanari Giulio & C. S.r.l. Via Bulgaria no. 39, 41122 Modena Models concerned by this declaration: M73ES - M93ES - ME165 - ME190; complete with electric motor and electromechanical brake. The relevant essential safety requirements have been applied and complied with and the relevant technical documentation has been compiled in accordance with Annex VII B. - Page 37 M73ES ENGLISH www.montanarigiulio.com...
- Page 38 MONTANARI GROUP HEADQUARTERS Montanari Giulio & C. S.r.l. Via Bulgaria, 39 - 41122 - Modena - Italy Phone: +39 059 453611 - Fax: +39 059 315890 - info@montanarigiulio.com www.montanarigiulio.com...
