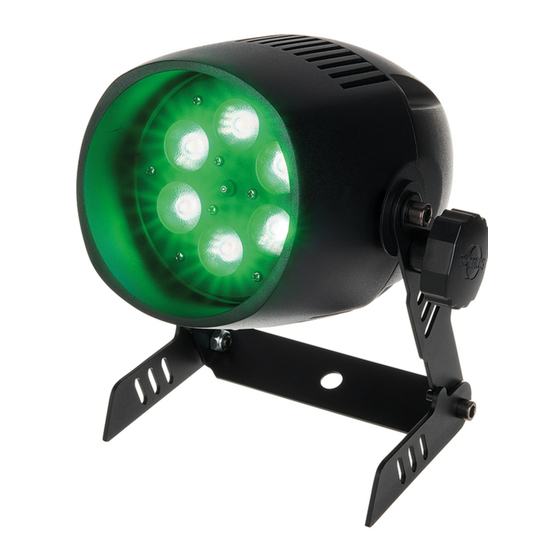

  • Page 1 QuadZoom 610 LED PAR...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 09.11.2023, ID: 531017...

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................6 1.1 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 13 Installation..............................14 Starting up..............................17 Connections and controls........................19 Operating..............................21 7.1 Starting the device........................... 21 7.2 Operation on the device........................ 21 7.2.1 DMX address..........................
  • Page 4 Table of contents 7.2.10 Slave mode........................... 31 7.2.11 System settings........................... 32 7.2.12 System information........................39 7.3 Menu overview..........................40 7.4 Functions in 3-channel DMX mode................... 41 7.5 Functions in 4-channel DMX mode................... 42 7.6 Functions in 5-channel DMX mode................... 44 7.7 Functions in 8-channel DMX mode...................
  • Page 5 QuadZoom 610 LED PAR...

  • Page 6: General Information

    Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document.
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 8 General information Warning signs Type of danger Warning – danger zone. QuadZoom 610 LED PAR...

  • Page 9: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 10 Safety instructions DANGER! Danger to life due to electric current! Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device when covers, safety equipment or optical components are missing or damaged. DANGER! Danger to life due to electric current! A short circuit could lead to a fire hazard and risk of death.
  • Page 11 Safety instructions NOTICE! Damage to the device if operated in unsuitable ambient conditions! The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient conditions specified in the “Technical specifications” chapter of this user manual. Avoid operating it in environments with direct sun‐ light, heavy dirt and strong vibrations.
  • Page 12 Safety instructions NOTICE! Risk of fire by exceeding the maximum current The device can supply power to other devices of identical design and connected in series. If too many devices are connected, the power consumption can exceed the maximum permitted power consumption, which can cause the device to overheat and burst into flames.

  • Page 13: Features

    Features Features The LED PAR is particularly suitable for professional lighting work, for example at events, on rock stages, in theatres and musicals. Special features of the device: Six RGBW 4-in-1 LEDs, each 10 W 16-bit technology Control via DMX (5 channels) and via the buttons and display on the device Six pre-programmed automatic shows Sound control Master/slave mode...

  • Page 14: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 15 Installation NOTICE! Risk of overheating and fire due to inadequate distance and bad ventilation! If the distance between the light source and the illuminated surface is too short or the device is badly ventilated, the device can overheat and cause fires. Make sure that illuminated surfaces are more than 2 m away.
  • Page 16 Installation NOTICE! Data transfer errors due to improper wiring! If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers. Use special DMX cables for the wiring instead of normal microphone cables.

  • Page 17: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device.
  • Page 18 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.

  • Page 19: Connections And Controls

    Connections and controls Connections and controls ö & QuadZoom 610 LED PAR...
  • Page 20 Connections and controls 1 [DMX IN] | DMX input, designed as XLR chassis plug, 3-pin 2 [DMX OUT] | DMX output, designed as XLR chassis socket, 3-pin 3 Safety cable eyelet 4 Fuse holder 5 [POWER IN] | Lockable input socket (Power Twist) for mains power supply 6 [POWER OUT] | Lockable output socket (Power Twist) for powering a connected device 7 Locking screw for the two-piece bracket 8 Two-piece bracket for setting up or hanging up...

  • Page 21: Operating

    Operating Operating 7.1 Starting the device Connect the device to the mains to start operation. After a few seconds, the display indicates that a reset is in progress. The device is now operational. 7.2 Operation on the device Navigating in the menu Press [MENU] to activate the main menu.

  • Page 22: Dmx Address

    Operating 7.2.1 DMX address This setting is only relevant if the device is controlled via a DMX controller. Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘DMX Address’ . Confirm the selection with [ENTER]. Use [UP] or [DOWN] to select the desired DMX address between 1 ( ‘001’...

  • Page 23: Dmx Mode

    Operating 7.2.2 DMX mode This setting is only relevant if the device is controlled via a DMX controller. Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘DMX Mode’ . Confirm the selec‐ tion with [ENTER].

  • Page 24: Auto Programmes

    Operating 7.2.3 Auto programmes In this operating mode you select one of the automatic programmes and configure the speed and the dimmer intensity of the automatic programme. Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Stand Alone’ . Confirm the selec‐ tion with [ENTER].

  • Page 25: Sound Control

    Operating 7.2.4 Sound control In this mode the device follows the rhythm of the background music or sounds detected by the built-in microphone. Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Stand Alone’ . Confirm the selec‐ tion with [ENTER].

  • Page 26: Colour Macros

    Operating 7.2.5 Colour macros Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Stand Alone’ . Confirm the selec‐ tion with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Color Macro’ . Confirm the selection with [ENTER].

  • Page 27: Zoom

    Operating 7.2.6 Zoom Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Stand Alone’ . Confirm the selec‐ tion with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Zoom’ . Confirm the selection with [ENTER].

  • Page 28: Constant Colours

    Operating 7.2.7 Constant colours Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Stand Alone’ . Confirm the selec‐ tion with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Static’ . Confirm the selection with [ENTER].

  • Page 29: Colour Temperature And Dimmer For White

    Operating Display Meaning ‘ Blue’ Blue ‘White’ White 7.2.8 Colour temperature and dimmer for white Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Stand Alone’ . Confirm the selec‐ tion with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Tunable White’...

  • Page 30: Individual Mixed Colour

    Operating 7.2.9 Individual mixed colour Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Stand Alone’ . Confirm the selec‐ tion with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘User Color’ . Confirm with [ENTER].

  • Page 31: Slave Mode

    Operating 7.2.10 Slave mode This setting is only relevant if the device is not controlled via DMX. Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Slave’ . Confirm the selection with [ENTER]. Use [UP] or [DOWN] to select the ‘Yes’...

  • Page 32: System Settings

    Operating 7.2.11 System settings 7.2.11.1 Rotating the display Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm the selection with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Display Reverse’ . Confirm with [ENTER].
  • Page 33 Operating 7.2.11.2 Display lighting Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm the selection with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘DisplayLight’ . Confirm with [ENTER].
  • Page 34 Operating 7.2.11.3 Behaviour in the event of DMX control failure Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm the selection with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘DMX Fail’ . Confirm with [ENTER].
  • Page 35 Operating 7.2.11.4 Dimmer curve Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm the selection with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Dimmer Curve’ . Confirm with [ENTER].
  • Page 36 Operating Display Meaning ‘Logarithmic’ Logarithmic course (Inverted quadratic curve with a steep course at the beginning and a flat course at the end) ‘S-Curve’ S-curve shaped course (Non-linear curve with a distinctive flat course at the beginning and end) QuadZoom 610 LED PAR...
  • Page 37 Operating 7.2.11.5 Dimmer response Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm the selection with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Dimmer Response’ . Confirm with [ENTER].
  • Page 38 Operating 7.2.11.6 Key lock Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm the selection with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘AutoLock’ . Confirm with [ENTER].

  • Page 39: System Information

    Operating 7.2.12 System information 7.2.12.1 Firmware version Press [MENU] to activate the main menu. Press [UP] or [DOWN] repeatedly until the display shows ‘System Info’ . Confirm the selec‐ tion with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Firmware’ . ð...

  • Page 40: Menu Overview

    Operating 7.3 Menu overview DMX Address DMX Mode Stand Alone Slave Settings System Info 001...512 Auto Yes/No Display Reverse On/O Firmware V1.0 Program 1 Dimmer 000...255 DisplayLight On/O Operation Hours xxxHrs Program 2 Speed 000...255 DMX Fail Hold Program 6 Tunable White Blackout 10CH...

  • Page 41: Functions In 3-Channel Dmx Mode

    Operating 7.4 Functions in 3-channel DMX mode Channel Value Function 000…255 Dimmer intensity from dark (0) to bright (255) 000…255 Colour temperature from 3200 K to 7280 K 000…255 Gradual zooming, increasing QuadZoom 610 LED PAR...

  • Page 42: Functions In 4-Channel Dmx Mode

    Operating 7.5 Functions in 4-channel DMX mode Channel Value Function 000…255 Dimmer intensity from dark (0) to bright (255) Strobe 000…005 LEDs on 006…010 LEDs off 011…033 Random pulses, increasing speed 034…056 Randomly increasing brightness, increasing speed 057…079 Randomly decreasing brightness, increasing speed 080…102 Random strobe effect, increasing speed 103…127...
  • Page 43 Operating Channel Value Function 014…021 Amber 022…029 Warm yellow … … 102…109 Warm white 110…117 White 118…125 Cold white 126…127 Colour change stop 128…191 Colour change colour 1…12, increasing speed 192…255 Slow colour change with transition, colour 1…12, increasing speed 000…255 Gradual zooming, increasing QuadZoom 610...

  • Page 44: Functions In 5-Channel Dmx Mode

    Operating 7.6 Functions in 5-channel DMX mode Channel Value Function 000…255 Red intensity (0%…100%) 000…255 Green intensity (0%…100%) 000…255 Blue intensity (0%…100%) 000…255 White intensity (0%…100%) 000…255 Gradual zooming, increasing QuadZoom 610 LED PAR...

  • Page 45: Functions In 8-Channel Dmx Mode

    Operating 7.7 Functions in 8-channel DMX mode Channel Value Function 000…255 Dimmer intensity from dark (0) to bright (255) Strobe 000…005 LEDs on 006…010 LEDs off 011…033 Random pulses, increasing speed 034…056 Randomly increasing brightness, increasing speed 057…079 Randomly decreasing brightness, increasing speed 080…102 Random strobe effect, increasing speed 103…127...
  • Page 46 Operating Channel Value Function 000…255 White intensity (0%…100%) Colour macros (overwrites channel 3…6) 000…005 Blackout 011…013 014…021 Amber 022…029 Warm yellow … … 102…109 Warm white 110…117 White 118…125 Cold white 126…127 Colour change stop 128…191 Colour change colour 1…12, increasing speed 192…255 Slow colour change with transition, colour 1…12, increasing speed 000…255...

  • Page 47: Functions In 10-Channel Dmx Mode

    Operating 7.8 Functions in 10-channel DMX mode Channel Value Function 000…255 Dimmer intensity from dark (0) to bright (255) Strobe 000…005 LEDs on 006…010 LEDs off 011…033 Random pulses, increasing speed 034…056 Randomly increasing brightness, increasing speed 057…079 Randomly decreasing brightness, increasing speed 080…102 Random strobe effect, increasing speed 103…127...
  • Page 48 Operating Channel Value Function 000…255 White intensity (0%…100%) Colour macros (overwrites channel 3…6) 000…005 Blackout 011…013 014…021 Amber 022…029 Warm yellow … … 102…109 Warm white 110…117 White 118…125 Cold white 126…127 Colour change stop 128…191 Colour change colour 1…12, increasing speed 192…255 Slow colour change with transition, colour 1…12, increasing speed 000…005...
  • Page 49 Operating Channel Value Function 000…005 No function 006…063 Linear course 064…127 Exponential course 128…191 Logarithmic course 192…255 S-curve shaped course 000…255 Gradual zooming, increasing QuadZoom 610 LED PAR...

  • Page 50: Technical Specifications

    Technical specifications Technical specifications Item number Light source 6 × 4in1 RGBW LED, 10 W each Light source proper‐ Colour temperature 3200 K…7280 K ties Optical properties Beam angle 15°…60° Repetition rate 5000 Hz 225 mm 190 mm Control Buttons and display Number of DMX channels 3, 4, 5, 8 or 10 Input connections...
  • Page 51 Technical specifications Item number International Protection Rating IP20 Mounting options Hanging, standing Dimensions (W × H × D), with bracket 225 mm × 230 mm × 190 mm Weight 2.5 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) QuadZoom 610 LED PAR...
  • Page 52 Technical specifications Further information Item number Design Studio housing Number of LEDs Colour mix RGBW LED type x-in-1 Floor housing Fanless Wireless DMX Housing colour black QuadZoom 610 LED PAR...

  • Page 53: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 54: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Data transfer errors due to improper wiring! If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers.
  • Page 55 4. Check whether the DMX cables run near or parallel to high-voltage cables that may cause damage or interfer‐ ence to a DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. QuadZoom 610 LED PAR...

  • Page 56: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 57: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 58 Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it.
  • Page 60 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
