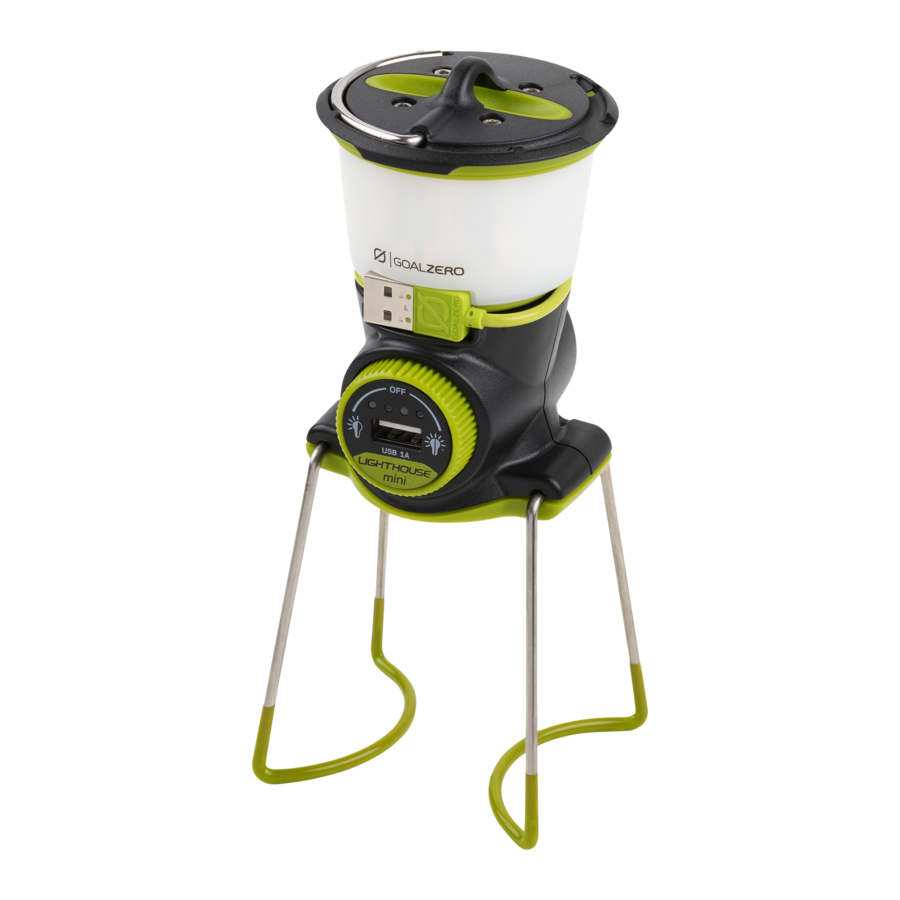

Goal Zero Lighthouse Mini - Lantern & USB Power Hub Manual

GET TO KNOW YOUR GEAR

HOW IT WORKS

The Lighthouse mini has the same DuaLite™ feature found in its big brother, the Lighthouse 400. You can adjust brightness settings for each light mode to extend runtimes.

1. Turn the light adjustment knob to the right for full 360° light. At its max output, you'll get 210 lumens for about 4 hours.
2. Turn the knob left for 180° of light. At its max output, you'll get 105 lumens for about 7 hours.

Using the built-in USB charging cable, the Lighthouse mini will charge up from a USB port in about 4 hours. You can also pair the Lighthouse mini with a Nomad 7 Solar Panel and charge it up in about 4-6 hours of full sun.

Know the Lighthouse mini is charging when the blue battery indicator lights begin flashing. The Lighthouse mini is full when all lights are solid.

CHARGING USB GEAR

You can charge up small, handheld gear through the USB port on the front of the Lighthouse mini.

NOTE: If you are charging gear and utilizing the Lighthouse mini's lantern light you can expect to see decreased charge times, runtimes, and light performance.

WHAT IT POWERS:

HEADLAMP
3 RECHARGES

POV CAMERA
2 RECHARGES

PHONE
1 RECHARGE

TABLET
25% BOOST

TECHNICAL SPECIFICATIONS

Lighthouse mini
Battery
Cell chemistry	Li-ion NMC
Cell type	18650 by LG chem
Cell capacity	11.84Wh (3.70V, 3200 mAh)
Lifecycles	300+ with recommended use
Shelf-life	Charge every 3-6 months
Fuses	none
Management system	Charging and low-battery protection built-in
Light (Output)	5W max
LED Rating	210 Lumens, 3500K LEDs
Ports
USB port (output)	5V, up to 1A (5W max)
USB plug (input)	5V, up to 1A (5W max)
General
Chainable	no
Weight	8oz (227.5g)
Dimensions	2.91Dia x 4.15in (73.8Dia x 105.5mm)
Operating usage temp.	32°-104°F (0°-40°C)
Certs.
Warranty	12 months
Use With	18650 Goal Zero Battery Nomad Solar Panels
