GOAL ZERO CRUSH LIGHT Manual

warning
BEFORE FIRST USE:
Take the Crush Light Chroma out of DEMO mode by pressing the on/off button for 10 seconds.

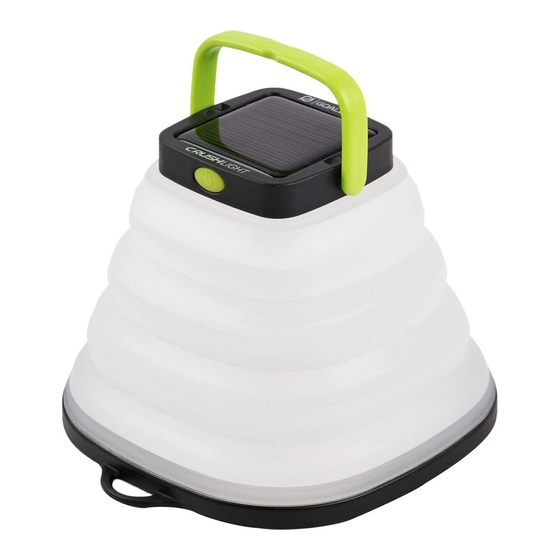

GET TO KNOW YOUR GEAR


Rechargeable by Sun


USB Rechargeable


Hour Runtime on Lowest Setting


Weatherproof IPX4 Rated

Production View

HOW IT WORKS

TIP: Fully charge the crush light before its first use.

3 WHITE MODES + CANDLE FLICKER.
Push the On/Off Button to select brightness modes.
Press 1X for High
Press 2X for Medium
Press 3X for Low
Press and hold for 2 seconds for candle flicker
Press and hold for 3 seconds to turn it off

Still in DEMO MODE? See the front cover for instructions.

RUNTIME LUMENS CHARGE TIME
High 3 hours 60 lumens USB source 3.5 hours
Medium 6 hours 25 lumens Built-in panel 20 hours
Low 35 hours 6 lumens
Candle Flicker 3.5 hours

RECHARGE YOUR CRUSH LIGHT LANTERN

Recharge from USB or solar panel

Recharge from USB or solar panel Step 1

Know it's charging with the LED indicator light next to the charging port turns red. The Crush Light is fully charged when the light turns green.

Recharge from USB or solar panel Step 2

TECHNICAL SPECIFICATIONS

Battery
Cell chemistry Li-ion Polymer
Cell capacity 1.85Wh (3.7V, 500mAh)
Lifecycles Hundreds of cycles
Shelf-life Charge every 3-6 months
Solar
Rated Power ~0.12W
Cell type Monocrystalline
Ports
USB port (input) 5V, up to 0.5A (2.5W max)
General
Durability IPX4
Weight 3.2oz (91g)
Dimensions (Open) 4.95 x 4.95 x 3.9in (125 x 125 x 100mm)
Dimensions (Closed) 4.95 x 4.95 x 0.6in (125 x 125 x 15mm)
Operating usage temp. 32-104 F (0-40 C)
Certs
Warranty 12 months

Be sure to activate your warranty at goalzero.com/warranty

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

GOAL ZERO HEADQUARTERS

675 West 14600 South
Bluffdale, UT 84065
1-888-794-6250
Designed in the U.S.A.
Made in China

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference, and
  2. this device must accept any interference received, including interference that may cause undesired operation.
