Goal Zero Lighthouse 400 - Lantern & USB Power Hub Manual

FREQUENTLY ASKED QUESTIONS

How often do I need to charge the Lighthouse 400?
It is recommended to charge your Lighthouse 400 lantern every 3 months. The blue LED lights indicate the current battery level.

Does it matter what direction I turn the hand crank?
Nope. You can turn the hand crank in either direction for power. Remember, 1 minute of crank time equals about 10 minutes of light on low.

CHARGE FROM

Goal Zero products:
Nomad Solar Panels
Sherpa Power Packs
Goal Zero Yeti Solar Generators

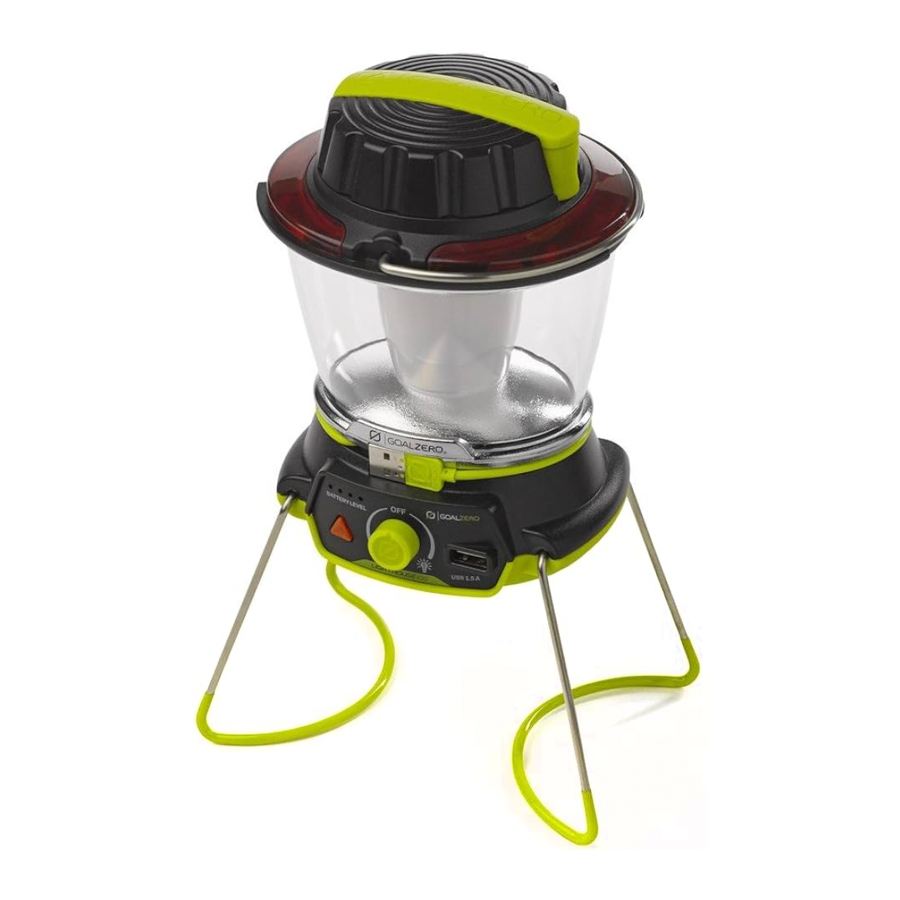

GET TO KNOW YOUR GEAR

HANG IT
Put the Lighthouse 400 anywhere with the built-in hanger.

CHARGE IT
Charge through any USB port, with the dynamo crank, or with Goal Zero solar panels.

POWER IT
Use the USB port to recharge a phone or boost a tablet.

LIGHT IT
Multiple brightness and directional lighting options. Red light for emergencies.

STAND IT
Convenient foldaway legs for easy transport and hassle-free storage

HOW IT WORKS

1. Dynamo Crank
   Recharge by dynamo crank function: flip the crank handle up from the top of the lantern and rotate. One minute of cranking will provide approximately ten minutes of light on low power.
2. USB Rechargeable Light
   Power up the Lighthouse 400 from any USB port with the built-in cord. Blue LED lights indicate battery level.
3. Dualite™ Directional Lighting
   Turn the knob right or left for different directional lighting and brightness options.
4. Emergency Light
   Push the triangle button for red, emergency alert mode.
5. Power Your Gear
   Recharge smartphones, and boost tablets through the USB port.

TECHNICAL SPECIFICATIONS

Charge times:

Charge times:
Nomad 7	7-14 hrs
USB Source	5 hrs
Run time:
One Side Lit (low power)	48 hrs
One Side Lit (high power)	6 hrs
Both Sides Lit (low power)	24 hrs
Both Sides Lit (high power)	2.5 hrs
Battery:
Cell Chemistry	Li-ion NMC
Cell Capacity	16.3Wh (3.7V, 4400mAh)
Lifecycles	Hundreds of cycles
Shelf-life	Charge every 3-6 months
Fuses	None
Management System	Charging and low-battery protection built-in
Light:
LED (output)	2x3W warm white LED 400 Lumens
Color Temperature	3,500 Kelvin
Hand Crank:
Hand Crank	1 W (cranking at 130 RPM)
Ports:	1 minute of crank = 10 minutes of light on low
USB Port (output)	5V, up to 1.5A (7.5W max), regulated
USB Port (input)	5V, up to 1A (5W max)
General:
Chainable	No
Weight	1.1 lbs (498 g)
Dimensions	4.5 x 5 x 6.5 in (11.4 x 12.7 x 16.5 cm)
Operating Usage Temp.	32-104 F (0-40 C)
Certs
Warranty	12 months
Be sure to register your product at goalzero.com/support
