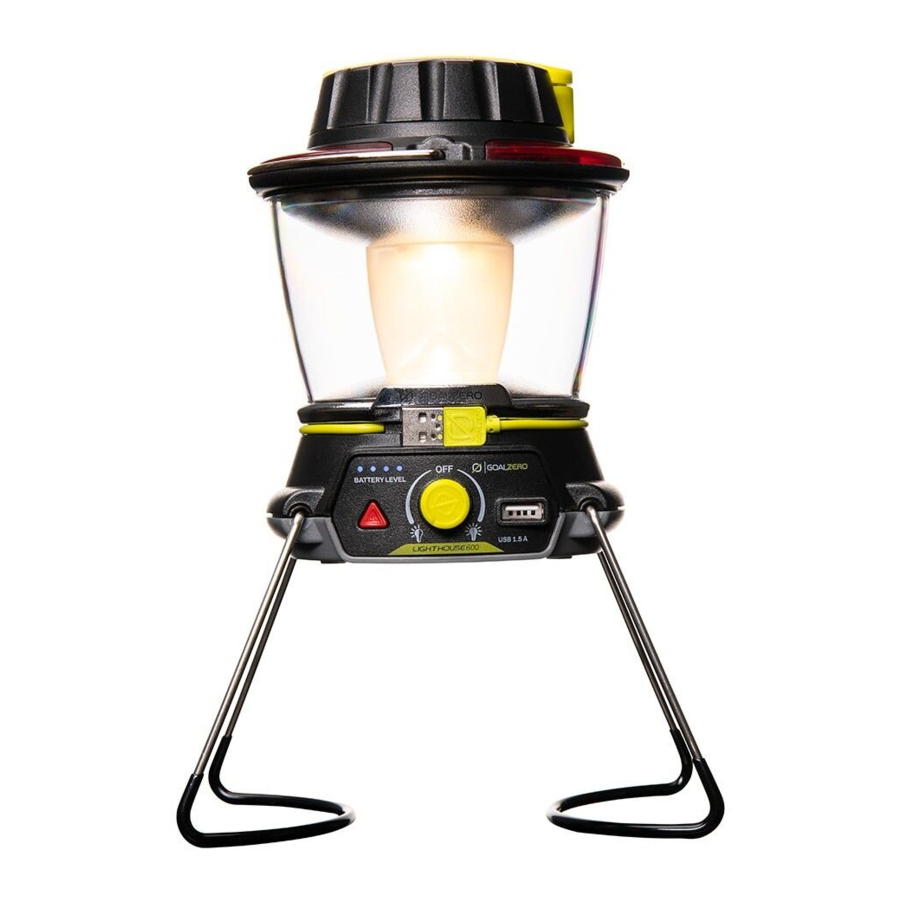

Goal Zero Lighthouse 600 - Lantern & USB Power Hub Manual

GET TO KNOW YOUR GEAR

HANG IT
Put the Lighthouse 600 anywhere with the built-in hanger.

CHARGE IT
Charge through any USB port, with the dynamo crank, or with Goal Zero solar panels.

POWER IT
Use the USB port to recharge a phone or boost a tablet.

LIGHT IT
Multiple brightness and directional lighting options. Red light for emergencies.

STAND IT
Convenient foldaway legs for easy transport and hassle-free storage.

HOW IT WORKS

1. Dynamo Crank
   Recharge by dynamo crank function: flip the crank handle up from the top of the lantern and rotate. One minute of cranking will provide approximately ten minutes of light on low power.
2. USB Rechargeable Light
   Power up the Lighthouse 600 from any USB port with the built-in cord. Blue LED lights indicate battery level.
3. Dualite™ Directional Lighting
   Turn the knob right or left for different directional lighting and brightness options.
4. Emergency Light
   Push the triangle button for red, emergency alert mode.
5. Power Your Gear
   Recharge smartphones, and boost tablets through the USB port.

FREQUENTLY ASKED QUESTIONS

How often do I need to charge the Lighthouse 600?
It is recommended to charge your Lighthouse 600 lantern every 3 months. The blue LED lights indicate the current battery level.

Does it matter what direction I turn the hand crank?
Nope. You can turn the hand crank in either direction for power. Remember, 1 minute of crank time equals about 10 minutes of light on low.

TECHNICAL SPECIFICATIONS

Charge times:
Nomad 10	7 hrs
USB Source	7 hrs
Run time:
One Side Lit (low power)	320 hrs
One Side Lit (high power)	5 hrs
Both Sides Lit (low power)	180 hrs
Both Sides Lit (high power)	2.5 hrs
Battery:
Cell Chemistry	Li-ion NMC
Cell Capacity	18.98Wh (3.65V, 5200mAh)
Lifecycles	Hundreds of cycles
Shelf-life	Charge every 3-6 months
Fuses	None
Management System	Charging and low-battery protection built-in
Light:
LED (output)	2x 5W warm white LED 600 Lumens
Color Temperature	3,200 Kelvin
Hand Crank:
Hand Crank	1 W (cranking at 130 RPM) 1 minute of crank = 10 minutes of light on low
Ports:
USB Port (output)	5V, up to 1.5A (7.5W max), regulated
USB Port (input)	5V, up to 1A (5W max)
General:
Weight	1.1 lbs (498 g)
Dimensions	4.5 x 5 x 6.5 in (11.4 x 12.7 x 16.5 cm)
Operating Usage Temp.	32-104 F (0-40 C)
Certs
Warranty	12 months
