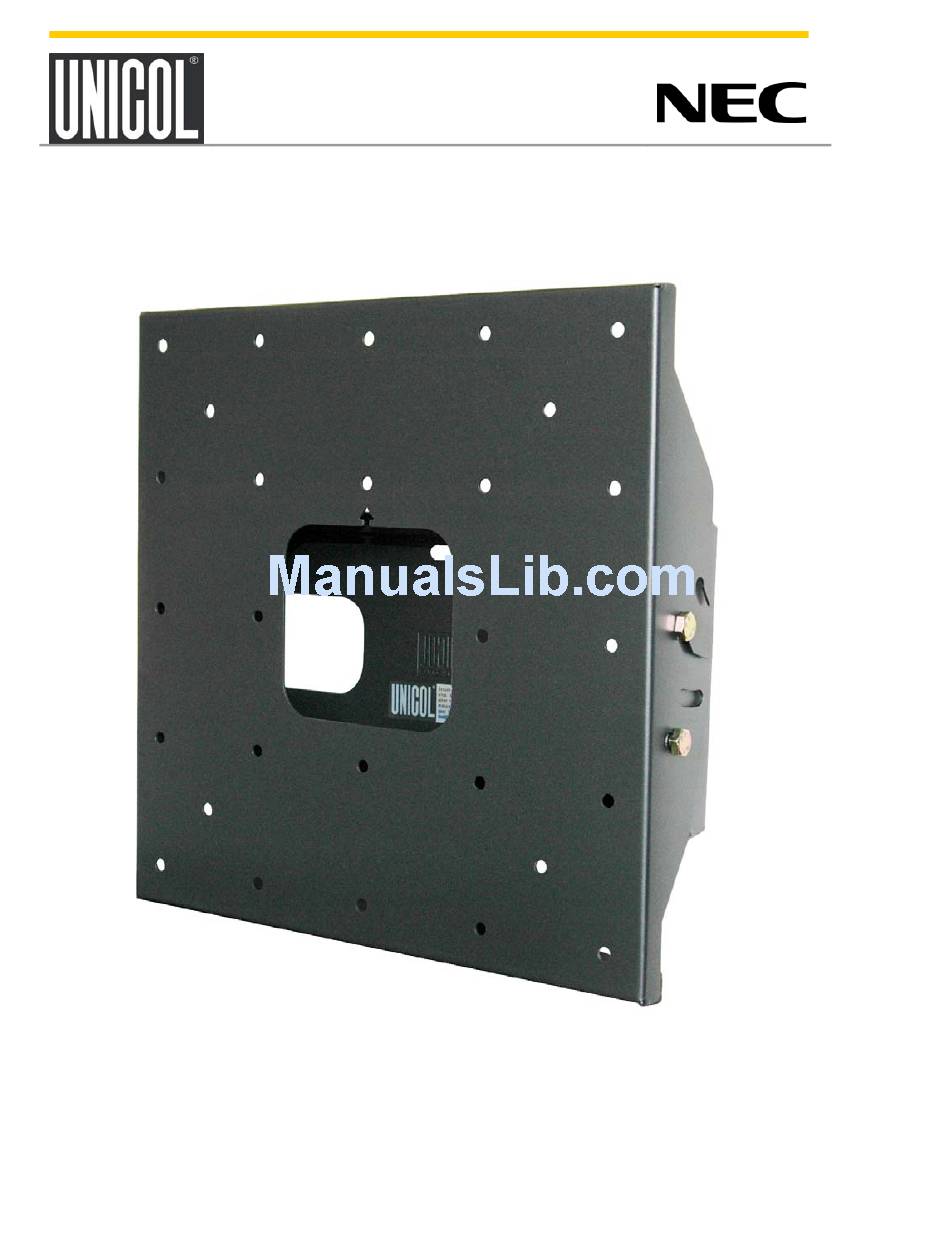

- Page 1 W32-70 INSTALLATION INSTRUCTIONS UNIVERSAL WALL MOUNT For 32” to 70” LCD range of flat screens W32-70 Tilting Wall Mount For mounting screens both in Landscape and Portrait Page 1 www.unicol.com www.unicol.de necinstw3270/0809 www.nec-display-solutions.com...
- Page 2 Each Wall Plate has 4 x M10 x 25 Hex head screws (2 at each side) for securing Screen Plate. Universal Screen Fixing Kit contains: 4 x M6 x 12 pozi pan head screws Page 2 www.unicol.com www.unicol.de necinstw3270/0809 www.nec-display-solutions.com...
- Page 3 Position B can be used. www.unicol.com www.unicol.de LCD model Fixing LCD model P401 M6 x 4 P461 M6 x 4 P521 M6 x 4 Page 3 necinstw3270/0809 Fixing X461HB M6 x 4 X461UN M6 x 4 www.nec-display-solutions.com...
- Page 4 If you have any questions regarding these instructions please contact UNICOL: Europe: +49 (0) 9131 9405 800, info@unicol.de www.unicol.com www.unicol.de Tilted at Position A UK: +44 (0) 1865 767676, enquiries@unicol.com Page 4 necinstw3270/0809 For larger screens and more tilt at Position B www.nec-display-solutions.com...
