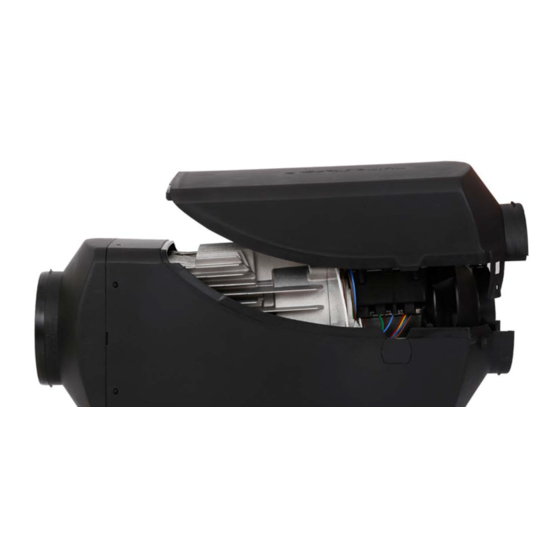

Preface NOTE The most common faults that occur are Thank you for purchasing the BISON 4000A diesel generally due to poor fuel quality, dirty (or heater (hereinafter referred to as ‘the heater’). This empty) fuel tanks or drops in voltage;...
Dimensions, mm A. Minimum clearance required for opening lid and dismantling glow pin and E.C.U. B. Minimum clearance required for proper air intake. Installation Figure I: Motorhome Figure II: Minivan 1. In front of the passenger seat 2. Between driver’s and passenger’s seat 1.
Figure III: Construction Equipment Figure V: Position Angles 1. In seat box 2. On rear wall 3. In a protective case outside Figure IV: Truck 1. Heater air intake 2. Glow pin position 3. Direction of air flow Figure V shows the ideal installation position of the heater;...
careful, as flaps are fragile and may break off easily. You can then lift out the entire innards of the heater (heat exchanger, fan motor, etc.) removing the cable from the rubber securing bush and rerouting it underneath the fan motor where it can then sit in the cut-out on the opposite side.
Installation: Mounting (Continued) Installation: Ducting and Pipework Figure VII: Mounting Positions Figure VIII: Ducting 1. Ducting and/or Grill Above: Securing heater to the floor 2. Main Heater Body 3. 90 mm Hose Clamp 4. 90 mm Air Ducting 5. 90 mm Reducer 6.
Installation: Ducting and Pipework (Continued) Figure IX: Air Intake and Exhaust Ducting can be installed as shown on the previous page. Extra outlets can be installed to fit your own needs however you should ideally not fit more than the maximum of 3 outlets, to ensure you are receiving sufficient hot air output.
Installation: Fuel Lines NOTE When installing, priming, repairing fuel lines etc. there is always a risk of injuries due to flammable and toxic sources. Take all the necessary safety precautions when fitting any fuel line or fuel line parts. Above: Improper Connection When working on or near any fuel lines or parts! DO NOT Smoke.
Installation: Fuel Tank (Continued) Pick-up Tube: Option 2 (GC0100) 1. Connection to heater body To Install this type of Pick-up Tube: 2. Maximum fuel level 3. Minimum Fuel Level If possible, remove the sender unit from the vehicle’s fuel tank, Suction Height for Fuel Pump: this will make it easier to attach A.
Alternatively, to fit the digital timer, simply fit the appropriate screw inside the hole located at the center of the timer. Both plug into the corresponding BLUE/WHITE RED/WHITE BLACK BLUE black and clear plugs on the loom. NOTE Only one controller can be used at a time. RED/YELLOW BROWN GRAY...
Operation: Analog Controller 1. LCD Screen A. Days of the Week 2. Left Arrow Button B. Heating Symbol 3. Right Arrow Button C. Fan Symbol 4. Power/Back Button D. ‘P’ (Program) Symbol 5. OK Button E. Clock Symbol 6. Fixing Screw Hole F.
Page 16
Changing Language Changing Date and Time The language should be set to English. However, if it isn’t or the control has been reset to default settings 1. To change the date and time, navigate to the clock it will revert to Chinese. Please follow these steps to symbol and press OK.
Page 17
Switching to Thermostatic Mode Programming Heater Start Times The digital timer can be programmed for three To switch the heater to individual start times per day on any combination of thermostatic mode, turn the seven days. heater on manually, as 1.
Fuel Line Priming Feature Fault Codes Analog Controller ATTENTION: When the ECU had discovered a fault, the analog Not to be used during normal heater operation. controller will flash a fault code. The controller should therefore be ideally placed where it can be Disconnect the fuel line from the heater to prevent ...
Parts List GC0163 Fuel Line Connection Tee, 8 x 8 x 6 mm GC0187 Inline Fuel Filter GC0427 Fuel Line Connector, 3.5 mm, 50 mm Length (Gasoline) GC0095 L-Shaped Mounting Plate GC0500 Fuel Pump Damper GC0168 Self-Tapping Screw GC0101 Fuel Pick-up Tube GC0361 Self-Drilling and Self-Tapping Screw GC0158...
