Hanna Instruments HI 991002 Instruction Manual

Instruction Manual
HI 991002
Extended Range Waterproof
pH / ORP / Temperature Meter
w w w . h a n n a i n s t . c o m

WARRANTY

All Hanna Instruments meters are warranted for two years
against defects in workmanship and materials when used for
their intended purpose and maintained according to instructions.
The probes are warranted for a period of six months.
This warranty is limited to repair or replacement free of charge.
Damage due to accidents, misuse, tampering or lack of
prescribed maintenance are not covered.
If service is required, contact the dealer from whom you
purchased the instrument. If under warranty, report the model
number, date of purchase, serial number and the nature of the
problem. If the repair is not covered by the warranty, you will
be notified of the charges incurred. If the instrument is to be
returned to Hanna Instruments, first obtain a Returned Goods
Authorization Number from the Customer Service department
and then send it with shipment costs prepaid. When shipping
any instrument, make sure it is properly packaged for complete
protection.
All rights are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner.
Dear Customer,
Thank you for choosing a Hanna Instruments Product.
Please read this instruction manual carefully before using the
instrument. If you need additional technical information, do not
hesitate to e-mail us at tech@hannainst.com.

PRELIMINARY EXAMINATION

Remove the instrument from the packing material and examine
it carefully to make sure that no damage has occurred during
shipment. If noticeable damage is evident, notify your dealer.
Note: Save all packing material until you are sure that the
instrument functions correctly. All defective items must be
returned in the original packing together with the
supplied accessories.

GENERAL DESCRIPTION

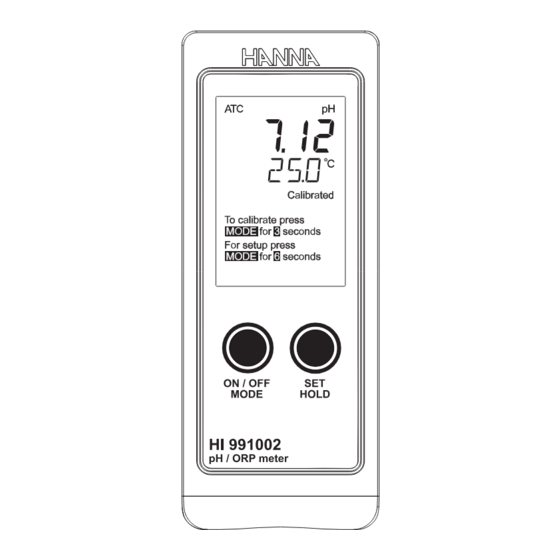

HI 991002 is a portable, microprocessor-based pH/ORP/
temperature meter.
Main features include: extended pH, mV and temperature
ranges; waterproof and compact casing; large dual-line
display; low battery detection; automatic pH calibration at one
or two points within two memorized buffer sets (standard or
NIST); selectable temperature unit (°C or °F).
The pH electrode has a built-in temperature sensor for
simultaneous temperature compensated pH and temperature
readings, and also contains an integral pH sensor preamplifier
to provide measurements impervious to noise and electrical
interferences. The mV range is also available.
Each meter is supplied with:
• HI 1297D pH/ORP probe with internal
temperature sensor, DIN connector and 1m (3.3') cable
• Calibration & cleaning solution sachets
• 3 x 1.5V AAA batteries
• Instruction manual.

LCD DESCRIPTION

1. Automatic Temperature Compensation indicator
2. Battery percentage (visible at power up)
3. Secondary display
4. Low battery indicator
5. Stability indicator
6. pH calibration indicator
7. Selectable temperature unit
8. Primary display
9. Measuring unit for primary display

ACCESSORIES

HI 1296D Combination preamplified pH/temperature probe
with DIN connector and 1 m (3.3') cable
HI 1297D Combination amplified pH/ORP/temperature
probe with DIN connector and 1 m (3.3') cable
HI 7004L
pH 4.01 buffer solution, 500 mL
HI 7006L pH 6.86 buffer solution, 500 mL
HI 7007L pH 7.01 buffer solution, 500 mL
HI 7009L pH 9.18 buffer solution, 500 mL
HI 7010L
pH 10.01 buffer solution, 500 mL
HI 70300L pH electrode Storage solution, 500 mL
HI 7061L pH electrode Cleaning solution, 500 mL
HI 76405 Electrode holder

SPECIFICATIONS

Range (*)
-2.00 to 16.00 pH
±1999 mV
-5.0 to 105.0°C / 23.0 to 221.0°F
Resolution
0.01 pH
1 mV
0.1°C / 0.1°F
Accuracy
±0.02 pH
(@20°C/68°F) ±2 mV
±0.5°C up to 60°C; ±1.0°C outside
±1.0°F up to 140°F; ±2.0°F outside
Temperature Compensation Automatic ,
-5.0 to 105.0°C (23 to 221°F)
pH Calibration Automatic, 1 or 2 point
choose between 2 sets of buffers
(standard: 4.01/7.01/10.01 or NIST: 4.01/6.86/9.18)
ORP Calibration Factory calibrated
Probe (included)
amplified pH/ORP probe with internal
temperature sensor, DIN connector and 1 m (3.3') cable
Battery Type 3 x 1.5V AAA
Battery Life Approximately 1200 hours of continuous use
Auto-off After 8 minutes of non-use
Environment 0 to 50°C (32 to 122°F);
RH max. 100%
Dimensions
152 x 58 x 30 mm (6.0 x 2.3 x 1.2")
Weight 205 g (7.2 oz.)
(*) the temperature range is limited to 80°C (176°F) if using
the HI 1296D or HI 1297D sensors.
To clean the meter, use water only.
Hanna Instruments reserves the right to modify the design,
construction and appearance of its products without advance
notice.
IST991002Z 01/11
HI 1297D
