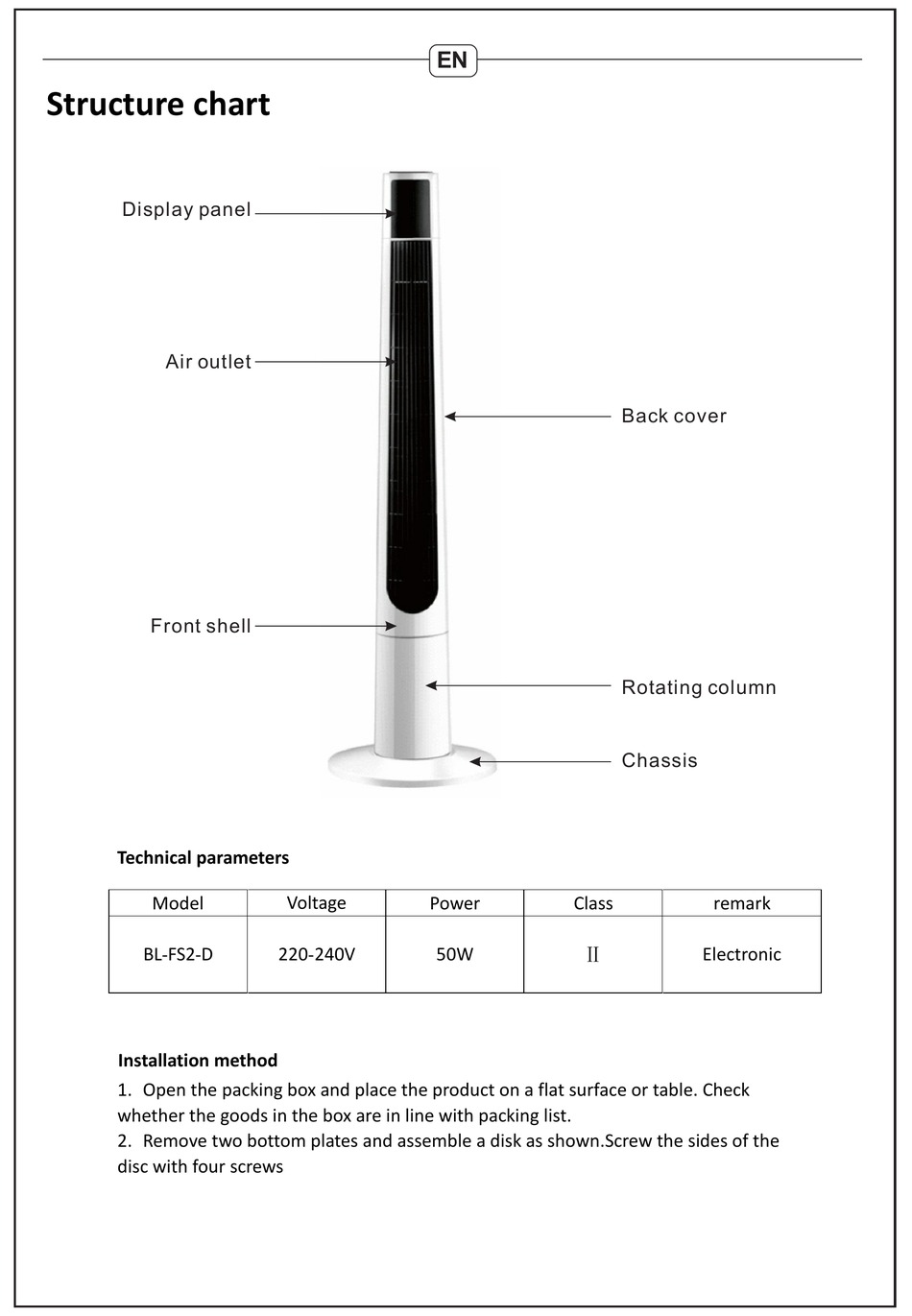

Structure chart

Display panel
Air outlet
Front shell
Technical parameters
Model
BL-FS2-D
Installation method
1. Open the packing box and place the product on a flat surface or table. Check
whether the goods in the box are in line with packing list.
2. Remove two bottom plates and assemble a disk as shown.Screw the sides of the
disc with four screws
EN
Voltage Power
220-240V 50W
Back cover
Rotating column
Chassis
Class remark
Ⅱ
Electronic
