Summary of Contents for Ecom Smart-Ex 201

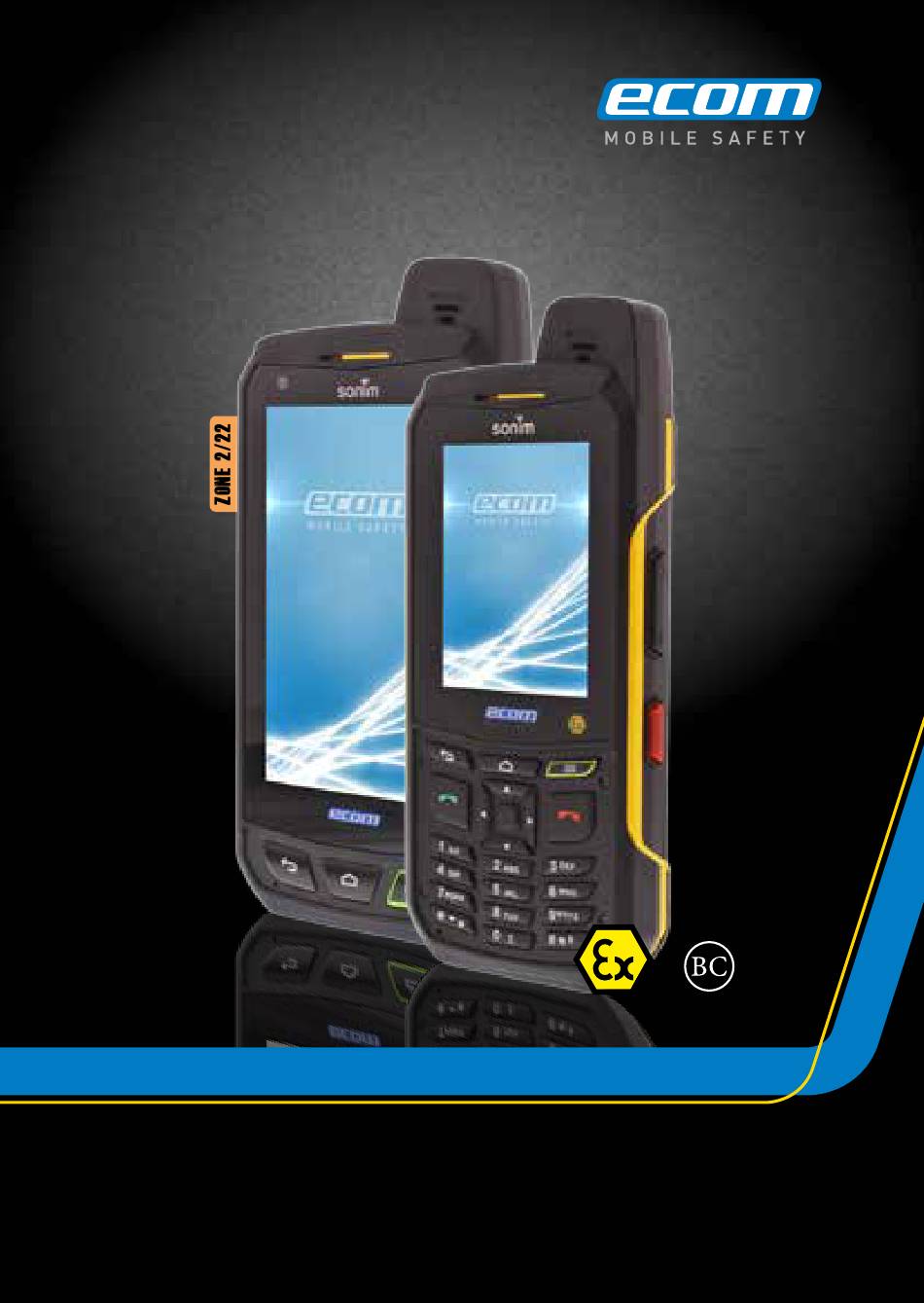

- Page 1 Smart-Ex 201 | Ex-Handy 209 ® Safety Instructions...
-
Page 2: Table Of Contents
13. EU Declaration of Conformity and Certificate ........... 12 Note: The current safety instructions, operating instructions, EU Declaration of Con- formity and the Certificate of Conformity can be downloaded from the relevant product page at www.ecom-ex.com, or alternatively they can be requested di- rectly from the manufacturer. -
Page 3: Application
1. Application 1.1 ATEX & IECEx The Smart-Ex 201 and Ex-Handy 209 are intrinsically safe water-, dust- and impact resistant Smartphones for industrial application in areas with an in- creased risk of explosion in zone 2 and zone 22 in accordance with directives 1999/92/EC, 2014/34/EU (ATEX) and the IECEx System. -
Page 4: Safety Regulations
4. Safety regulations Use of the intrinsically safe Smartphone Smart-Ex 201 or Ex-Handy 209 as- sumes that the operator observes the conventional safety regulations and has read the certificate of conformity in order to eliminate malfunction of the device. The following items are to be observed: Operating conditions: •... -
Page 5: Ex-Data
• Wired headsets may only be used inside hazardous areas if the headset itself is certified for use inside hazardous areas and the headset meets the inter- face parameter of the Smartphone. In such case the Ex-Marking and special conditions of certification of the accessory must be observed additionally. 5. -
Page 6: Nec & Cec
Protection class: IP68 (for 30 minutes, 2 meters under water) SAR: max. 0.358 W/kg (10g) Smart-Ex 201 max. 0.327 W/kg (10g) Ex-Handy 209 Inserting the SIM Card: 1. Remove the screws of the headset port cover and the SIM card cover with the provided Multitool “MT S01”... - Page 7 Notice: Insert SIM card tray as shown to avoid damage to the card. This information is also shown on the protection film affixed to the display of the Smartphones. For optimal use of the touch screen you should remove the pro- tection film before using the Smartphone for the first time.
-
Page 8: Charging The Smartphone
Ex-protection as well as the warranty is void. In case the lithium-ion battery in Smart-Ex 201 or Ex-Handy 209 has to be replaced only by ecom instruments GmbH or by personnel or service centers authorized by ecom instruments GmbH, and must be recycled or disposed of separately from household waste. -
Page 9: Repair
High quality lithium-ion batteries are used in your Smart-Ex 201 and Ex-Handy 209. These batteries have numerous advantages in everyday use, such as a low weight and high capacity in a nevertheless compact construction. In addition these batteries also exhibit practically no memory effect. However, these batte- ries are susceptible to a natural aging process which impairs their functionality. -
Page 10: Disposal
11. Disposal Old electrical devices by ecom instruments GmbH will be directed to disposal at our expense and disposed of free of charge in accordance with European Directive 2002/96/EC. Please follow local regulations for the disposal of electronic products. The costs associated with returning devices to ecom instruments GmbH are to be borne by the sender. -
Page 11: Warranty And Liability
12. Warranty and liability The warranty of this product follows the General Conditions of Delivery and Payment of ecom instruments GmbH, which are available at www.ecom-ex. com, or alternatively they can be requested directly from the manufacturer. This warranty can be extended by the optional Service Level Agreement. - Page 12 GmbH prior written consent. The contents of this document are presented as they currently exist. ecom instruments GmbH does not provide any express or tacit guarantee for the correctness or completeness of the contents of this docu- ment, including, but not restricted to, the tacit guarantee of market suitability or fitness for a specific purpose unless applicable laws or court decisions make liability mandatory.
