Summary of Contents for Ecom X.COM 200 -EX

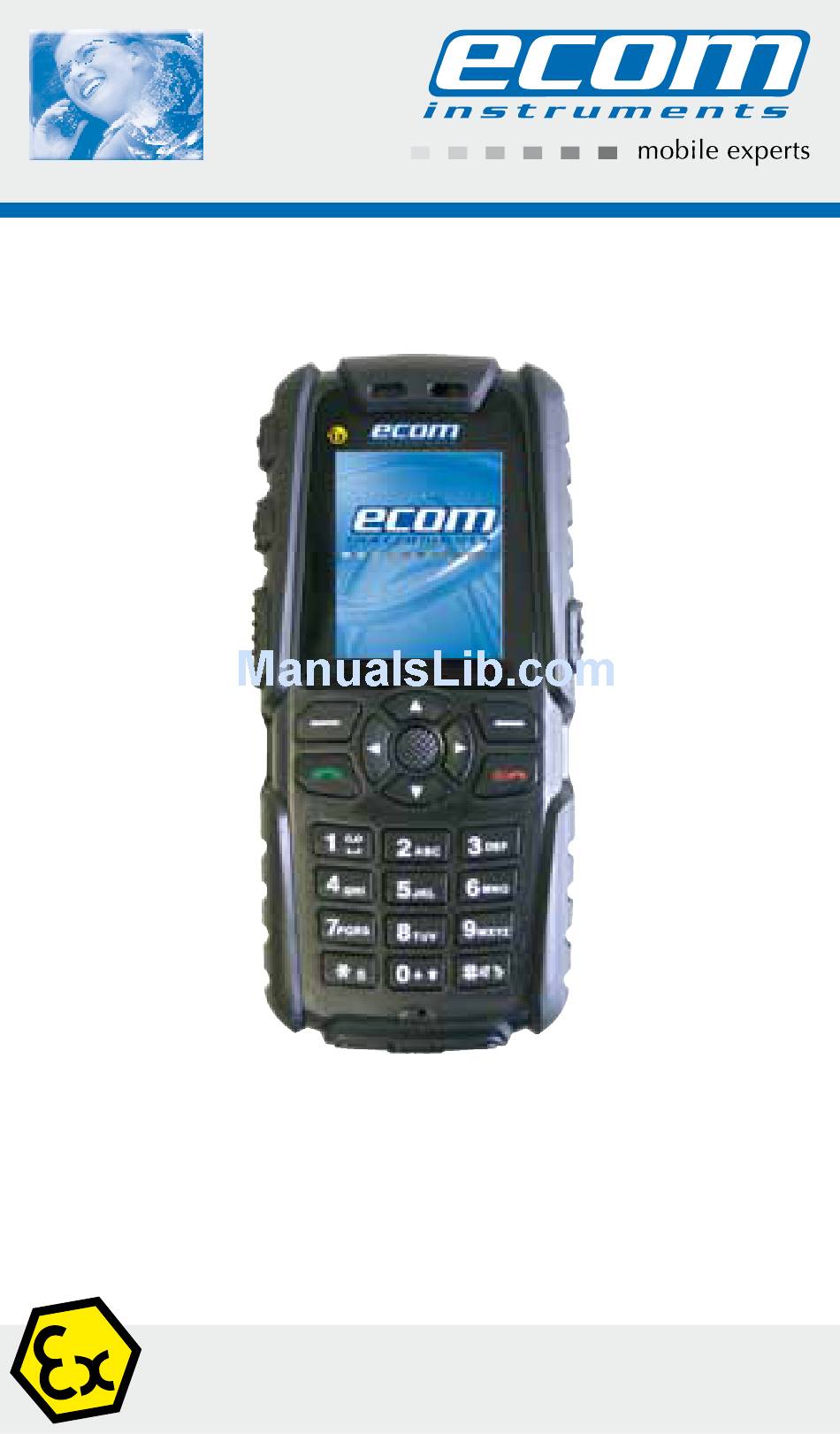

- Page 1 com 200 -Ex Safety instructions...
-
Page 2: Table Of Contents
14. Certificate of Conformity Note: The current safety precautions, operating instructions, EC Declaration of Conformity and the Certificate of Conformity can be downloaded from the relevant product page at www. ecom-ex.com, or alternatively they can be requested directly from the manufacturer. -
Page 3: Application
1. Application com 200 –Ex is an explosion-shielded, water-, dust- and impact-resistant mobile phone for industrial application in areas with an increased risk of explosion in zone 2 in accordance with directive 1999/92/EC (ATEX 137) and 94/9/ EC (ATEX 95). 2. -
Page 4: Safety Regulations
- The battery module may only be charged in a temperature range of 0 °C - 45 °C. - Only accessories approved by ecom instruments GmbH may be used. - Observe the corresponding laws that are in force in the re-... -
Page 5: Ex-Data
5. Ex-Data Certificate of Conformity no.: PTB 09 ATEX 2042 X Ex-designation: II 3G Ex nA nL IIC T4 com 200 –Ex Approved for zone 2, device group II, explosion group IIC (explosive gases, vapours or mist), temperature class T4. 6. -
Page 6: Button Functions
7. Button functions Volume control Navigation buttons (up/down/left/right) Menu button Flashlight Phonebook/ PTT-function Right selection Left button selection button On/Off/Call Accept/Make- end button call button Press and hold to access To activate/deactivate the mailbox the loud- speaker during a call. To display the ring Press and hold type menu... -
Page 7: Rechargeable Battery And Commissioning
8. Rechargeable battery and commissioning 8.1 Changing the battery com 200 –Ex unit may The AM X20 battery module for the only be changed outside the Ex-area. Only those battery modules which are approved by the manufacturer for your device type may be used (see Safety regulations under point 4). - Page 8 4) Securing the SIM: Lower the SIM card holder. Slide the card holder gently to the left over the SIM card. 5) Inserting the battery: Insert the battery. Close the cover for the battery compartment. Turn the screws of the battery compartment clockwise.
-
Page 9: Safety Precautions
8.3 Safety precautions Damaged batteries and chargers should be removed from use and sent to ecom instruments GmbH for inspection. Note: Extreme temperatures can have an adverse effect on char- ging the battery module AM X20. -
Page 10: Repair
100 °C. 9. Repair Repairs are to be conducted by ecom instruments GmbH or by personnel or service centres authorised by ecom instruments GmbH, because the safety of the unit needs to be tested after repairs are implemented. -
Page 11: Disposal
European Directive 2002/96/EC and the German electrical law of 16/03/2005. The costs associated with returning devices to ecom instruments GmbH are to be borne by the sender. In accordance with Article 1, Section 18 and Article 2 of the... -
Page 12: Warranty And Liability
12. Warranty and liability In accordance with our general terms and conditions ecom instruments GmbH provides a warranty for this product for a period of two years regarding its function and material under the specified and permitted operating and maintenance con- ditions. -
Page 13: Ec Declaration Of Conformity
Declaration of EC-Conformity according to directive 94/9/EC (ATEX) We ecom instruments GmbH, declare under our sole responsibility, that the product to which this declaration relates, is in accor- dance with the provision of the following standards, directives and norms: name & adress of manufacturer in the EC ecom instruments GmbH Industriestraße 2... -
Page 14: Certificate Of Conformity
PTB 09 ATEX 2042 X Device: Intrinsically safe mobile phone X.com 200-Ex Manufacturer: ecom instruments GmbH Address: Industriestrasse 2,97959 Assamstadt, Germany The design of this device and its various approved embodiments are defined in the appendix to this type approval test certificate and the documents specified therein. - Page 15 Physikalisch-Technische Bundesanstalt Braunschweig und Berlin Appendix (13) (14) Declaration of conformity PTB 09 ATEX 2042 X (15) Description of the device The X.com 200-Ex intrinsically safe mobile phone is intended for GSM communication in explosive Zone 2 areas. Maximum permissible ambient temperature range: -20°C to +50°C Electrical data Power supply Battery, type AM X20...
- Page 16 GmbH in keiner Form, weder ganz noch teilweise vervielfältigt, weiter- gegeben, verbreitet oder gespeichert werden. Der Inhalt dieses Dokuments wird so präsentiert, wie er aktuell vorliegt. Die ecom instruments GmbH übernimmt weder ausdrücklich noch stillschweigend irgendeine Gewährleistung für die Richtigkeit oder Vollständigkeit des Inhalts dieses Dokuments, einschließlich, aber nicht beschränkt auf die stillschweigende Garantie der Markt-...
