Traxxas 8485 Installation Instructions

LED Light Bar Kit Installation Instructions

#6590 Kit Contents:

• High-Voltage Power Amplifier
• 3x12mm button-head screws (2)

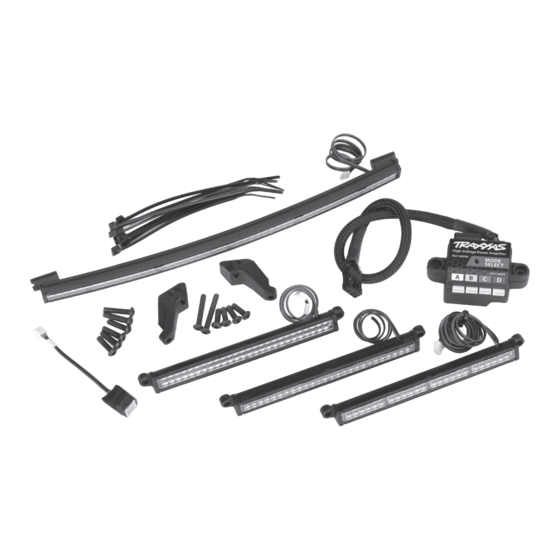

#8485 Kit Contents:
• High-Voltage Power Amplifier
• Front grille LED light bars (2)
• Rear LED light bar
• Windshield LED light bar
• LED light bar mounts (2)
• 2-in-1 wire harness
• 3x10mm button-head screws (4)
• 3x12mm button-head screws (4)
• 3x15mm button-head screws (4)
• 3x20mm button-head screws (2)
• Zip ties (10)

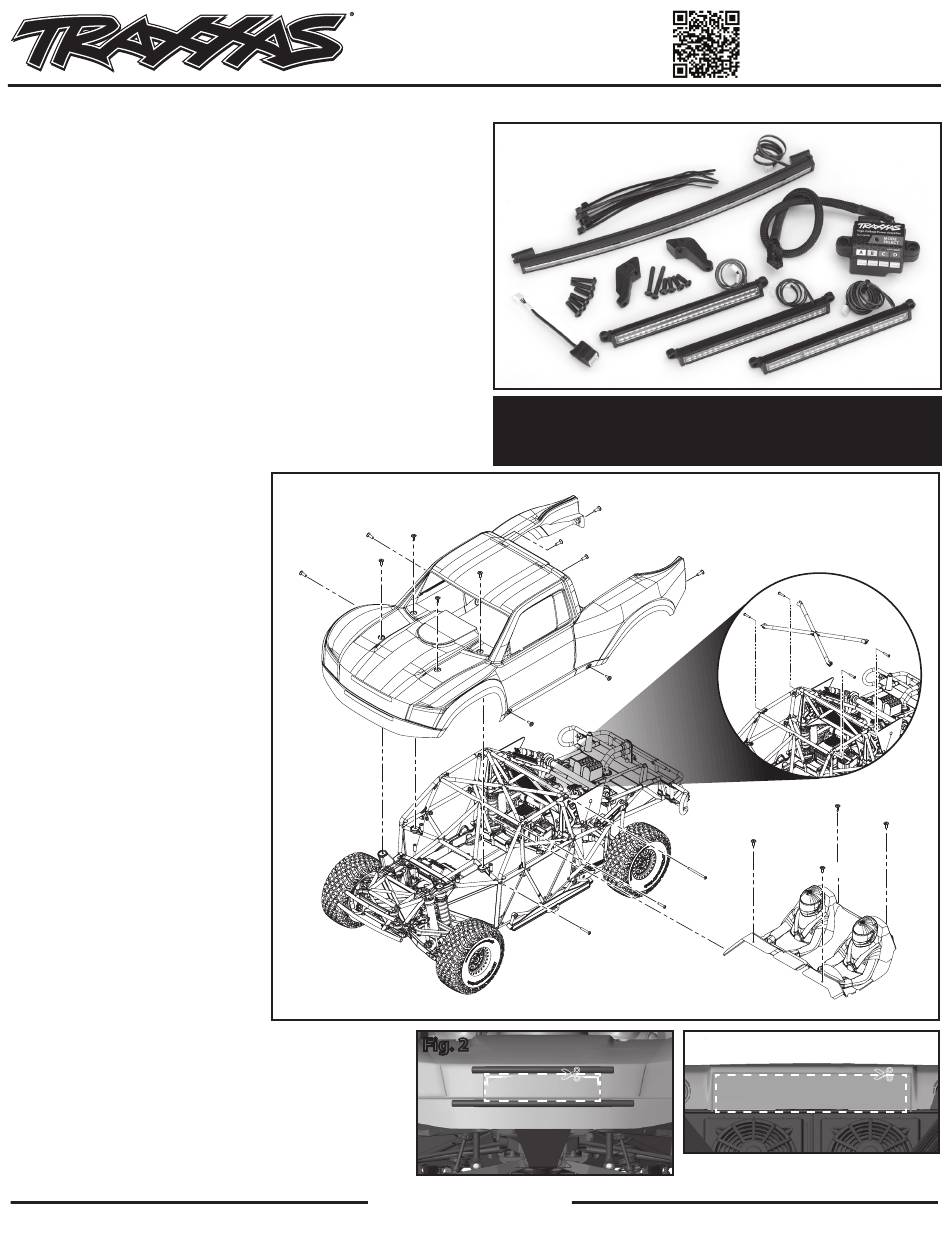

Vehicle Body and Body Interior
Removal (Fig. 1):
1. Remove the 3x8mm flat-head screws
(12) from the vehicle body and
remove the body from the chassis.
2. Remove the 3x15mm button-head
screws (4) from both sides of the
center "X" roof support brace and
remove the brace.
3. Remove the 3x15mm button-head
screw, 3x20mm button-head screw,
and 3x30mm button-head screw
from the left side (driver side) of the
tube chassis to allow removal of the
body interior.
4. Remove the 3x8 flat-head screws from
the body interior (4) and remove the
interior from the chassis.
Body modification (Fig. 2 and 3):
If either the front grille LED light bar (#8486) or the rear LED
light bar (#8487) are being installed, the vehicle body will need
modification. Use Lexan® body scissors to cut out the section(s)
as indicated. Templates are provided at the bottom of page 3.
