Summary of Contents for RS PRO RSSM-20H10

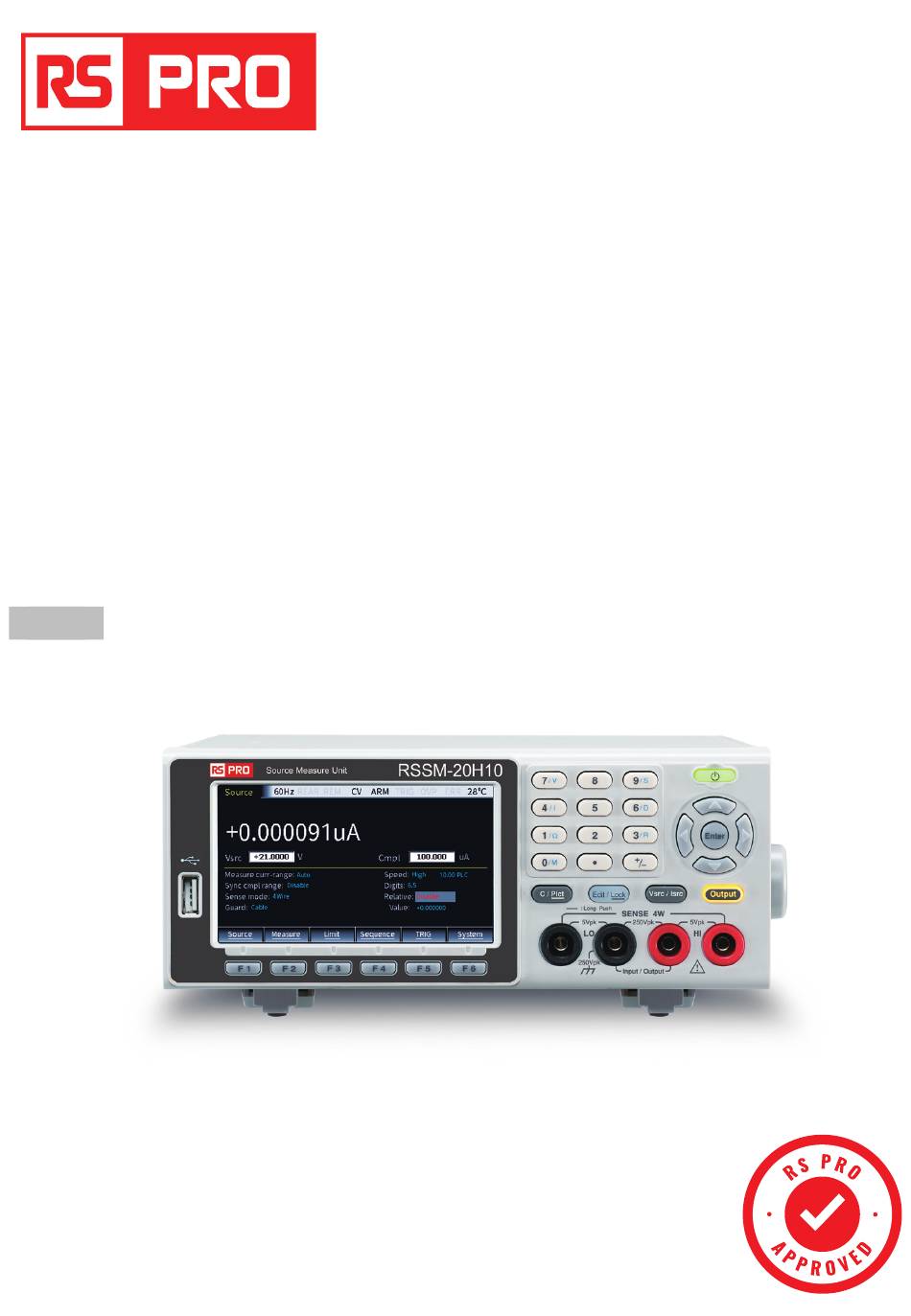

- Page 1 Quick Start Guide RSSM-20H10 Stock number 2602861 rspro.com...
- Page 2 RS PRO shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expense or economic loss.
-
Page 3: Afety Instructions
AFETY INSTRUCTIONS Safety Symbols These safety symbols may appear in the user manual or on the instrument. Warning: Identifies conditions or practices that could result Warning in injury or loss of life. Caution: Identifies conditions or practices that could result Caution in damage to the instrument or to other properties. - Page 4 Power Cord for the United Kingdom When using the instrument in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons. WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow: Earth Blue:...
-
Page 5: Etting Started
ETTING STARTED Main Features • Low noise, the speed of fan is controlled by thermostatic. Features • Compact, meets the 2U height and 1/2Rack width requirement. • 4.3 inch TFT LCD display. • Constant voltage and constant current operation (CV/CC). •... - Page 6 • USB remote control. Interface • RS-232 remote control. • GPIB remote control. • LAN remote control. rspro.com...
- Page 7 Appearance Front Panel Overview RSSM-20H10 RSSM-20H10 Source Measure Unit DC Source Meter Enter Output 5Vpk 250Vpk 5Vpk 250Vpk Description 1. Funtion keys 2. Front input/ output terminals 3. Arrow keys 4. Standby power button 5. Numeric pad and secondary 6. LCD function key 7.
- Page 8 Rear Panel Overview WARNING GPIB 100-240VAC RS232 SLOWBLOW 50/60Hz SENSE INPUT/ GUARD T2.0 OUTPUT PEAK 250V 250V PEAK PEAK PEAK PEAK 250Vpk SENSE Description 1. Main power switch 2. GPIB port 3. LAN port 4. USB port 5. Rear input/ output terminals 6.
- Page 9 AC Voltage 100-240VAC ±10%, 50Hz/60Hz .Check to be sure the operating voltage in your area is compatible. RSSM-20H10 can automatically detect and display the power line frequency (if the wrong power line frequency is displayed, you can set it manually) The fuse is a 2.0A slow-blow fuse.
- Page 10 Turning the Power on Turn on the main power switch on rear panel. The Turn on the RSSM-20H10 is in standby mode after the main main power power switch is turned on, and the standby power switch switch on the front panel is lit in red...
- Page 11 PECIFICATIONS The specifications apply under the following conditions: The RSSM-20H10 is powered on for at least 30 minutes, within +20°C-+30°C. General Specifications Maximum Voltage ±210V Current ±1.05A Power Voltage Resolution Current Resolution 10pA DC Voltage Output Voltage ±21V/ ±1.05A, ±210V/±105 mA...
- Page 12 Temperature ±(0.15 x accuracy specification)/°C Coefficient (0°–18°C & 28°–50°C) DC Current Output Current ±1.05A /±21V, ±105 mA /±210V Source Voltage Limit Min. 0.1% of range Programmed Source 10pA, ±1.00000uA range Resolution 100pA, ±10.0000uA range 1nA, ±100.000uA range 10nA, ±1.00000mA range 100nA, ±10.00000mA range 1uA, ±100.000mA range 10uA, ±1.00000A range...
- Page 13 Temperature: -10˚C ~ 70˚C Storage Humidity: ≤70% environment Power input AC 100V/120V/220V/230V±10%, 50/60Hz Consumption 80W Dimensions 214 (W) x 86 (H) x 356.5 (D) mm Weight Approx. 4.8kg For other detailed specification about RSSM-20H10, please refer to the RSSM-20H10 user manual.
- Page 14 EC Declaration of Conformity We declare that the CE marking mentioned product satisfies all the technical relations application to the product within the scope of council: Directive: EMC; LVD; WEEE; RoHS The product is in conformity with the following standards or other normative documents: ◎...
- Page 15 Africa RS Components SA P.O. Box 12182, Vorna Valley 1686 20 Indianapolis Street, Kyalami Business Park Kyalami, Midrand, South Africa Asia RS Components Ltd. Suite 1601, Level 16, Tower 1, Kowloon Commerce Centre, 51 Kwai Cheong Road, Kwai Chung, Hong Kong China RS Components Ltd.
