Summary of Contents for RS PRO RSPS Series

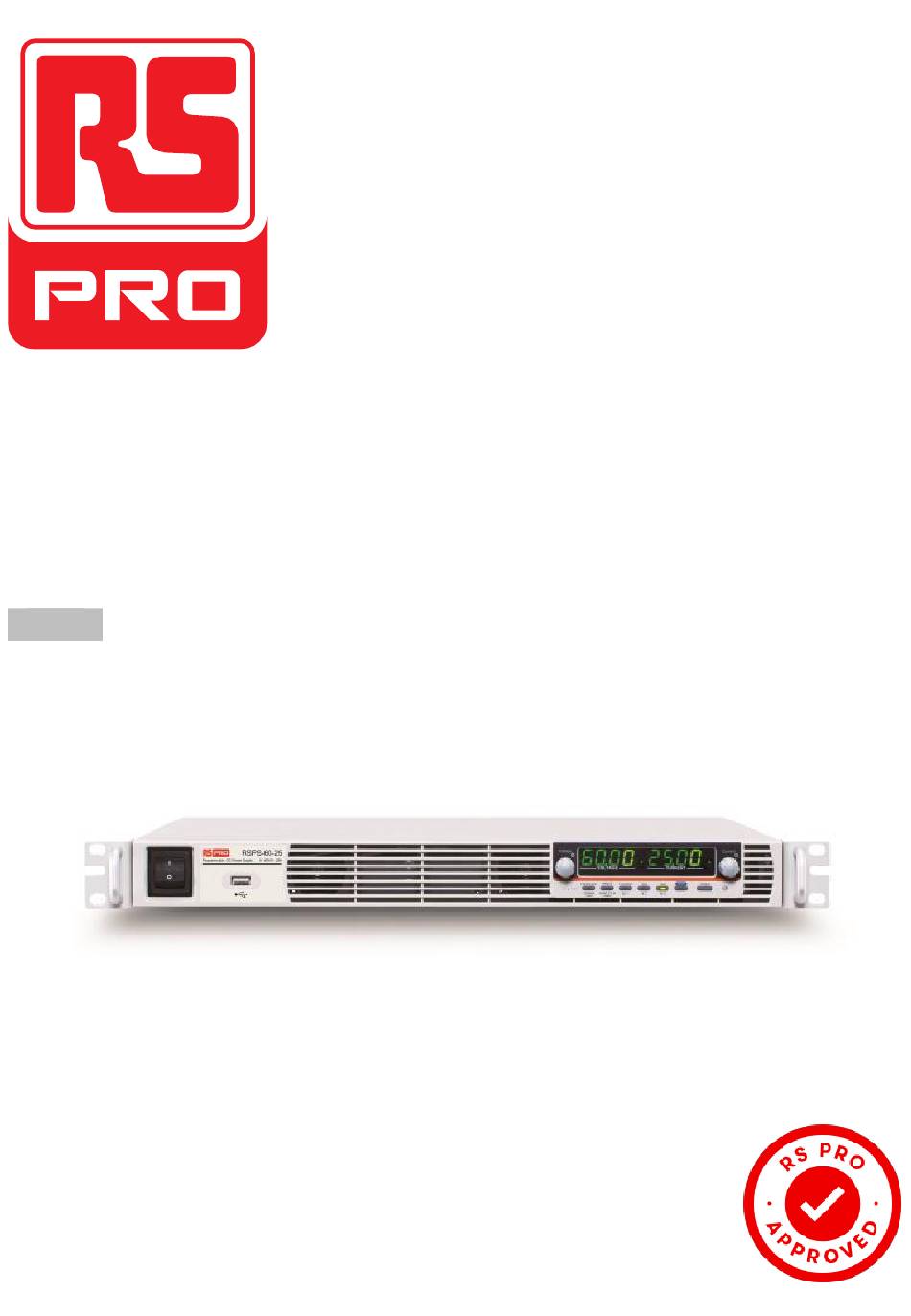

- Page 1 Quick Start Guide RSPS Series Stock number: 2010441 RSPS-6-200 2010442 RSPS-12.5-120 2010443 RSPS-20-76 2010444 RSPS-40-38 2010445 RSPS-60-25 rspro.com...
- Page 2 RS PRO shall not be liable for loss of use of the instrument or other incidental or consequential damages, expenses, or economic loss, or for any claim or claims for such damage, expense or economic loss.
-
Page 3: Afety Instructions
AFETY INSTRUCTIONS This section contains the basic safety symbols that may appear on the accompanying User Manual CD or on the instrument. For detailed safety instructions and precautions, please see the Safety Instructions chapter in the user manual CD. Safety Symbols These safety symbols may appear in the user manual or on the instrument. -
Page 4: Power Cord For The United Kingdom
Power Cord for the United Kingdom When using the instrument in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons. WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow: Earth Blue:... -
Page 5: Etting Started
ETTING STARTED Main Features Performance • High power density: 1500W in 1U • Universal input voltage 85~265Vac, continuous operation. • Output voltage up to 60V, current up to 200A. • Active power factor correction. Features • Parallel master/slave operation with active current sharing. •... - Page 6 Appearance Front Panel Overview Voltage Current VOLTAGE CURRENT Lock/ Local PROT Function Test Shift Output : Long Push Unlock ALM_CLR 9 10 12 13 Description 1. Power Switch 2. USB A Port 3. Air Inlet 4. Voltage Knob 5. Current Knob 6.
-
Page 7: Power Down
Power up 1. Connect the power cord to the socket on the rear panel. 2. Turn on the power switch on the front panel. 3. The power supply will show the Power On settings (Pon) at start up. If no Power On settings are configured, the RSPS will recover the state right before the power was last turned OFF. -
Page 8: How To Use The Instrument
How to Use the Instrument Background The RSPS power supplies use a novel method of configuring parameter values only using the voltage or current knobs. The knobs are used to quickly edit parameter values at 0.01, 0.1 or 1 unit steps at a time. When the user manual says to set a value or parameter, use the steps below. - Page 9 PECIFICATIONS The specifications apply when the RSPS is powered on for at least 30 minutes. Output Model 12.5-12 RSPS 6-200 20-76 40-38 60-25 Rated Output Voltage 12.5 Rated Output Current Rated Output Power 1200 1500 1520 1520 1500 Constant Voltage Mode Model 6-20 RSPS...
- Page 10 Constant Current Mode Model RSPS 6-200 12.5-120 20-76 40-38 60-25 Line regulation Load regulation 20.2 12.6 Ripple and noise r.m.s. mA Temperature ppm/°C 100ppm/°C of rated output current, after a coefficient 30 minute warm-up. Protection Function Model RSPS 6-200 12.5-120 20-76 40-38 60-25 1.25-...
- Page 11 General Specifications Model RSPS All models Weight main unit only Less than 8.7kg Dimensions (W×H×D) 423×43.6×447.2 Cooling Forced air cooling by internal fan. Complies with the European EMC directive 2004/108/EC for Class A test and measurement products. Complies with the European Low Voltage Directive 2006/95/EC and Safety carries the CE-marking.
- Page 12 For 6V model the ripple is measured at 2 ~ 6V output voltage and full output current. For other models, the ripple is measured at 10 ~ 100% output voltage and full output current. For other detailed specification about RSPS series, please refer to the RSPS user manual. rspro.com...
- Page 13 EC Declaration of Conformity We declare that the below mentioned product RSPS-6-200, RSPS-12.5-120, RSPS-20-76, RSPS-40-38, RSPS-60-25 satisfies all the technical relations application to the product within the scope of council: Directive: 2014/30/EU; 2014/35/EU; 2011/65/EU; 2012/19/EU. The above product is in conformity with the following standards or other normative documents: ◎...
- Page 14 Africa RS Components SA P.O. Box 12182, Vorna Valley 1686 20 Indianapolis Street, Kyalami Business Park Kyalami, Midrand, South Africa Asia RS Components Ltd. Suite 1601, Level 16, Tower 1, Kowloon Commerce Centre, 51 Kwai Cheong Road, Kwai Chung, Hong Kong China RS Components Ltd.
