IntesisBox HI-AC-KNX-16/64 Installation Sheet page 2

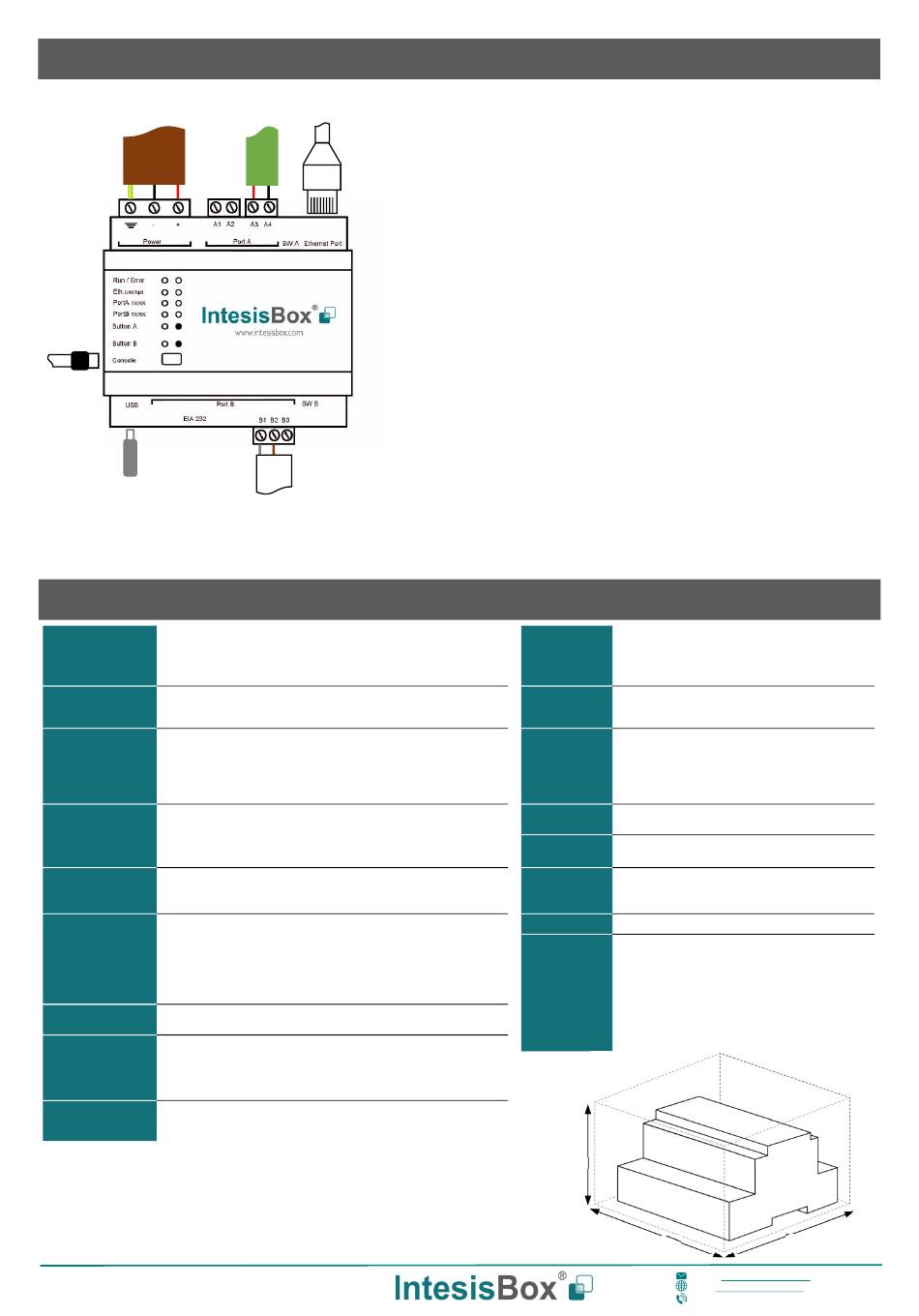

CONNECTIONS
Power Supply
Console
Port
USB
storage
ELECTRICAL & MECHANICAL FEATURES
Plastic, type PC (UL 94 V-0)
Net dimensions (d
Enclosure
Recommended space for installation (d
Color: Light Grey. RAL 7035
Wall.
Mounting
DIN rail EN60715 TH35.
Per terminal: solid wires or stranded wires (twisted or with
ferrule)
Terminal Wiring
1 core: 0.5mm
(for power supply and
low-voltage signals) 2 cores: 0.5mm
3 cores: not permitted
1 x Plug-in screw terminal block (3 poles)
9 to 36VDC +/-10%, Max.: 140mA.
Power
24VAC +/-10% 50-60Hz, Max.: 127mA
Recommended: 24VDC
1 x Ethernet 10/100 Mbps RJ45
Ethernet
2 x Ethernet LED: port link and activity
1 x KNX TP-1 Plug-in screw terminal block orange (2 poles)
2500VDC isolation from other ports
KNX power consumption: 5mA
Port A
Voltage rating: 29VDC
1 x Plug-in screw terminal block green (2 poles)
Reserved for future use
1 x DIP-Switch for PORT A configuration:
Switch A
Reserved for future use
(SWA)
1 x Serial EIA232 (SUB-D9 male connector)
Reserved for future use
PORT B
1 x H-Link Plug-in screw terminal block (3 poles)
1500VDC isolation from other ports
1 x DIP-Switch for PORT B configuration:
Switch B
Reserved for future use (leave OFF, default)
(SWB)
This information is subject to change without prior notice
IntesisBox is a registered trademark of Intesis Software S.L.U.
Power Supply
Ethernet
KNX
Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply.
If using DC power supply:
Respect polarity applied of terminals (+) and (-). Be sure the voltage applied is within the range
admitted (check table below). The power supply can be connected to earth but only through the
negative terminal, never through the positive terminal.
If using AC power supply:
Make sure the voltage applied is of the value admitted (24 Vac). Do not connect any of the terminals
of the AC power supply to earth, and make sure the same power supply is not supplying any other
device.
Ethernet / Console (UDP & TCP)
Connect the cable coming from the IP network to the connector ETH of the gateway. Use an Ethernet
CAT5 cable. If communicating through the LAN of the building, contact the network administrator and
make sure traffic on the port used is allowed through all the LAN path (check the gateway user manual
for more information). Default IP is 192.168.100.246.
PortA / KNX
Connect the KNX TP1 bus to connectors A3 (+) and A4 (-) of gateway's PortA. Respect the polarity.
PortB / H-Link Hitachi
Connect the H-Link terminals (TB2) of Hitachi Outdoor Unit to the connectors B1 and B2 of gateway's
PortB. There is no polarity to be respected.
Console Port
Connect a mini-type B USB cable from your computer to the gateway to allow communication between
the Configuration Software and the gateway. Remember that Ethernet connection is also allowed. Check
the user manual for more information.
USB
Connect a USB storage device (not a HDD) if required. Check the user manual for more information.
Hitachi
H-Link -
TB2
w h): 90x88x56 mm
x x
w h): 130x100x100mm
x x
2 ... 2.5mm 2
2 2
... 1.5mm
Size: Coin 20mm x 3.2mm
Battery
Capacity: 3V / 225mAh
Type: Manganese Dioxide Lithium
Console
Mini Type-B USB 2.0 compliant
Port 1500VDC isolation
Type-A USB 2.0 compliant
Only for USB flash storage device
USB port
(USB pen drive)
Power consumption limited to 150mA
(HDD connection not allowed)
Button A: Check the user manual
Push Button
Button B: Check the user manual
Operation
0°C to +60°C
Temperature
Operational
5 to 95%, no condensation
Humidity
Protection IP20 (IEC60529)
10 x Onboard LED indicators
2 x Run (Power)/Error
2 x Ethernet Link/Speed
LED
2 x Port A TX/RX
Indicators
2 x Port B TX/RX
1 x Button A indicator
1 x Button B indicator
100 mm (h)
100 mm (w)
email:
web:
phone: +34 938047134
130 mm (d)
