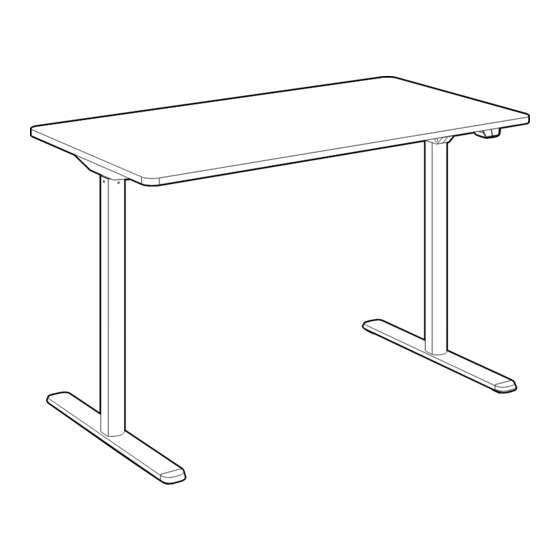

Cab-PC-08453-BK
Cab-PC-08455-WH
Installation guide
< The pictures below are for reference only, please refer to the actual product. >
Please read this product manual carefully before use, and keep it properly.
Technical Data
2
Column Stage
Max. Load Capacity
50KG
15mm/s
Max. Speed
725mm
Lowest Height
Highest Height
1175mm
Tabletop Size
1200mmx600mm
10%（Work continuously for 2 minutes,
Usage frequency
then pause for 18 minutes.）
Product List
Accessory List
Note: The line drawings below are for reference only and may differ slightly from the physical product in some
cases. Please refer to the actual product for accuracy. If any tools are missing or there are problems with
installation, please contact customer service.
4x4 2.5x2.5
Ax4
Bx4
Cx11
Dx8
Ex1
Fx4
Gx2
Preparation before installation
Or
Install on carpet to prevent scratches.
Bring your own pistol drill.
Need two or more people to cooperate together.
Part List
No.
Part
No.
Part
①
⑦
Pedestal x2
Tabletop x1
②
⑧
Bracket x2
Handset x1
③
⑨
Left Lifting
Baffle x1
Column x1
④
Right Lifting
⑩
Power Plug x1
Column x1
⑤
Cable Clip x4
Supporting Beam x1
⑥
Transmission Rod x1
Damping Pad x9
Installation Instruction
⑤
⑥
②
⑨
⑩
③
⑦
Installation Steps
STEP1
Install the Pedestals
①
STEP2
Connect the Left Lifting Column
to the Beam
⑧
④
D
x8
E
x1
4x4
B
E
F
x2
x1
x2
4x4
1
