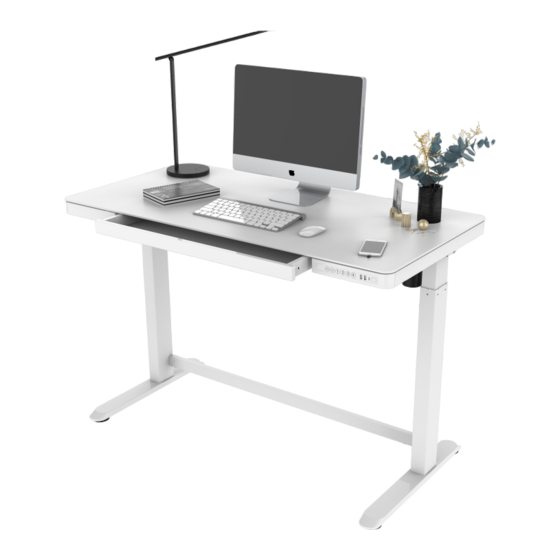

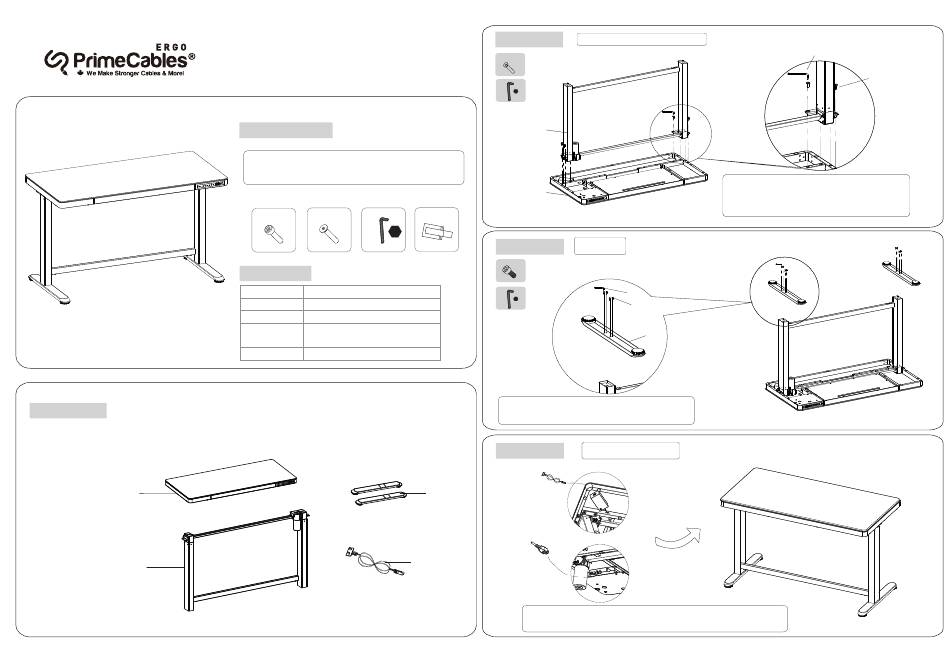

Ergo PrimeCables Cab-PC-08211 Installation Manual

Component list
1. Tabletop X1
1
2. Lifting columns X1
3. Feet X2
4. Power plug X1
2
Item No.: Cab-PC-08211
Installation guide
Accessory list
Attention: The drawings below are for guidance only and they may differ
slightly from the product and fittings received. Please contact our customer
service department should you have any queries.
A B C
x1
x8
x8
M8 5x5
M6
Technical data
Max. Weight Capacity 50KG
Height Range
720-1210mm
No. of Drawer
1
1*USB C, 5V/2.4A, 9V/2A, 12V/1.5A
Charging Ports
2*USB A, Max. 5V/2.4A
Total in 18W
Child Lock Yes
4
STEP 1
Install the tabletop and the lifting columns
B
x8
C
5x5
2
1
D
x2
STEP 2
Cable clamp Install the feet
A
x8
C
5x5
Install the feet (3) to the lifting columns with the screw M6 (A*8)
and tighten it with hex wrench (C)
Caution: Pay attention to the directions.
STEP 3
Install the motor and power lines
3
Connect the motor plug to the control box, then connect one side of the adapter plug to
the adapter, another side to the power line.
Caution: the motor and power lines can be fixed by cable clamp according to actual use.
Connect the tabletop (1) and the lifting columns (2) with the
screw (Bx8) M8 and tighten it with hex wrench (C).
Caution: Please do not touch the wooden surface directly to
the ground during installation, so as not to be scratched by
sharp objects on the table;
C
A
3
C
B
