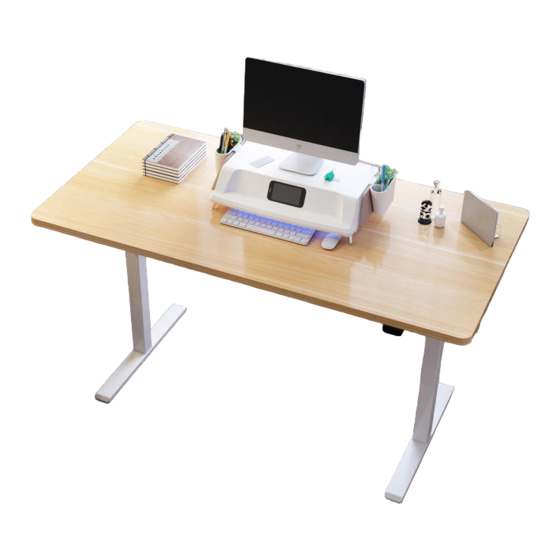

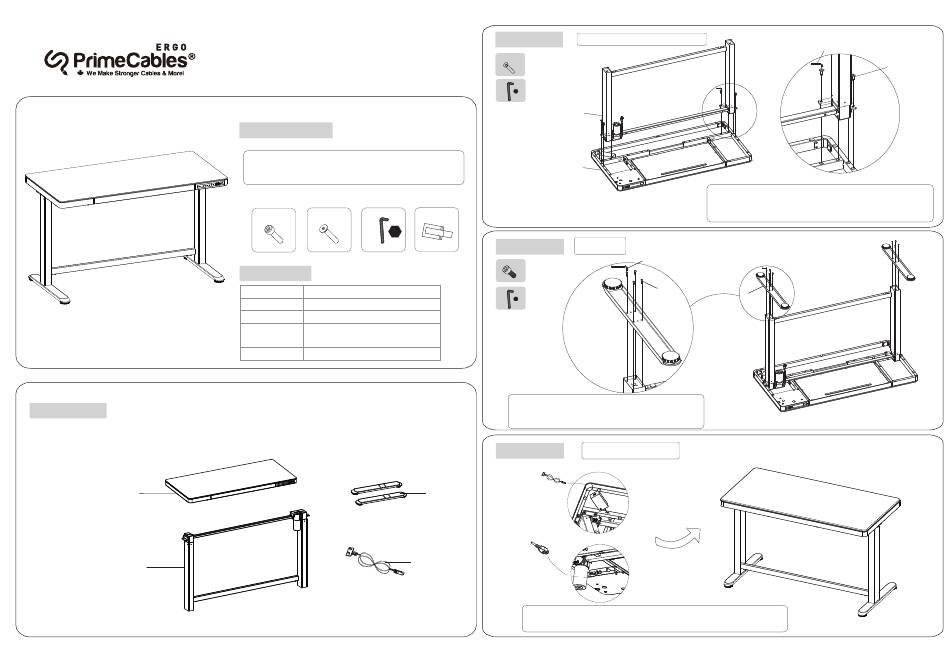

Ergo PrimeCables Cab-PC-08267 Installation Manual

Component list
1. Tabletop X1
1
2. Lifting columns X1
3. Feet X2
4. Power plug X1
2
Model: Cab-PC-08267
Installation guide
Accessory list
Attention: The drawings below are for guidance only and they may differ
slightly from the product and fittings received. Please contact our customer
service department should you have any queries.
A B C
x1
x8
x8
M8 5x5
M6
Technical data
Max. Weight Capacity 50KG
Height Range
720-1210mm
No. of Drawer
1
1*USB C, 5V/3A, 9V/2A, 12V/1.5A
Charging Ports
2*USB A, Max. 5V/3.6A
Total in 18W
Child Lock Yes
STEP 1
Install the tabletop and the lifting columns
B
x8
C
5x5
2
1
D
x2
STEP 2
Cable clamp Install the feet
A
x8
C
5x5
Use a hexagon allen key(C) and M6 screws(Ax8) to install the feet
to the lifting columns.
Note: Please be careful during installation to avoid falling and
damaging the glass; pay attention to the orientation.
STEP 3
Install the motor and power lines
3
4
Connect the motor plug to the control box, then connect one side of the adapter plug to
the adapter, another side to the power line.
Caution: the motor and power lines can be fixed by cable clamp according to actual use.
C
Use a hexagon allen key(C) and M8 screws to assemble the tabletop(1) and
lifting columns(2).
Note: Do not touch the glass surface directly to the ground during installation
to avoid scratching the tabletop by sharp objects. Please be careful when
installing the columns to avoid damaging the glass.
C
A
3
B
