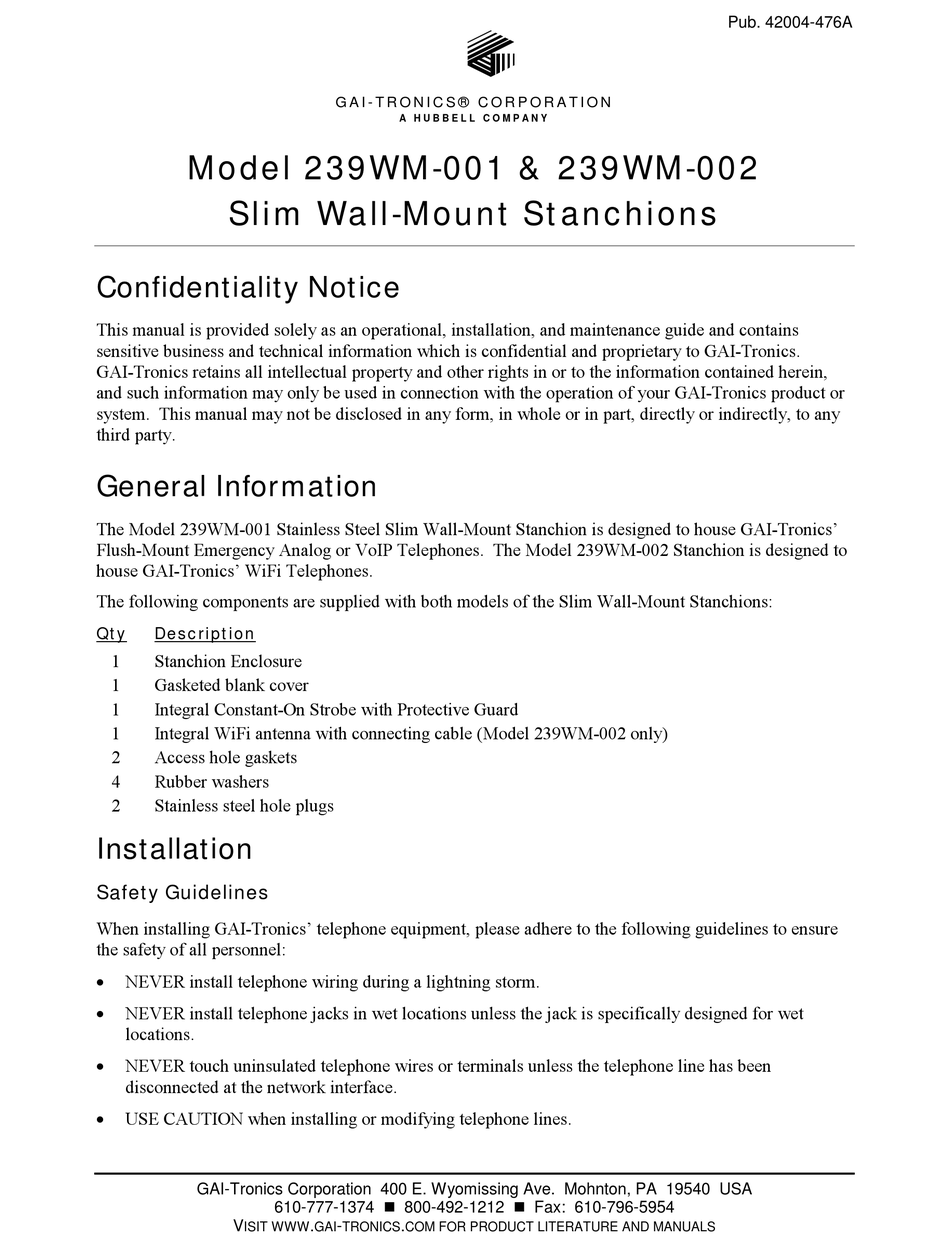

Model 239WM-001 & 239WM-002
Slim Wall-Mount Stanchions
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information which is confidential and proprietary to GAI-Tronics.
GAI-Tronics retains all intellectual property and other rights in or to the information contained herein,
and such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.
General Information
The Model 239WM-001 Stainless Steel Slim Wall-Mount Stanchion is designed to house GAI-Tronics'
Flush-Mount Emergency Analog or VoIP Telephones. The Model 239WM-002 Stanchion is designed to
house GAI-Tronics' WiFi Telephones.
The following components are supplied with both models of the Slim Wall-Mount Stanchions:
Qty Description
1 Stanchion Enclosure
1 Gasketed blank cover
1 Integral Constant-On Strobe with Protective Guard
1 Integral WiFi antenna with connecting cable (Model 239WM-002 only)
2 Access hole gaskets
4 Rubber washers
2 Stainless steel hole plugs
Installation
Safety Guidelines
When installing GAI-Tronics' telephone equipment, please adhere to the following guidelines to ensure
the safety of all personnel:

NEVER install telephone wiring during a lightning storm.

NEVER install telephone jacks in wet locations unless the jack is specifically designed for wet
locations.

NEVER touch uninsulated telephone wires or terminals unless the telephone line has been
disconnected at the network interface.

USE CAUTION when installing or modifying telephone lines.
