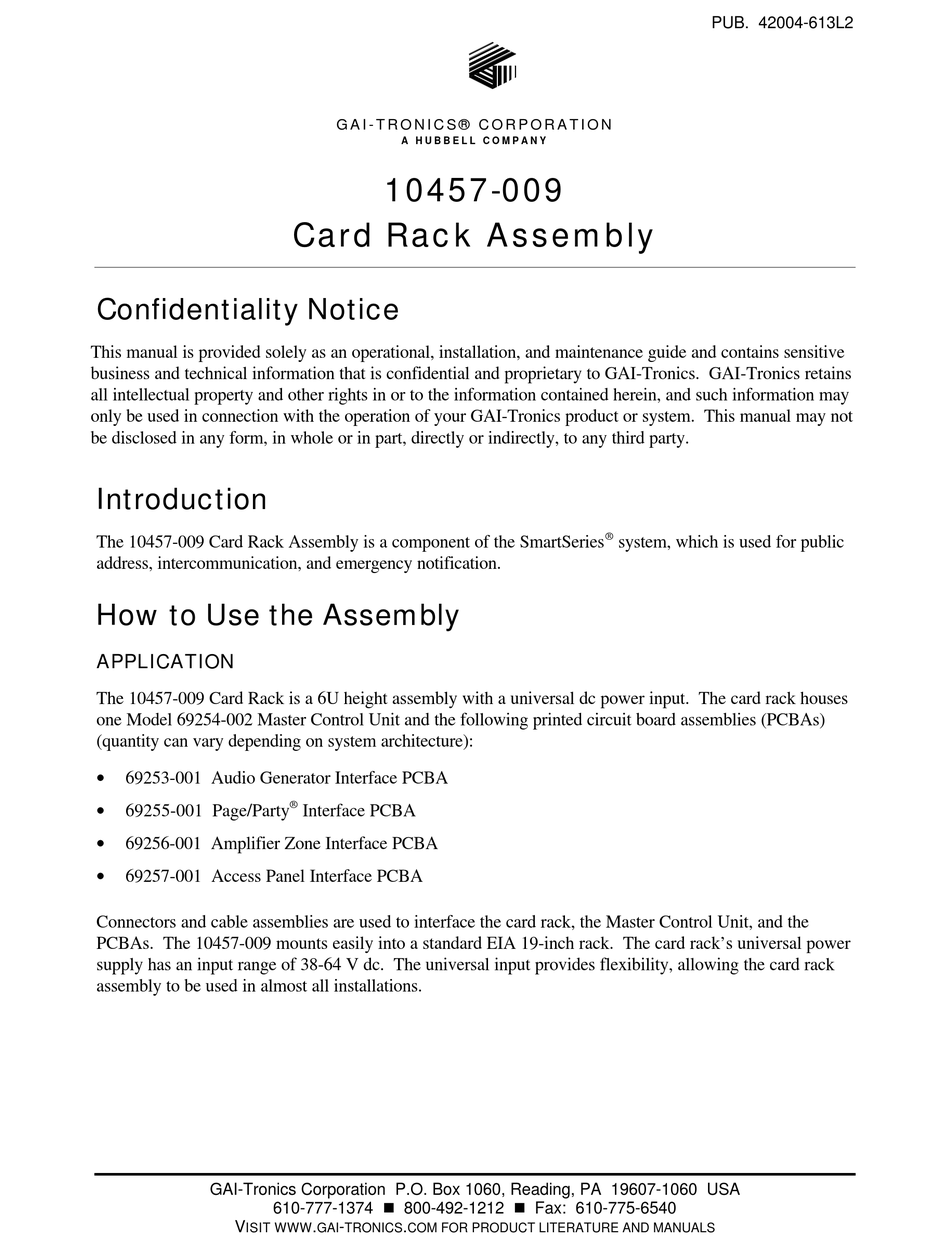

Hubbell GAI-TRONICS 10457-009 Assembly

Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics retains
all intellectual property and other rights in or to the information contained herein, and such information may
only be used in connection with the operation of your GAI-Tronics product or system. This manual may not
be disclosed in any form, in whole or in part, directly or indirectly, to any third party.

Introduction

The 10457-009 Card Rack Assembly is a component of the SmartSeries
address, intercommunication, and emergency notification.
How to Use the Assembly

APPLICATION

The 10457-009 Card Rack is a 6U height assembly with a universal dc power input. The card rack houses
one Model 69254-002 Master Control Unit and the following printed circuit board assemblies (PCBAs)
(quantity can vary depending on system architecture):
•
69253-001 Audio Generator Interface PCBA
•
69255-001 Page/Party
•
69256-001 Amplifier Zone Interface PCBA
•
69257-001 Access Panel Interface PCBA
Connectors and cable assemblies are used to interface the card rack, the Master Control Unit, and the
PCBAs. The 10457-009 mounts easily into a standard EIA 19-inch rack. The card rack's universal power
supply has an input range of 38-64 V dc. The universal input provides flexibility, allowing the card rack
assembly to be used in almost all installations.
GAI-Tronics Corporation P.O. Box 1060, Reading, PA 19607-1060 USA
V
ISIT WWW
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y
10457-009
Card Rack Assembly
®
Interface PCBA
610-777-1374 n 800-492-1212 n Fax: 610-775-6540
. - .
GAI TRONICS COM FOR PRODUCT LITERATURE AND MANUALS
PUB. 42004-613L2
®
system, which is used for public
