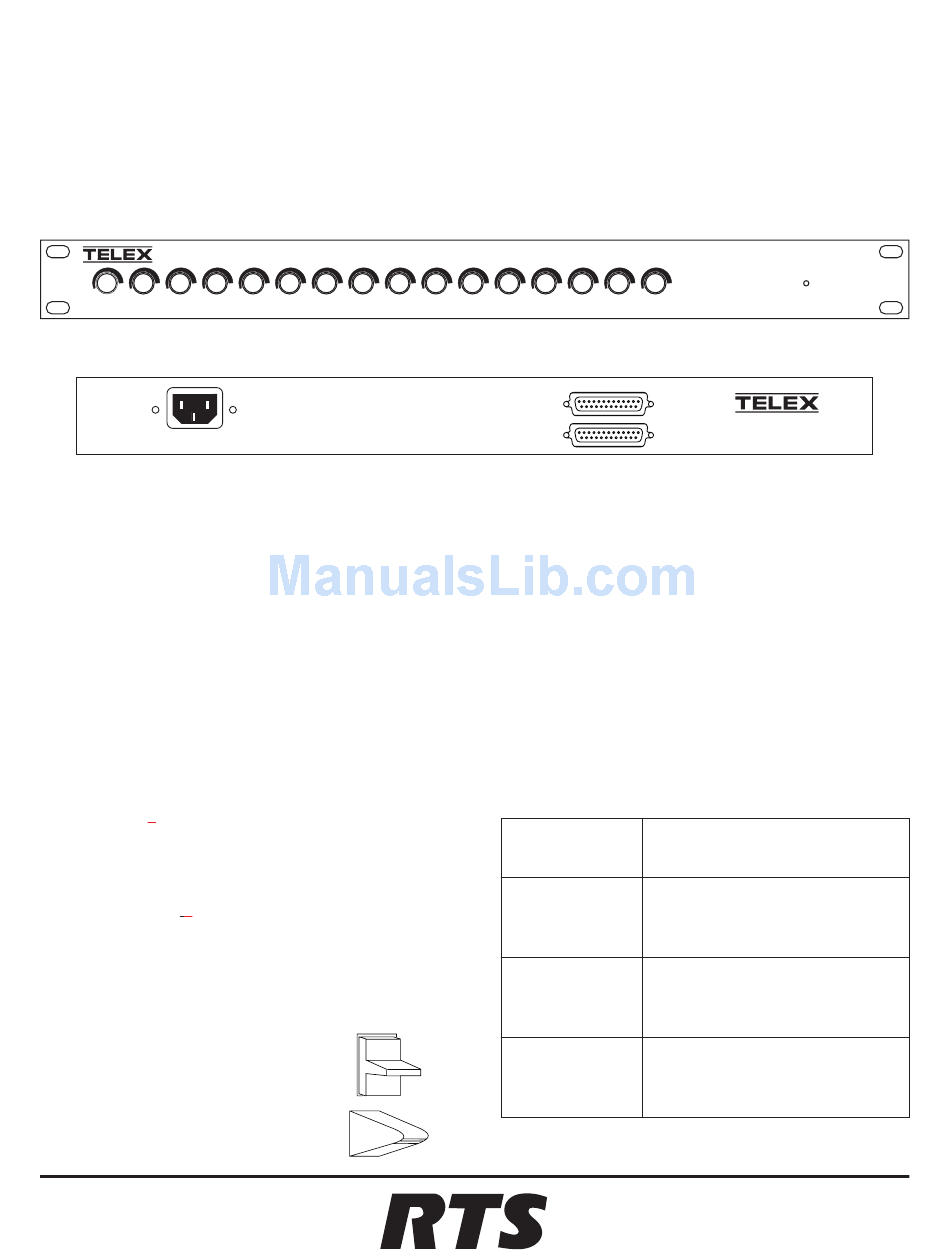

FOR KP96/97/98 KEYPANELS WITH KP96-RC REAR CONNECTOR PANELS
AND EKP96/97 EXPANSION PANELS WITH DUAL CONTROL CONNECTORS
®
General Description
The LCP-100A Level Control Panel gives keypanel opera-
tors direct access to the crosspoint gain adjustment feature
of the intercom system. It lets them adjust the individual
listen levels for 16 keypanel or expansion panel keys.
Upgrade EEPROM
The LCP-100A is compatible with all KP96, KP97, and
KP98-7 Keypanels. However, the supplied keypanel
EEPROM may need to be installed in some cases. Since the
EEPROM is different for each keypanel model, the
LCP-100A is packaged under three different catalog num-
bers. See Table 1. The following paragraphs summarize the
keypanel model and EEPROM version identification, and
the procedure to replace the EEPROM. Note that the new
EEPROM changes the keypanel DIP switch functions as
summarized on page 2.
Keypanel Model Identification
The KP98-7 Keypanel has all pushbutton keys. Identify
KP96 and KP97 Keypanels by the talk key style.
KP96 Keypanels (Carling Lever Keys)
KP97 Keypanels (TMC Lever Keys)
9330-7616-001 Rev A 10/98
USER INSTRUCTIONS
MODEL LCP-100A LEVEL CONTROL PANEL
EXP . DATA IN
EXP . DATA OUT
Keypanel EEPROM Version Identification
Keypanels with programming keypad: Tap key se-
quence CLR-0-8. Then use the scroll up or down key to
locate the version number. It will be something like V82 or
V83G etc.
Note: If you are not able to determine the version with this
key sequence, or if the keypanel does not have a program-
ming keypad, replace the EEPROM.
Table 1. LCP-100A catalog numbers and usage
Catalog Number
(On Box)
9000-7616-100
9000-7616-110
9000-7616-120
™
LCP-100A
®
TELEX COMMUNICATIONS, INC.
Minneapolis, MN.
Usage
KP96 Keypanel. Install new
keypanel EEPROM if current
keypanel version is before 8.4G.
KP97 Keypanel. Install new
keypanel EEPROM if current
keypanel version is before 8.4G.
KP98-7 Keypanel. Install new
keypanel EEPROM if current
keypanel version is before 8.3.
