Summary of Contents for Abus IPCV10020

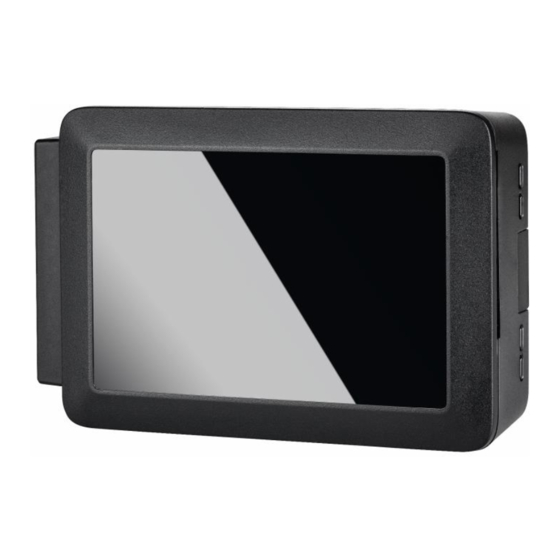

- Page 1 IPCV10000 / IPCV10010 / IPCV10020 User manual This user manual contains important information for installation and operation. This should be also noted when this product is passed on to a third party. Therefore look after these operating instructions for future reference!
-
Page 2: Table Of Contents
Specification ......................4 LED Display ......................5 Connections ......................5 IPCV10010 – ABUS Quad View Addon for ABUS IP Camera Viewer ......6 Features ........................6 IPCV10020 – ABUS Overlay Add-on für ABUS IP Camera Viewer ......6 Features ........................6 How to install the ABUS IP Camera Viewer .............. -
Page 3: Declaration Of Conformity
Declaration of conformity ABUS Security-Center hereby declares that the enclosed product complies with the requirements of the following directives concerning the product: RED Directive (2014/53/EU) EMC Directive (2014/30/EU) Low Voltage Directive (2014/35/EU) RoHS Directive (2011/65/EU) The full EU declaration of conformity can be obtained from the following address: ABUS Security-Center GmbH &... -
Page 4: Ipcv10000 - Abus Ip Camera Viewer (1-Channel)
IPCV10000 – ABUS IP Camera Viewer (1-channel) Features • Live image display of 2 MPx network cameras on one monitor • Display expandable up to 4 cameras (IPCV10010) • Practical solution for numerous customer needs • Ideal for sales rooms, for example as a confrontation monitor •... -
Page 5: Led Display
LED Display PWR-LED ACT-LED Color Status Description No power supply connected Power supply connected Blink Supply voltage below 4,63 Volt No access to SD card Accessing SD card (operating system) not possible Green or no SD card available Flashes every time accessing the SD card (read Blink and write access) Connections... -
Page 6: Ipcv10010 - Abus Quad View Addon For Abus Ip Camera Viewer
• Software extension using activation code • No further installation or infrastructure necessary The Overlay add-on is an extension for the ABUS IP Viewer for displaying a logo and text line. This function makes it possible to optimize the point of sale. The positions of... -
Page 7: How To Install The Abus Ip Camera Viewer
• When operating via network cable, connect the cable now with the ABUS IP Camera Viewer. If operating via WiFi, proceed directly with the next step. • Connect the ABUS IP Camera Viewer to a USB power supply to turn on the device and provide power. -
Page 8: Configuration Of The Abus Ip Camera Viewer The Network
• Connection via ABUS IP Installer If you are already using the ABUS IP Installer and have connected the ABUS Viewer to the network, you can find the ABUS Viewer in the device list and access the web interface of the ABUS Viewer. -
Page 9: User Interface
User interface Explanation of the user interface for making configuration settings on the ABUS IP Camera Viewer. Overview The menu "Overview" provides information about currently displayed cameras. Cameras The menu "Cameras" is used for automatic or manual setup and adding of IP cameras. - Page 10 • Password ➔ Password change for the ABUS Viewer • Save and recovery ➔ Backup configuration settings of the ABUS Viewers in a cfg file ➔ Load backup of configuration settings from a cfg file • Update ➔ View the current software version and search automatically for updates •...
-
Page 11: Password Reset
IP camera is not found. If the ABUS IP Camera Viewer is connected to two networks (WiFi and wired at the same time), by using the WiFi only for the Internet connection, the camera search may not work. - Page 12 Imprint These operating instructions are published by ABUS Security-Center GmbH & Co.KG, Linker Kreuthweg 5, 86444 Affing, Germany. No reproduction (including translation) is permitted in whole or part e.g. photocopy, microfilming or storage in electronic data processing equipment, without the express written consent of the publisher.
