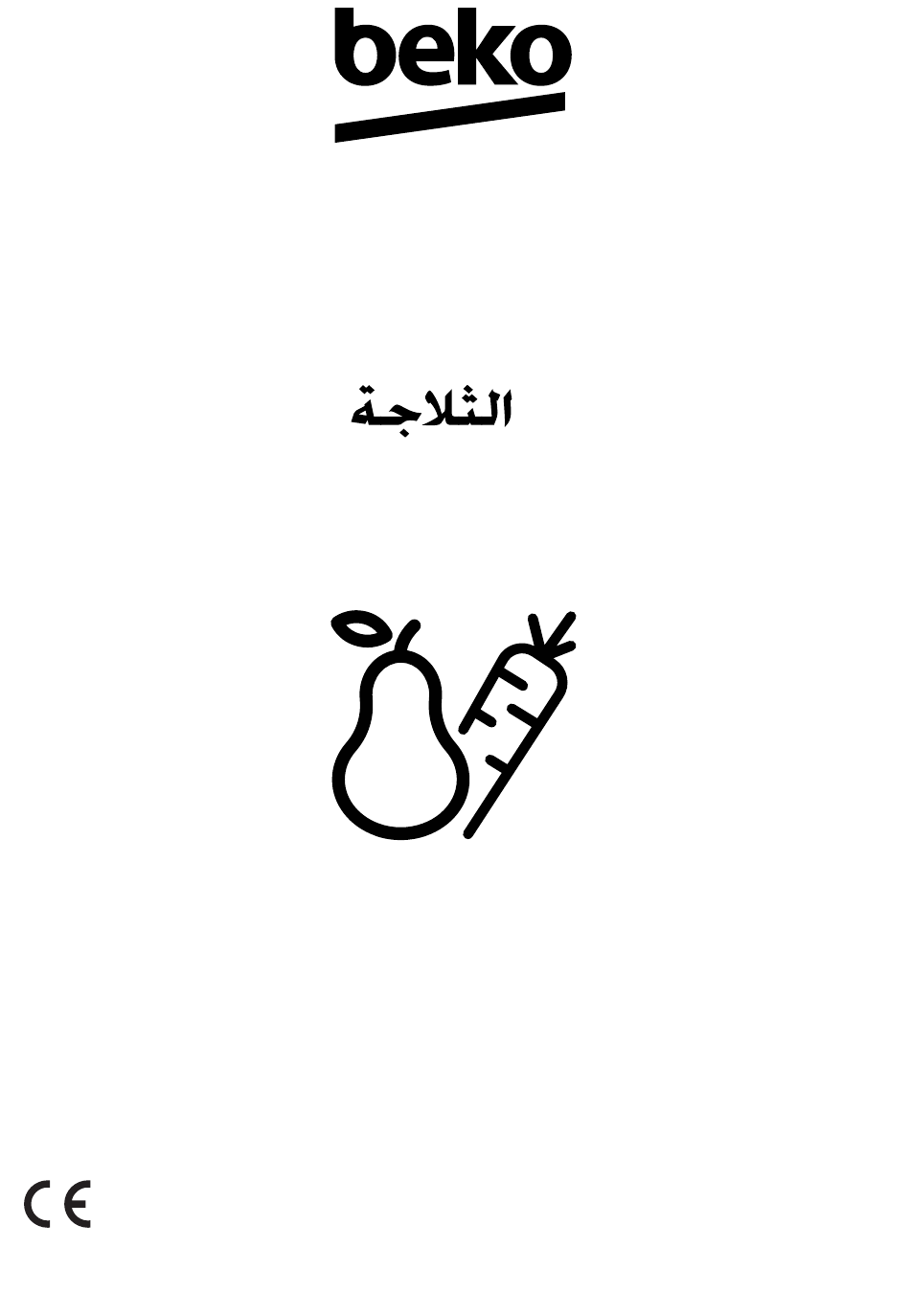

- Page 1 Refrigerator User Manual دليل المستخدم מדריך למשתמש מקרר DN152140-DN 152240-DN 152240 X-DN152240S DN152240PT EN/AR/HE 57 0614 0000/AJ- EN-AR-HE...
- Page 2 Please read this manual first! Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.
-
Page 3: Table Of Contents
CONTENTS 1 The refrigerator 4 Preparation 2 Important Safety 5 Using your refrigerator 16 Warnings Indicator Panel .........16 Intended use ........4 Door Open Warning ......19 General safety ........5 Freezing fresh food ......20 For products with a ......9 Recommendations for preservation of water dispenser;... -
Page 4: The Refrigerator
The refrigerator Freezer compartment shelf Adjustable legs Auto Icematic Freezer compartment door racks Ice storage container Egg holder Auto Icematic water tank Water dispenser filling container Temperature setting indicator Water dispenser tank Adjustable glass shelves Fridge compartment door shelves Odor filter Sliding and rotary storage containers Illumination lens Freezer compartment... -
Page 5: Important Safety Warnings
Important Safety Warnings Please review WARNING: following information. Do not damage the Failure to observe this refrigerant circuit. information may cause injuries material damage. Otherwise, all WARNING warranty reliability Do not use electrical commitments will become appliances inside invalid. food storage Original spare parts will compartments of the... -
Page 6: General Safety
and other residential type • For products with a environments; freezer compartment; – bed and breakfast type Do not put bottled environments; and canned liquid – catering and similar beverages in the non-retail applications. freezer compartment. Otherwise, these may General safety burst. - Page 7 with drilling or cutting • Never store spray tools. The refrigerant cans containing that might blow out flammable and explosive when the gas channels substances in the of the evaporator, pipe refrigerator. extensions or surface • Do not use mechanical coatings are punctured devices or other means causes skin irritations...
- Page 8 house complies with • For manually controlled standards. refrigerators, wait for at least 5 minutes to start the • Exposing the product refrigerator after power to rain, snow, sun and failure. wind is dangerous with respect to electrical • This operation manual safety.
- Page 9 • Do not spray substances A possible problem in containing inflammable power cable may cause gases such as propane fire. gas near the refrigerator • Refrigerator may move to avoid fire and if adjustable legs are not explosion risk. properly secured on the •...
-
Page 10: For Products With A
Consult Professional plumbers is you are not sure that there is no water hammer effect in your installation. • Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum and 100°F (38°C) -
Page 11: Package Information
HC warning This product complies with If your product's cooling system EU WEEE Directive (2012/19/ contains R600a: EU). This product bears a This gas is flammable. Therefore, pay classification symbol attention to not damaging the cooling waste electrical and electronic system and piping during usage and equipment (WEEE). -
Page 12: Recommendations For The Fresh Food Compartment
Recommendations for the • For products with a freezer compartment; You can store maximum amount of fresh food compartment food items in the freezer when you *May not be available in all models remove the shelf or drawer of the freezer. Energy consumption value stated for Do not allow the food to touch the your refrigerator has been determined... -
Page 13: Installation
Installation Please remember that the manufacturer 2. Please install the 2 plastic wedges as shall not be held liable if the information illustrated in the figure. Plastic wedges will provide the required distance between given in the instruction manual is not your refrigerator and the wall in order to observed. -
Page 14: Electric Connection
Electric connection Placing and Installation Connect your product to a grounded If the entrance door of the room where socket which is being protected by a fuse the refrigerator will be installed is not wide with the appropriate capacity. enough for the refrigerator to pass through, Important: then call the authorised service to have them remove the doors of your refrigerator... -
Page 15: Adjusting The Legs
Adjusting the legs Changing the illumination lamp If your refrigerator is unbalanced; You can balance your refrigerator by To change the Bulb/LED used for turning the front legs of it as illustrated in illumination of your refrigerator, call your the figure. The corner where the leg exists AuthorisedService. -
Page 16: Preparation
Preparation • Your refrigerator should be installed at • The baskets/drawers that are provided least 30 cm away from heat sources such with the chill compartment must always as hobs, ovens, central heater and stoves be in use for low energy consumption and and at least 5 cm away from electrical for better storage conditions. -
Page 17: Using Your Refrigerator
Using your refrigerator Indicator Panel Indicator panels may vary depending on your product's model. Indicator panel aids in using your refrigerator with its audio and visual functions. 3. Fridge Compartment Temperature Freezer Compartment Temperature Indicator Indicator Indicates the temperature set for Fridge Error Status Indicator compartment. - Page 18 Freezer compartment setting / Icematic Economic usage indicator on-off button Quick fridge function indicator Fridge compartment setting button Quick fridge function button Error status indicator Fridge compartment temperature setting Key lock indicator indicator Eco Extra Function indicator Quick freeze function button Eco Extra/Vacation Button Freezer compartment temperature setting indicator...
- Page 19 1. Freezer Compartment Setting / 4. Key Lock Indicator Icematic On-Off Button Use this function if you do not want your refrigerator temperature setting changed. This function allows you to make the freezer compartment temperature setting. Press Fridge compartment setting button Press this button to set the temperature of and Freezer compartment setting button the freezer compartment to -18, -20, -22...
-
Page 20: Door Open Warning
8. Ice Off indicator 13. Freezer Compartment Temperature Setting Indicator Icematic will not run when the indicator of Indicates the temperature set for the this function is active. See Item 1 to enable the Icematic. Freezer Compartment. 14. Quick Freeze Function 9. -
Page 21: Freezing Fresh Food
Freezing fresh food • Frozen food must be used immediately after they are thawed and they should • Wrap or cover the food before placing never be re-frozen. them in the refrigerator. • Please observe the following instructions • Hot food must cool down to the room to obtain the best results. -
Page 22: Recommendations For Preservation Of Frozen Food
Recommendations for Placing the food preservation of frozen food • Prepacked commercially frozen food should be stored in accordance with the Various frozen food such Freezer compartment frozen food manufacturer's instructions as meat, fish, ice cream, shelves vegetables and etc. for a ( 4 star) frozen food storage compartment. -
Page 23: Deep-Freeze Information
Deep-freeze information • Foodstuff must be packaged in an airtight manner to prevent them from drying Food must be frozen as rapidly as possible even if they are going to be kept for a short when they are put in a refrigerator in order to time. -
Page 24: Description And Cleaning Of Odor Filter
Description and cleaning of Snack compartments odor filter: Use these compartments for your food which you want store at a temperature a Odor filter prevents unpleasant odor build- few degrees below the fridge compartment. up in your refrigerator. You can increase the inner volume of your Pull the cover, into which the odor filter refrigerator by removing any of the snack is installed, downwards and remove as... -
Page 25: Water Dispenser
Water Dispenser Filling the water dispenser water tank Water tank filling reservoir is located inside (in some models) the door rack. Open the reservoir cover and Water dispenser is a very useful feature fill in clean potable water. And then, close based on reaching cold water without the lid. - Page 26 • Use clean and pure potable water only. • Capacity of the water tank is 3 liters; do not overfill. • Push the arm of the water dispenser with a rigid glass. If you are using disposable plastic glasses, push the arm with your fingers from behind the glass.
-
Page 27: Rotary Storage Container
Rotary storage container Water tray Water that dripped while using the water (in some models) dispenser accumulates in the spillage tray. Sliding body shelf can be moved to left or Take out the plastic strainer as shown in right in order to allow you place long bottles, the figure. -
Page 28: Blue Light
Blue light Auto Icematic (in some models) (in some models) Foodstuff stored in the crispers that are Auto Icematic system allows you to obtain enlightened with a blue light continue their ice from the refrigerator easily. Remove the photosynthesis by means of the wavelength water tank in the fridge compartment, fill it effect of blue light and thus, preserve their wilt water and install it back to obtain ice... -
Page 29: Icematic And Ice Storage Container
Icematic and ice storage container *May not be available in all models Using the Icematic Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice. -
Page 30: Maintenance And Cleaning
Maintenance and cleaning Never use gasoline, benzene or similar Never use cleaning agents or water substances for cleaning purposes. that contain chlorine to clean the outer surfaces and chromium coated parts of We recommend that you unplug the the product. Chlorine causes corrosion on appliance before cleaning. -
Page 31: Troubleshooting
Troubleshooting Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product. The refrigerator does not operate. - Page 32 The refrigerator is running frequently or for a long time. New product may be wider than the previous one. Larger refrigerators operate for a longer period of time. It is normal that the product • The ambient temperature may be high. >>> operates for longer periods in hot ambient.
- Page 33 Temperature in the fridge or freezer is very high. Fridge compartment • The fridge temperature is adjusted to a very high value. >>> temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature.
- Page 34 Bad odor inside the refrigerator. Clean the inside of the refrigerator • No regular cleaning is performed. >>> regularly with a sponge, lukewarm water or sodium bicarbonate diluted in water. Use a different • Some containers or package materials may cause the smell. >>> container or different brand packaging material.
- Page 49 (FR ([WUD 3 2 1...
- Page 51 8 2 6 8 3 2 1...
- Page 57 :RoHS RoHS EU/2011/65 HC R600a R134a...
- Page 58 kPa 620 90psi WEEE .WEEE...
- Page 62 13 4 16 4 18 6 18 WEEE 6 19 7 :RoHS 20 7 20 7(HC 21 7 23 8 24 24 25 9 9 10 26 10 10 10 11 11 11...
- Page 63 ‡ ‡ ‡ ‡ ‡...
- Page 64 ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡...
- Page 65 ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡...
- Page 66 ‡ ‡ ‡ .10°C ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡...
- Page 67 1R )URVW µ...
- Page 69 60-70...
- Page 70 4 3...
- Page 71 ‡ ‡ ‡ ‡ ‡ ‡ ‡...
- Page 72 ‡...
- Page 74 ‡ ‡ ‡ ‡ 18- ‡ ‡...
- Page 75 ‡ ‡...
- Page 76 ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ 4°C -18°C 4°C -24°C -22,-20 4°C -18°C 2°C -18°C...
- Page 77 18-...
- Page 78 --24 -22 -20 --18 2 4 6 8 «1,2,3...
- Page 80 8 2 4 6 8 -18 24 -22 -20 --18 «1,2,3...
- Page 81 © 30 © 5 © 2 ª ©...
- Page 82 ‡ 2.5 .20°C...
- Page 83 ‡ ‡ ‡ ‡ "...
- Page 84 R134a ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡...
- Page 85 WEEE SVL kPa 620 µ SVL N3D WEEE EU/2012/19 WEEE ‡ RoHS RoHS ‡ EU/2011/65 )ƒ ƒ& )ƒ ƒ& ‡ ‡ R600a ‡ ‡...
- Page 86 ‡ ‡ ‡ ‡ ‡ 1 ‡ ‡ ‡ ‡...
- Page 87 ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡...
- Page 88 ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡ ‡...
- Page 89 ± ± ± ‡ ‡ ‡ ‡ ³ ‡ ‡ ±...
- Page 91 13 16 4 17 4 17 7 18 8 18 WEEE 19 20 8 20 RoHS 21 8 23 8 24 8 HC 24 9 25 9 26 10 10 10 11 11 11 11...
- Page 92 ‡ ‡ ‡ ‡ ‡...
