Fortinet FortiDDoS 3000F Quick Start Manual page 7

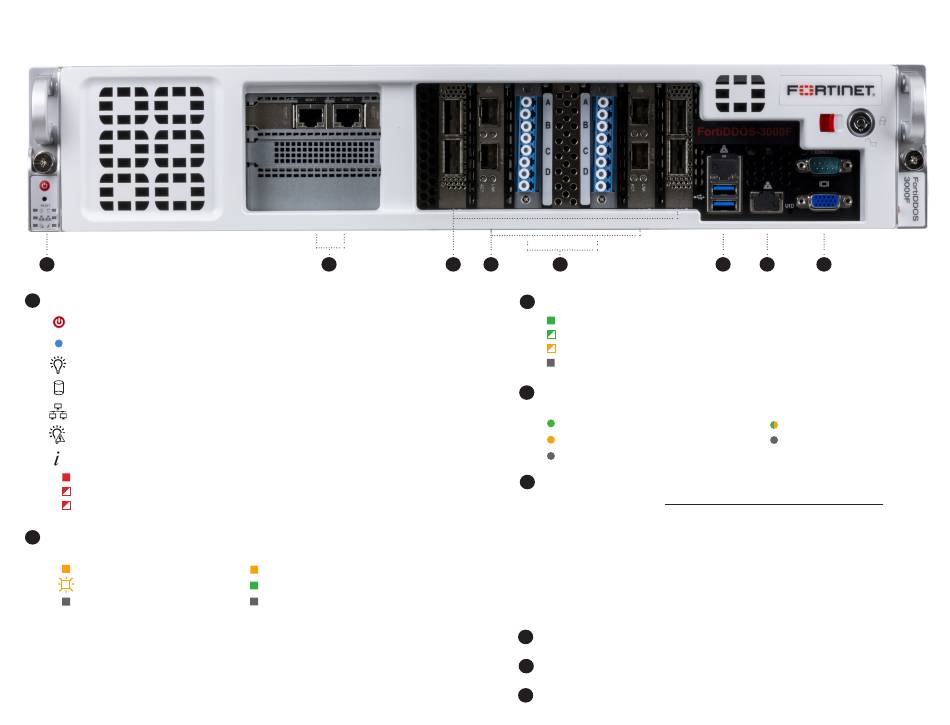

FDD-3000F Front
1
1
System Panel
Power button press on/off
Reset resets the device
Power LED indicates that the system is operating normally
HDD LED flashes when there is data activity
LAN 1&2 LED flashes when there is network activity
Power Supply LED indicates a PSU failure
System Information LED
Red: System overheated
Flashing Red (1sec): Fan failure
Flashing Red (4sec): Power failure
2
MGMT1 & MGMT2/HA (RJ45) MGMT2 is the default HA port
LINK/ACT
Amber: Link established
Flashing Amber: Data activity
Off: No link established
12
2
SPEED
Amber: 1000Mbps
Green: 100Mbps
Off: 10Mbps or not connected
3 4 5
3
Ports 1, 2, 7, 8 (QSFP28)
Green: 100Gbps link
Flashing Green: Data activity
Flashing Amber: Link error
Off: No link established
4
Ports 3, 4, 5, 6 (SFP+/SFP28)
LINK
Green: 25Gbps link
Amber: 10Gbps link
Off: No link established
5
Optical Bypass Ports (no LED Indicators)
Bypass ports work with Single Mode 1310-1550nm transceivers only. Check the
status using the GUI or use CLI command: get system bypass-status
Bypass Port Connectivity
Local Network Link > Bypass Port A
Bypass Port C > FDD Ports 1/3/5/7
WAN Network Link > Bypass Port B
Bypass Port D > FDD Ports 2/4/6/8
In Bypass, Ports A/B are connected together. Ports C/D are disconnected.
RJ45 Port not in use
6
7
IPMI port (RJ45)
8
Console Port (DB9)
6 7
ACT
Green
Off: Not connected
USB 3.0 Ports 1 & 2 (USB A)
not in use
CLI management VGA Port (DB15)
8
or Amber: Data Activity
Not is use
not in use
