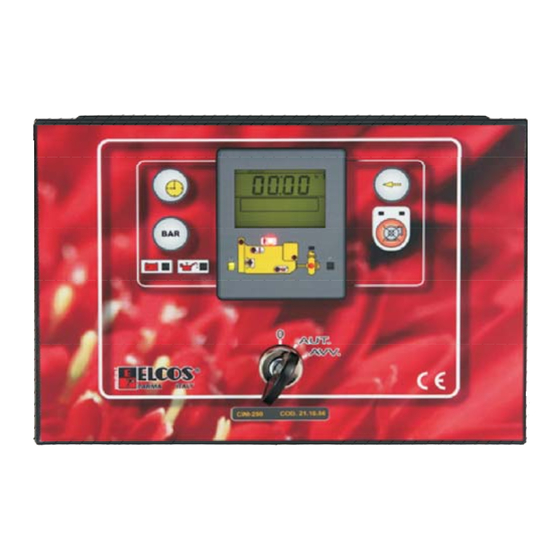

UNIT FOR CONTROL AND PROTECTION
OF IRRIGATION MOTOR PUMPSET
MOUNTING AT PANEL
PROTECT
motor pump sets by stopping them
in the event of:
• low oil pressure
• over-temperature
• belt breakage
• minimum fuel level
• low coolant level
• low pump water pressure
• pump water overpressure
• A1 available
GB CIM-250
CIM-250
TYPE
MADE TO:
PARMA
Tel. +39 0521/772021
E-mail: info@elcos.it - HTTP://www.elcos.it
• By simply starting, it automatically
controls the motor pump
• Pump water electronic pressure gauge
• Digital pump water pressure gauge
• Assembly also on the machine
and in the open air.
DISPLAY
on the panel the functions of:
• hour-meter
• oil pressure gauge
• water or oil thermometer
• tachometer
• pump water pressure gauge
• timer
• fuel level gauge
• pump protection exclusion
• battery and oil lights
• protections intervention
• emergency stop
®
ITALY
Fax +39 0521/270218
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIM-250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ELCOS CIM-250

  • Page 1 • fuel level gauge • pump water overpressure • pump protection exclusion • A1 available • battery and oil lights • protections intervention • emergency stop ® PARMA ITALY Tel. +39 0521/772021 Fax +39 0521/270218 E-mail: info@elcos.it - HTTP://www.elcos.it GB CIM-250...
  • Page 2 - RESTORE PROTECTIONS, CANCEL PUMP PROTECTION EXCLUSION AND TIMER, DEACTIVATE INSTRUMENTS. AUT. - CONTROL UNIT SUPPLY - TURNS ALL THE LIGHTS ON FOR 2 SECONDS ( EFFICIENCY CHECK ) - PRESSURE SWITCH ADJUSTING (SEE PAGE 3) AVV. - MOTOR PUMP START UP GB CIM-250...
  • Page 3 - BATTERY CHARGE ALTERNATOR - OVERTEMPERATURE (ALTERNATOR BELT BREAKAGE) SWITCH - FUEL LEVEL SWITCH - Fuel reserve flashing signal: 20% fuel reserve (T) (WITHOUT ENGINE STOP) - Signal always on: stop for minimum fuel level (W) - PROBE FOR COOLANT LEVEL GB CIM-250...
  • Page 4 5 seconds and simultaneously press revolution counter) increase decrease until the correct reading appears on the display. Release the buttons and wait until OK appears on the display. GB CIM-250...
  • Page 5 B AT T E RY C H A R G E switch 1 to ON switch 1 to OFF ALTERNATORS. ITALIANO ENGLISH To diode bridge (BOSCH, MARELLI, (inside alternator) LUCAS, ECC...) Press to select Press and wait for the desired language OK to be written GB CIM-250...
  • Page 6 TRANSMITTERS FITTED ON ENGINE - PRESSURE GAUGE - Engine oil pressure ON REQUEST - THERMOMETER - Engine oil and water temperature - TACHOMETER - Speed of motor pump - PRESSURE GAUGE - Pump water pressure - INDICATOR - Fuel level percentage GB CIM-250...
  • Page 7 UNLESS WE MAKE A WRITTEN DECLARATION STATING THE CONTRARY, THIS CONTROL UNIT IS NOT SUITABLE FOR USE AS A CRITICAL COMPONENT IN EQUIPMENT OR PLANTS RESPONSIBLE FOR KEEPING PERSONS OR OTHER LIVING BEINGS ALIVE YOUR ELECTRICAL TECHNICIAN CAN ASK US ANYTHING ABOUT THIS CONTROL UNIT BY TELEPHONING ONE OF OUR TECHNICIANS GB CIM-250...
  • Page 8 - NUTS KIT CODE 40179906 CONFORMITY DECLARATION The company Elcos s.r.l. assumes full responsibility for declaring that the control unit: CIM-250 Type installed and used in the ways and for the purposes described in the user instruction manual complies with...
