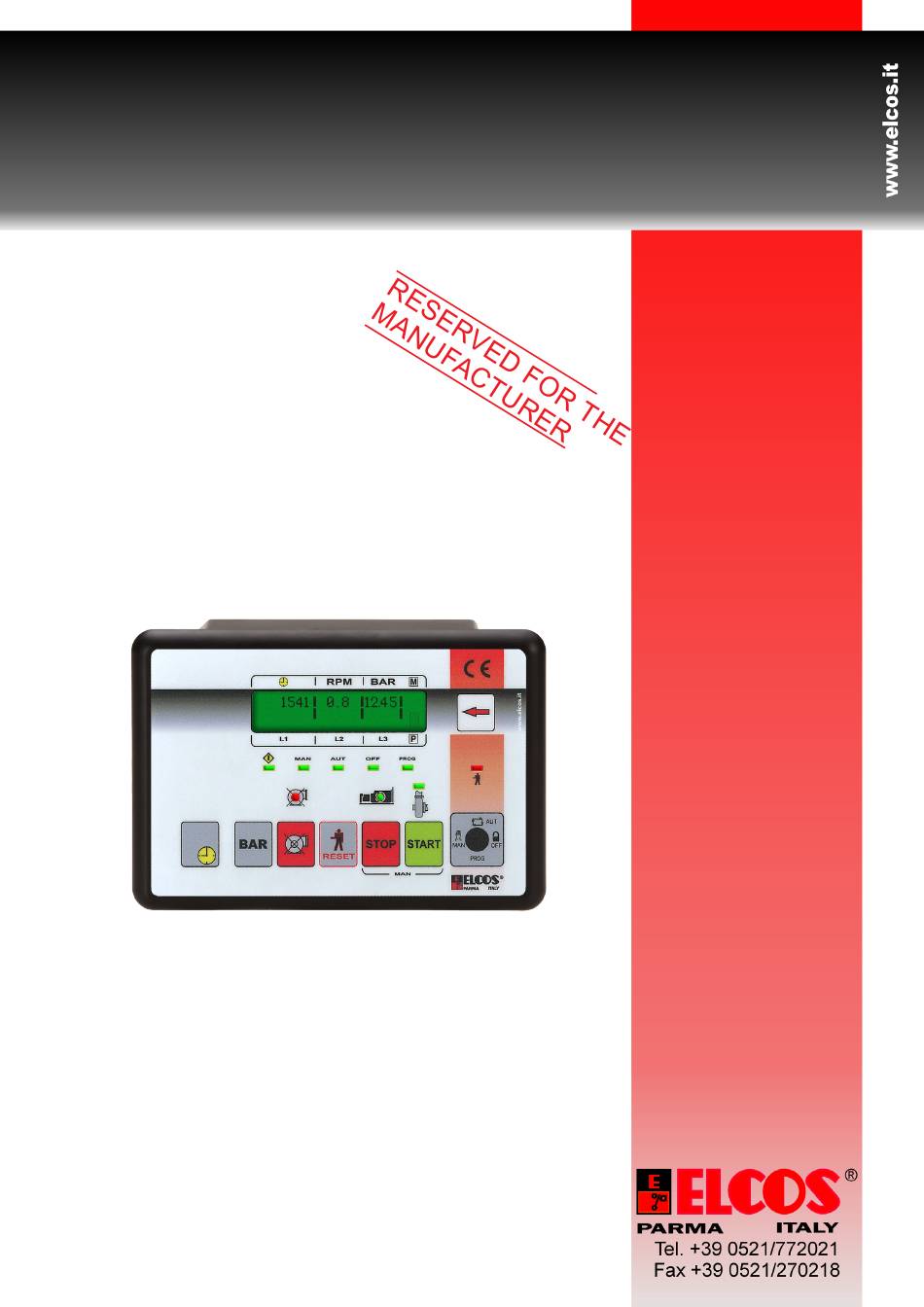

- Page 1 COMBINED CONTROL UNIT FOR CONTROLLING AN INDEPENDENT GENERATOR SET AND IRRIGATION MOTOR PUMP TYPE CEM-120 TECHNICAL PROGRAMMING OPERATIONS MANUAL ELCOS SRL - Parma - CEM-120 – PROG – EN...
-
Page 2: Replacing The Control Unit
After 30 seconds of inactivity, the control unit enters STAND BY and completely switches off all the notifications (led and display). To exit STAND BY, press one of the buttons. ELCOS SRL - Parma - CEM-120 – PROG – EN... - Page 3 Faults that have occurred. Complete reset of the log . MOD BUS GSM GSM connection. Card address. Programming of telephone numbers. Baudrate. Code for resetting PARAMETERS cyclic maintenance by mobile phone, Fault SMS.. ELCOS SRL - Parma - CEM-120 – PROG – EN...
-
Page 4: Choice Of Language
CHOICE OF LANGUAGE. The preset language is Italian, the selectable languages are: ENGLISH-FRENCH-GERMAN- SPAIN-PORTUGUESE. ENGLISH SELECT ENGLISH LANGUAGE Press to Press and wait for display. the system to write PROGRAMMED Press to select the language. ELCOS SRL - Parma - CEM-120 – PROG – EN... - Page 5 Press to choose. PROGRAMMED. SINGLE-PHASE Factory setting THREE-PHASE G.S. THREE-PHASE VOLTAGE Press and wait for Press to the system to write display. Press to choose. PROGRAMMED. ELCOS SRL - Parma - CEM-120 – PROG – EN...
- Page 6 CHOICE OF UNIT OF MEASUREMENT °C Press when the arrow is next Press to Press and wait for to the unit of measurement display. the system to write to be changed. PROGRAMMED. ELCOS SRL - Parma - CEM-120 – PROG – EN...
- Page 7 SIGNALS COMING FROM THE GENERATOR • ADJUSTMENT OF RUNNING ENGINE THRESHOLD no adjustment • TACHOMETER ADJUSTMENT see page 5 ADJUSTMENT OF TACHOMETER WITH GENERATOR FREQUENCY • OVERFREQUENCY ADJUSTMENT - see page 12 GENERATOR OVERFREQUENCY ELCOS SRL - Parma - CEM-120 – PROG – EN...
-
Page 8: Preventive Maintenance
When you change the value of the hour meter the preventive maintenance programming must be done again. MODIFY 1 2 3 4 5h 1 2 3 4 5h HOUR METER Press to To reset press simultaneously display. and wait for programmed to be written. ELCOS SRL - Parma - CEM-120 – PROG – EN... - Page 9 STOPPING TIME. Stopping system time after the engine running signal has disappeared. STOPPING 20 s Time TIME 20 s Press and wait for Decreases Increases Press to the system to write display. Press to change the time PROGRAMMED. ELCOS SRL - Parma - CEM-120 – PROG – EN...
- Page 10 After the increase or lowering of pump water pressure and when this time has expired, the stopping process begins. INTERV. TIME OF Delay WATER PRES.SW in intervention Decreases Increases Press to Press and wait for display. the system to write Press to change the time PROGRAMMED. ELCOS SRL - Parma - CEM-120 – PROG – EN...
- Page 11 335V three- 1 to 10 WITH The generator voltage remains lower than VOLTAGE phase. STOP the programmed threshold for the entire THRESH- 193V intervention delay time. OLD IS single-phase EXCEEDED ELCOS SRL - Parma - CEM-120 – PROG – EN...
- Page 12 With Stop Without Stop NO STOP Press and wait for STOP Press to Press when the arrow is the system to write display. next to the parameter to be modified. PROGRAMMED. ELCOS SRL - Parma - CEM-120 – PROG – EN...
- Page 13 THE CONTROL UNIT IS PROGRAMMED FOR NORMAL REVERSED RADIATOR NORMAL OPERATION OPERATION OPERATION RADIATOR CORE IN THE ABSENCE CORE OF LIQUID, IN THE ABSENCE OF LIQUID, REMOVESTHE ACTIVATESTHE GROUND SIGNAL GROUND SIGNAL ELCOS SRL - Parma - CEM-120 – PROG – EN...
- Page 14 Press to Press and wait for Without stop With stop display. the system to write STOP NO STOP PROGRAMMED. Press when the arrow is next to the parameter to be modified ELCOS SRL - Parma - CEM-120 – PROG – EN...
- Page 15 2.0 BAR 3.5 BAR Press and wait for Press to Decreases Increases the system to write display. PROGRAMMED. Press when the arrow is next to the parameter to be modified ELCOS SRL - Parma - CEM-120 – PROG – EN...
- Page 16 Factory setting TTAO/403 . VDO/29/10 LOMBARDINI PROGRAMMABLE PROGRAMM. PRESSURE TRANSMITTER Press and wait for the system to write PROGRAMMED TABLE OF ALREADY PROGRAMMED PRESSURE TRANSMITTERS TPO/403 VDO/29/10 Fitted on engine: Lombardini ELCOS SRL - Parma - CEM-120 – PROG – EN...
- Page 17 4 values). If just one value is programmed or non-monotone values are programmed, the fault is detected. OIL TEMP. TABLE OIL TEMP. TABLE NOT CORRECT NOT CORRECT ELCOS SRL - Parma - CEM-120 – PROG – EN...
- Page 18 - - - OHM Press briefly Press and hold - - - OHM to display and wait for the the programming Press to Decreases Increases system to write carried out. display. PROGRAMMED. ELCOS SRL - Parma - CEM-120 – PROG – EN...
-
Page 19: Fault Log
2014 17:30 LOG? Date Time LOW OIL Press to Press to display. PRESSURE display. To reset press simultaneously and Decreases Increases wait for the system to write PROGRAMMED. ELCOS SRL - Parma - CEM-120 – PROG – EN... - Page 20 FAULT SMS. Number of times a fault SMS will be sent in the event that no “OK” reply is received : 0 to 10. Factory programming setting FAULT Press to Press and wait for display. the system to write Press to choose. PROGRAMMED. ELCOS SRL - Parma - CEM-120 – PROG – EN...
